Attributes
TAIYO YUDENBrand Name
MSAST168SB7105KTNA01 TMK107B7105KA-TModel Number

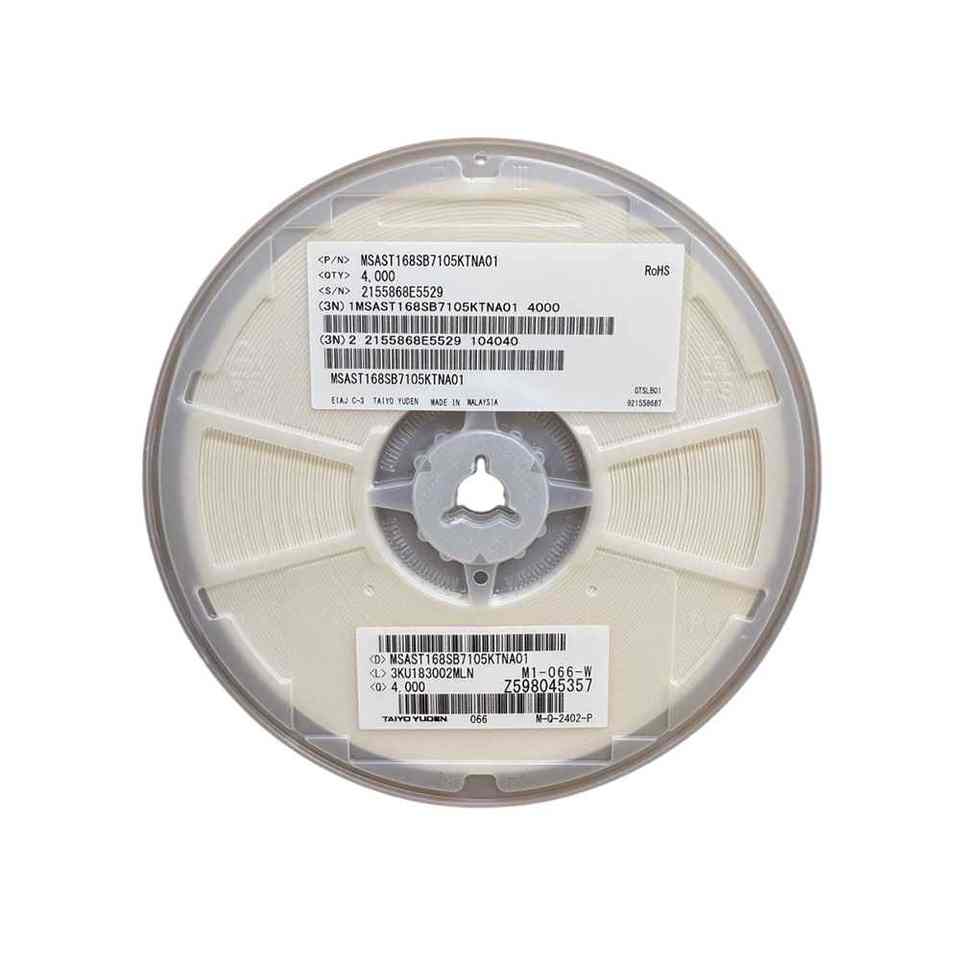

4000pcs in one rollPackaging Type
by RollManufacturing Date Code

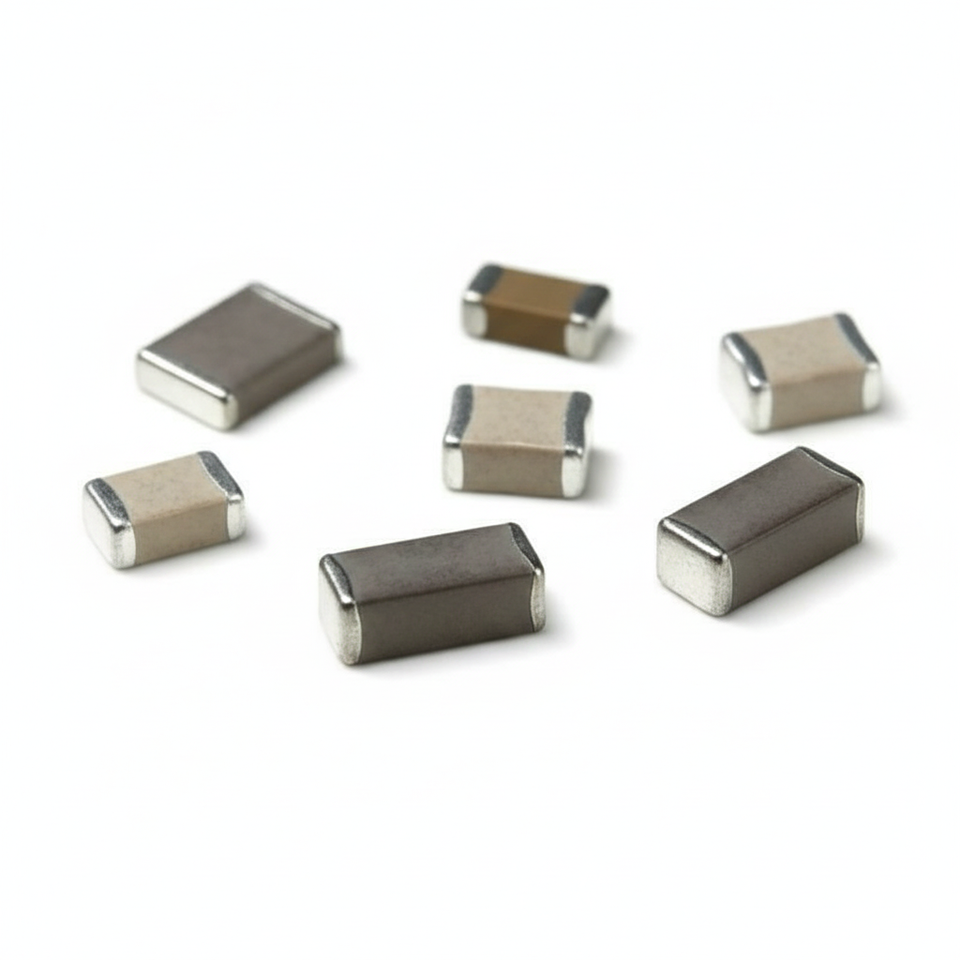

Multilayer Ceramic CapacitorsCapacitance
Pulau Pinang, MalaysiaPlace of Origin

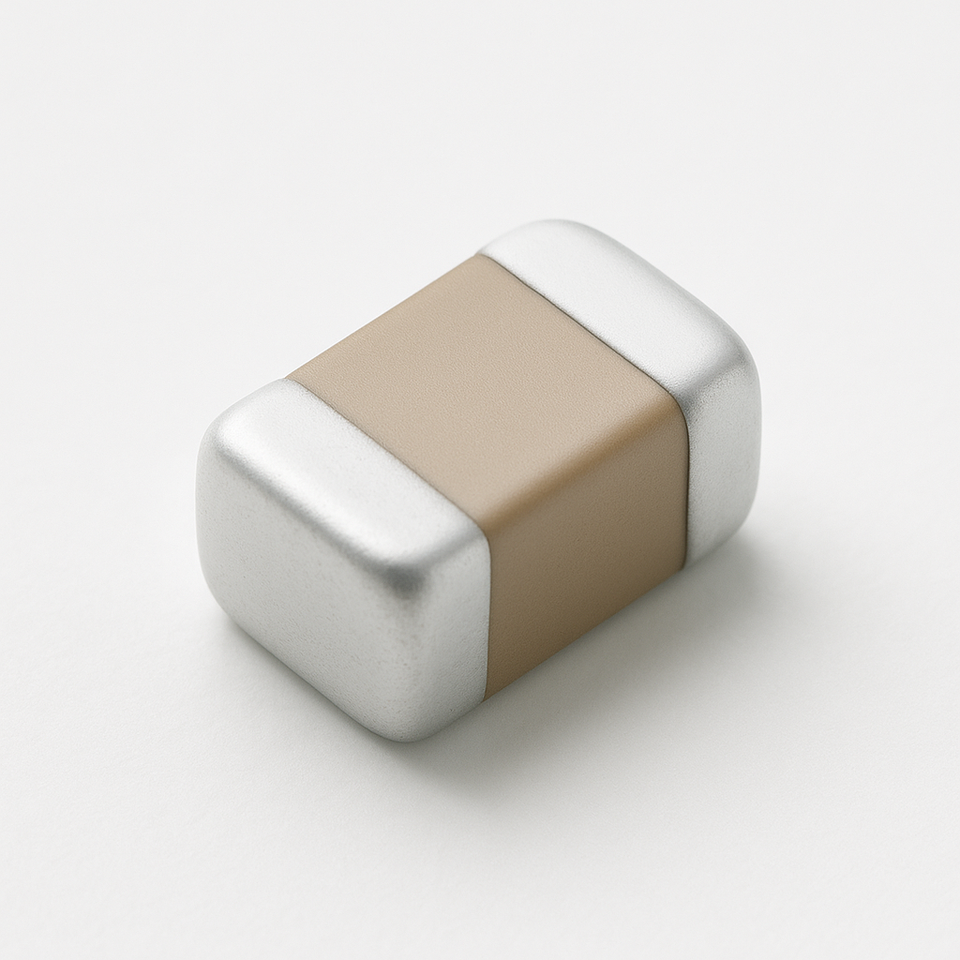

Description:SMT 0603 X7R 1UF 25V ±10% 4K/R

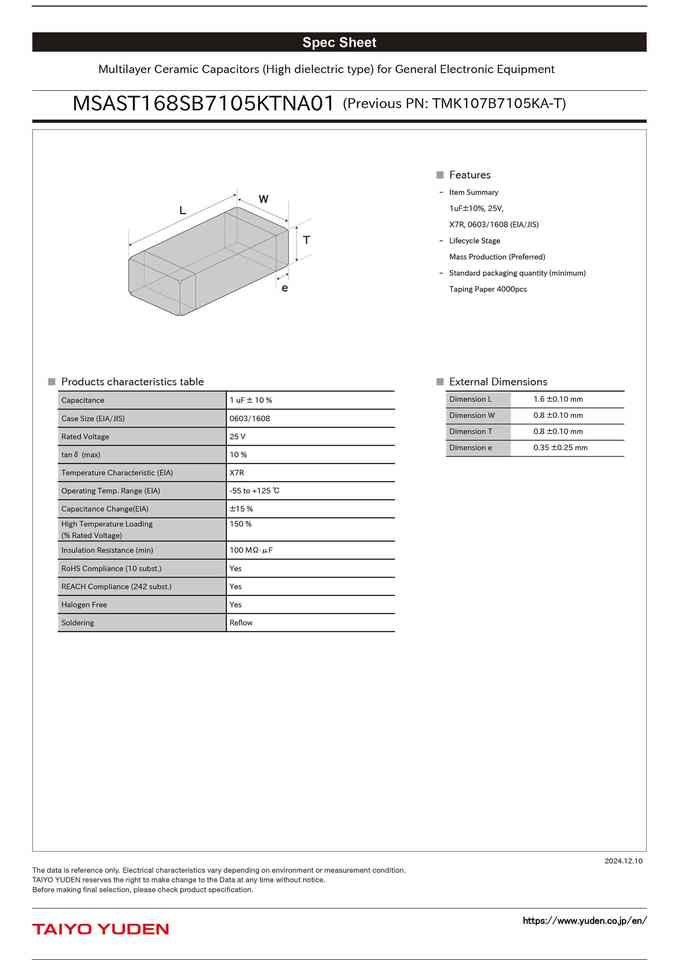

Specification:High Dielectric Type Multilayer Ceramic Capacitors
Application:General Electronic Equipment
Package / Case:SMD
Series:Multilayer Ceramic Capacitors
Features:Monolithic structure provides higher reliability
Size / Dimension:0603 / 1608
Operating Temperature:-55°C to +125°C
Temperature Coefficient:B7
Tolerance:±10%
Lead Style:SMD
Voltage - Breakdown:25V
Thickness (Max):0.9mm
Sample Support:Support 100pcs Free Samples
Temperature Characteristic (EIA):X7R
Application Fields 1:Communication Equipment
Application Fields 2:General Electronic Equipment
Application Fields 3:General Digital Circuits
Application Fields 4:Power Supply Bypass Capacitors
Application Fields 5:LCD Modules
Application Fields 6:LCD Drive Voltage Lines
Application Fields 7:High Supply Voltage LSI, IC, and OP-Amps
Application Fields 8:Smoothing Capacitors
Application Fields 9:DC-DC Converters (Input and Output)
