Attributes
380Vvoltage
KNDcnc control system
Medium Dutymachining capacity
2number of axes
Singleno. of spindles
8tool post stations
max. length of workpiece (mm):450
key selling points:High-Accuracy
repeatability (x/y/z) (mm):0.005
positioning accuracy (mm):0.01
warranty:1 Year
type:Horizontal
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):200
travel (x axis)(mm):280
travel (z axis)(mm):525
place of origin:Shandong, China
width of bed (mm):35 mm
dimension(l*w*h):2697*1795*1860mm
brand name:Rowdai
model number:TCK50
weight:3600
range of spindle speed:35 - 3000 r.p.m
cutting torque:48
applacation:metal working
brand:Rowdai
voltage:380v
tail stock stroke:480mm
spindle taper of tail stock:5#
Max.load:discs 200kg shaft 500kg
tool size:25mm
Maximum bar diameter:50mm
chuck:10

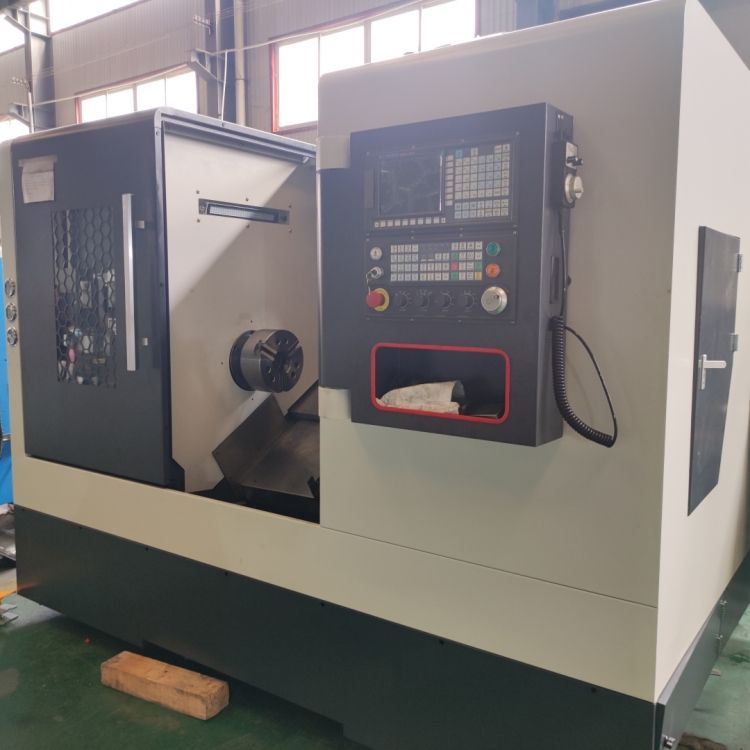

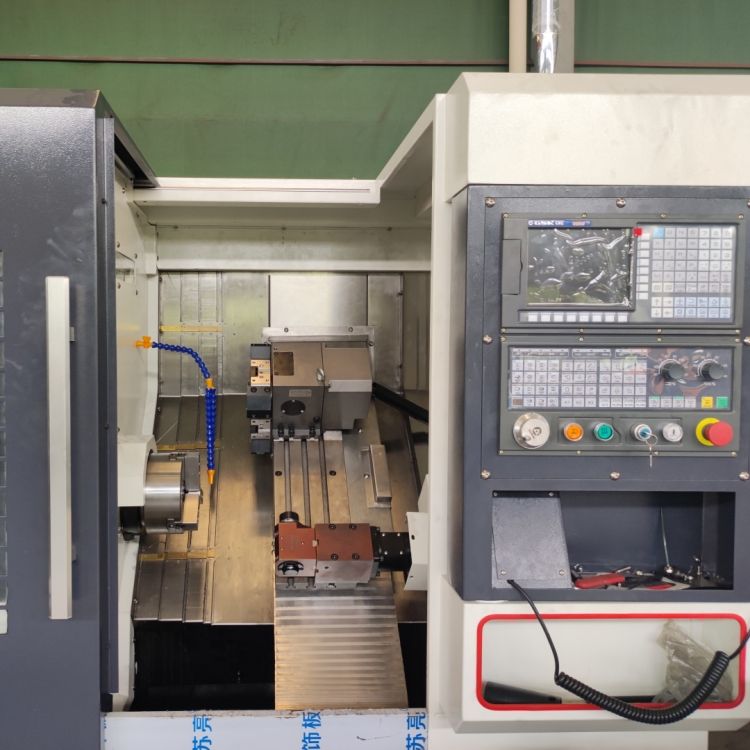

Keyword:CNC horizontal slant bed lathe
