Attributes
220 VVoltage
50WPower(W)
Motor, Dispensing Valvecore components
1 Yearwarranty
Providedmachinery test report
Providedvideo outgoing-inspection
place of origin:Jiangsu, China
Weight (kg):20
Number of Motor Control Axes:3
Timed Dispensing:0.01-99s
Minimum Dispensing Volume:0.01ml
Dispensing Nozzle:216 Hammer Type High Speed Dispensing Valve
Applicable Adhesives:Epoxy Resin, UV Glue, Silicone, Ink, Red Glue, Yellow Glue

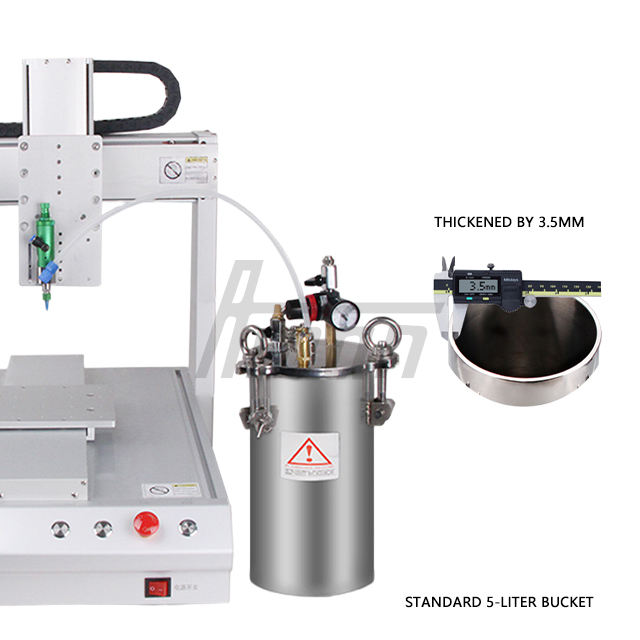

Adhesive Storage Tank:304 Stainless Steel Pressure Tank
Tank Capacity:Standard 5L

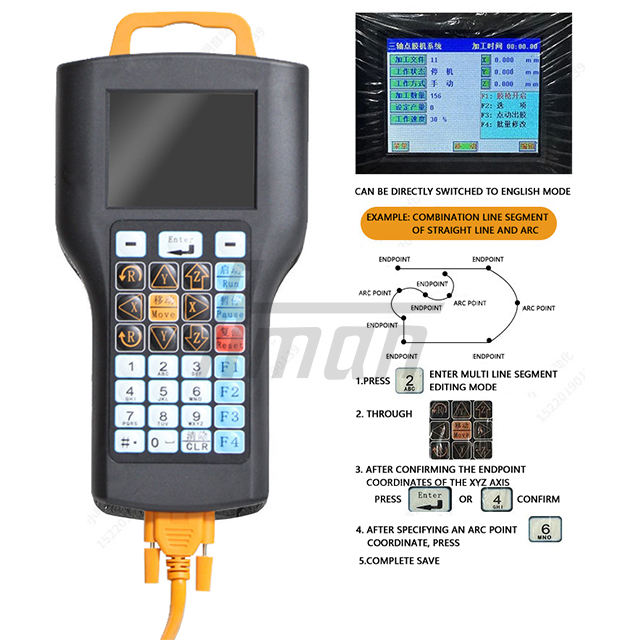

Control Method:Handheld Controller, Control Unit
Programming Method:Teaching Programming or Graphic Import
Stored Documents:999 Dispensing Processes
Movement Speed:0-500mm/sec
3-Axis Travel:X-Axis 300, Y-Axis 300, Z-Axis 100
3-Axis Load Capacity:XYZ Axis Load Capacity ≥5KG
Applicable Air Pressure:0.05-0.8Mpa
Dispensing Process:Dot, Line, Arc, Curve, Polyline, Spiral & Irregular Paths
Repeatability Accuracy:±0.02mm/Axis
Transmission Mode:Synchronous Belt, Guide Rail
Working Environment Humidity:5-400℃
Working Environment Temperature:20-90%
