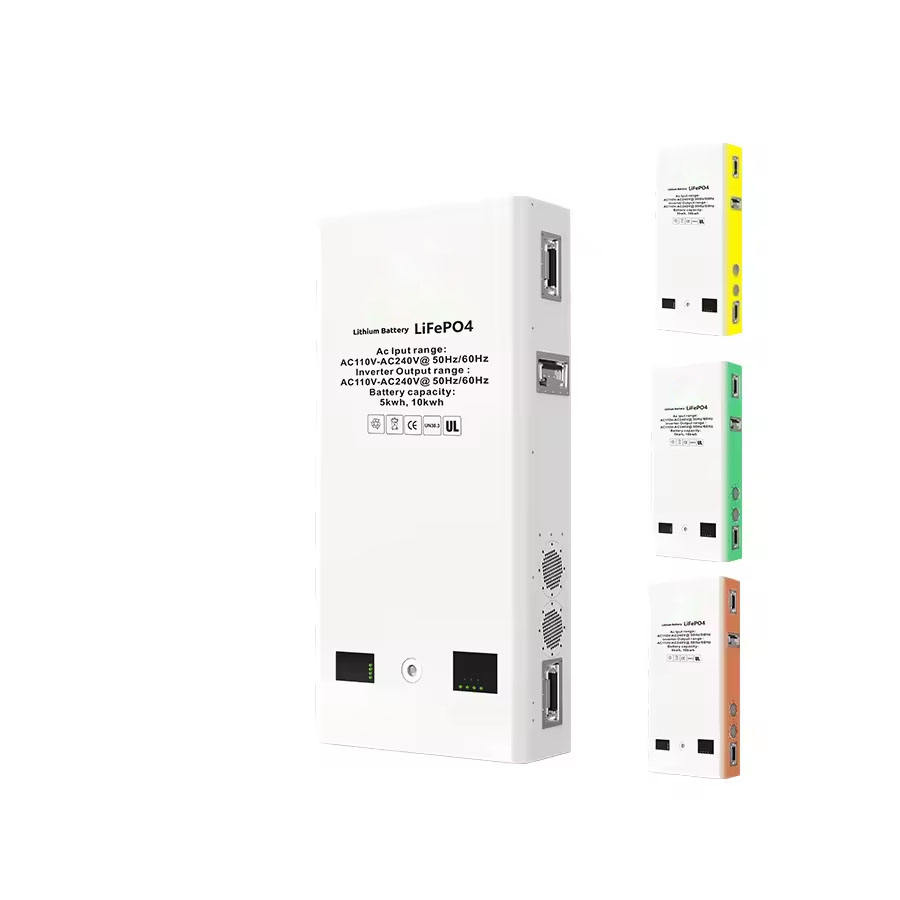

YUNFAN Factory Direct All In One 5.12KWh LiFePO4 Solar Storage System with Built-in 5KW Inverter

No reviews yet
$782
10-99 units
$732
≥100 units
Sample price: $785
Select now

Color

white

Nominal Voltage

51.2V

Nominal Capacity

100 Ah

Key attributes

Application

Solar Energy Storage Systems

Max Load Quantity(cells)

16

Cycle Life

6000 cycles

Model Number

48100WPI

Operating Temperature(℃)

-5℃ ~ 60℃

Place of Origin

Guangdong, China

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Application
Solar Energy Storage Systems
Max Load Quantity(cells)
16
Cycle Life
6000 cycles
Model Number
48100WPI
Operating Temperature(℃)
-5℃ ~ 60℃
Place of Origin
Guangdong, China
Cathode Materials
LiFePO4
Brand Name
Yunfan
Dimension (L*W*H)
940mm* 480mm*195mm
Weight
73KG
Battery Type
LiFePO4 (Lithium Iron Phosphate)
Battery Nominal Voltage
51.2V
Battery Nominal Capacity
100Ah
Battery Rated Energy
5120Wh / 5.12KWh
Battery Charge Cut-off Voltage
58.4V
Battery Recommended Charge Current
20A
Battery Max. Continuous Charge Current
50A
Battery Discharge Cut-off Voltage
43.2V
Inverter Rated Power
5000VA/5000W
Inverter Surge Power
10000VA
Inverter Parallel Capability
Max 6 units in inverter mode; 26 units can share common powerwall
Inverter Monitoring Option
WiFi or GPRS
Inverter Output Voltage
220-230-240VAC
Inverter Peak Conversion Efficiency
93%
Inverter Transfer Time
10ms (For Personal Computers); 20ms (For Home Appliances)
Inverter Output Waveform
Pure Sine Wave
Max. PV Array Power
6000W
Max. Solar Charge Current
100A
Max. AC Charge Current
80A
Max. Total Charge Current
100A
Operating Frequency Range
50Hz/60Hz (Auto-sensing)
Max. PV Array Open Circuit Voltage
450VDC
MPPT Operating Voltage Range
120-430VDC
Product Shell Material
Sheet Metal Chassis
Product Installation Method
Wall Mounted

Packaging and delivery

Selling Units
Single item
Single package size
60X30X100 cm
Single gross weight
90.0 kg
