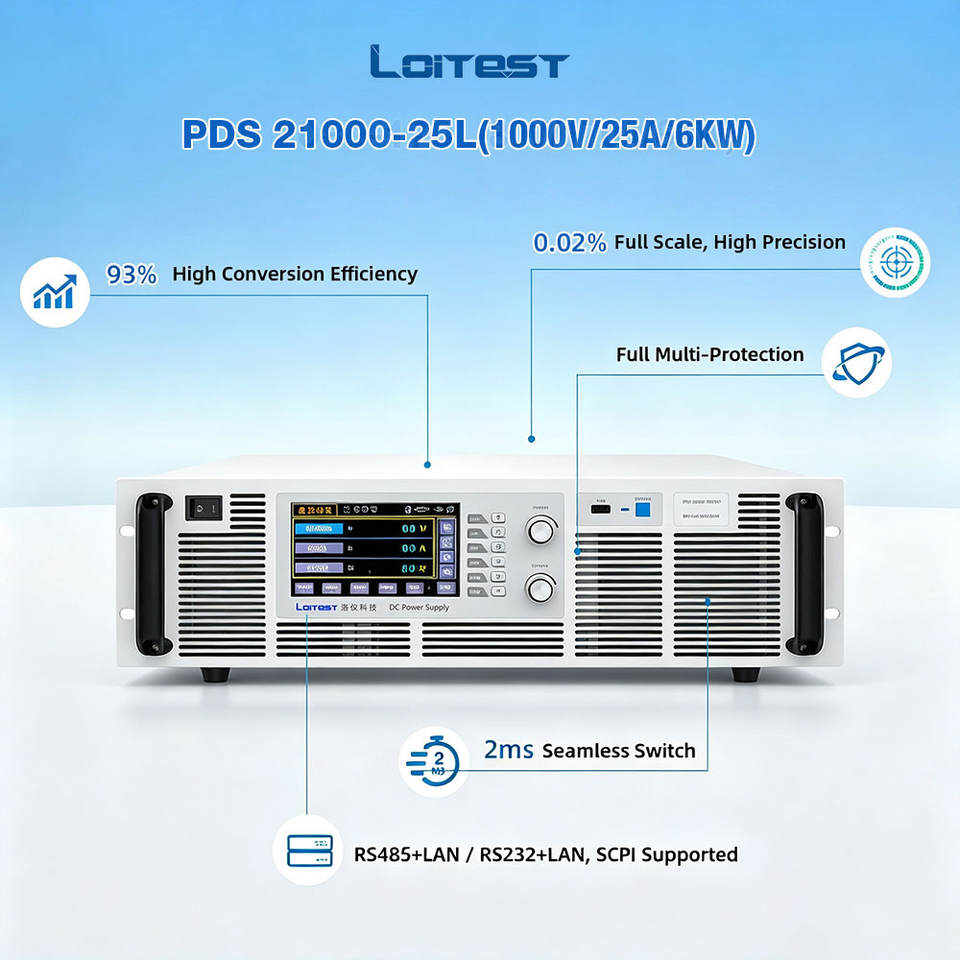

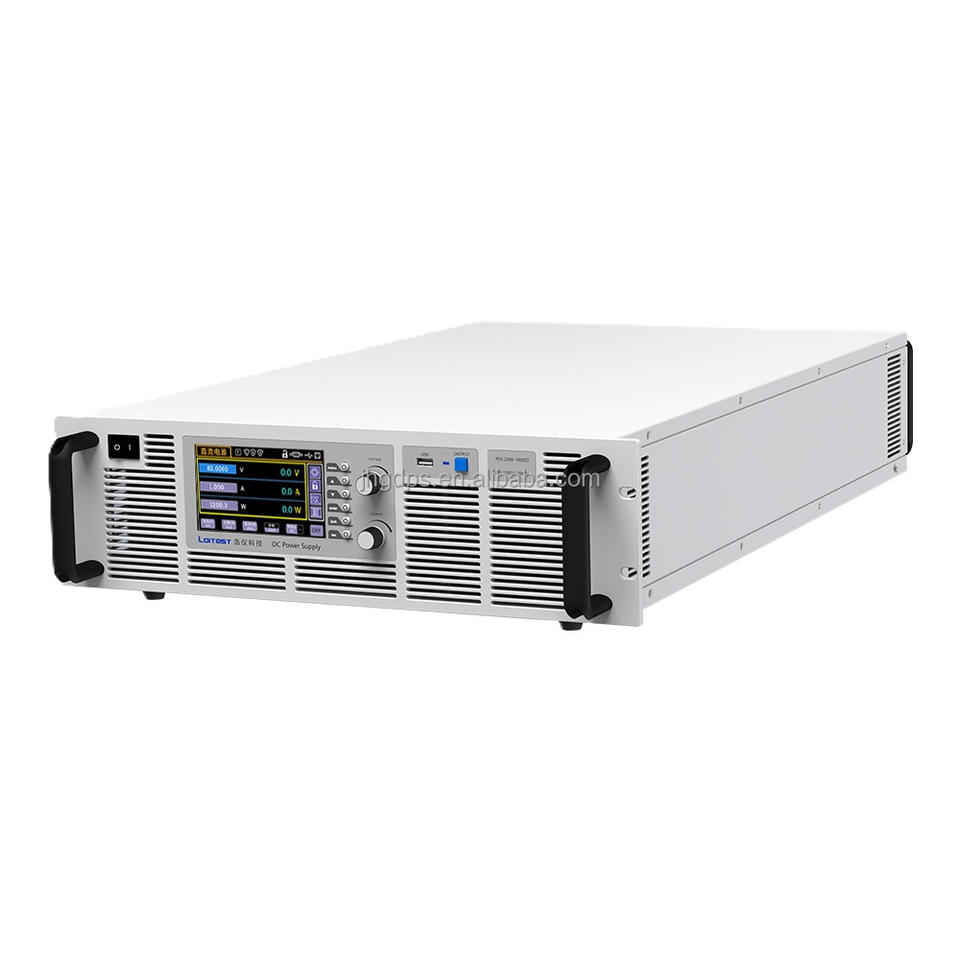

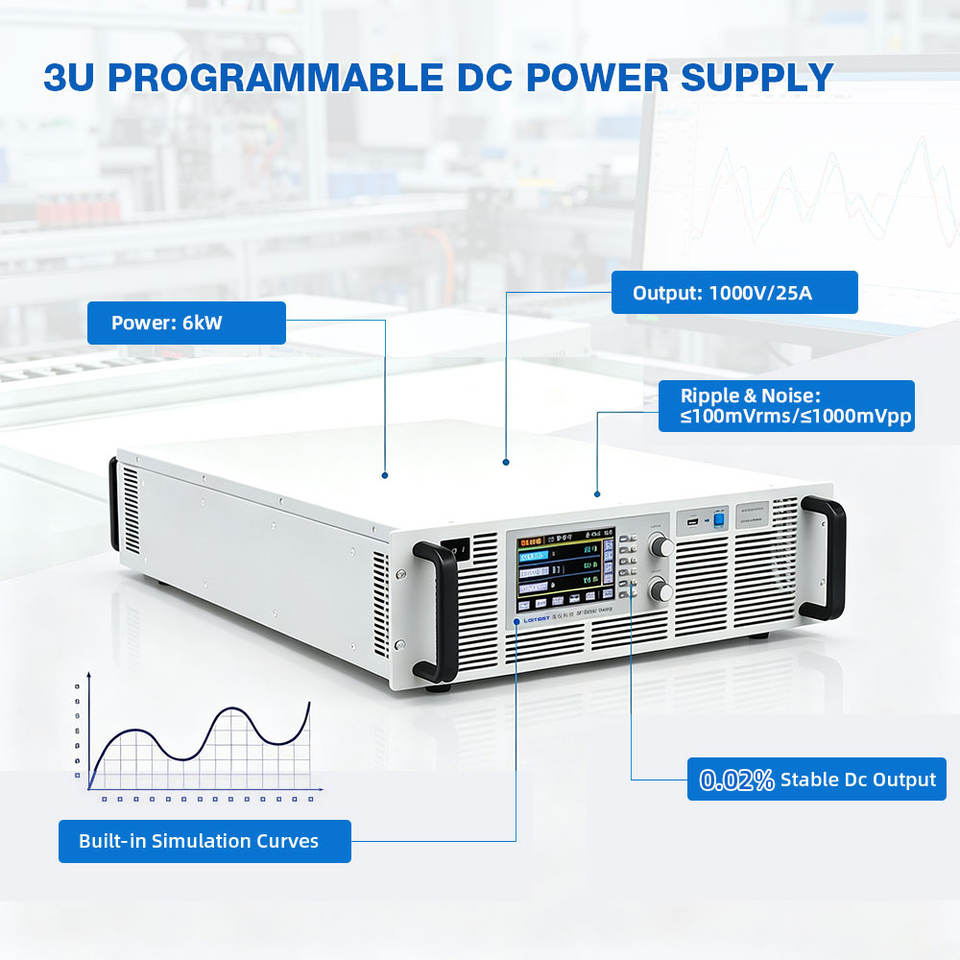

Wide Range High Voltage Programmable Power Supply PDS21000-25L 1000V 25A 6KW 3U Rack Design 93% Conversion Efficiency

No reviews yet
$1,848
Minimum order quantity: 1 unit
Select now

Output Power

6kW

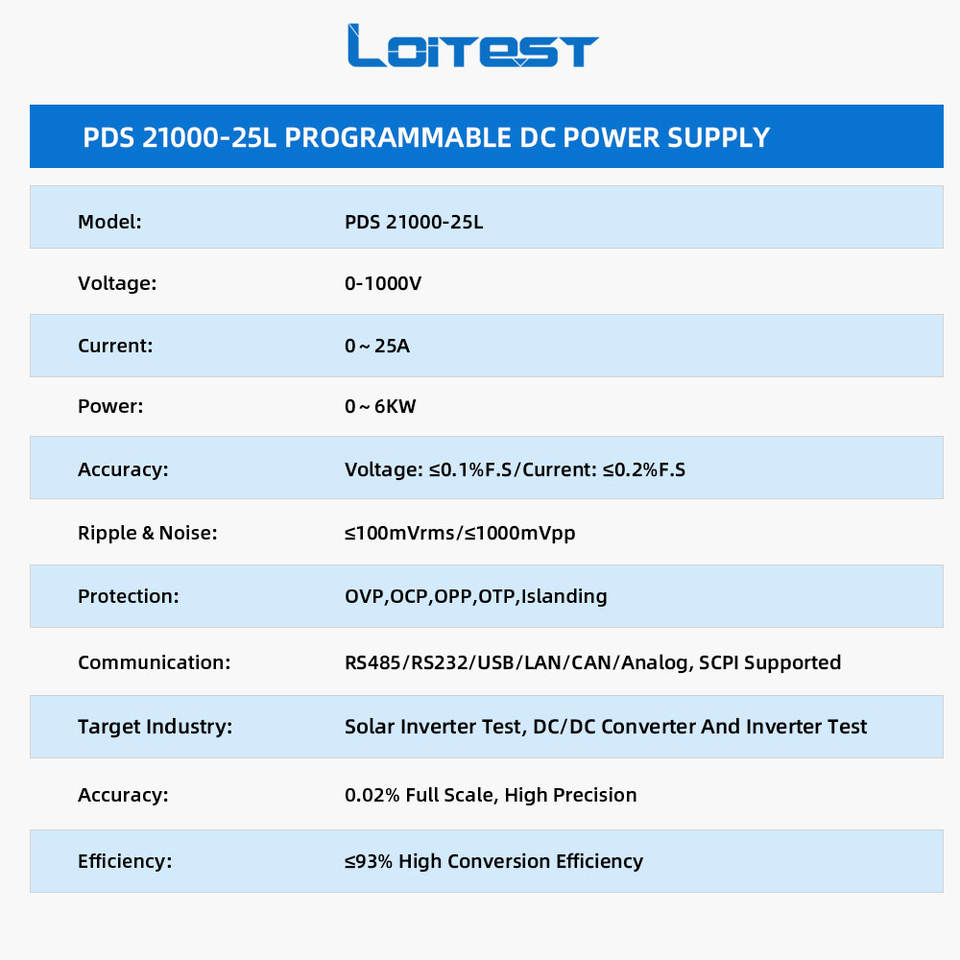

Key attributes

Input Voltage

340~480Vac/3ph, Optional 200~480Vac/3ph, 45-65Hz

Output Current

0-25A

Output Voltage

0~1000V

Place of Origin

Jiangsu, China

Application

High voltage PV, industrial test

Brand Name

Loitest

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Input Voltage
340~480Vac/3ph, Optional 200~480Vac/3ph, 45-65Hz
Output Current
0-25A
Output Voltage
0~1000V
Place of Origin
Jiangsu, China
Application
High voltage PV, industrial test
Brand Name
Loitest
Efficiency
Up to 93% High Efficiency
Model Number
PDS 21000-25L
Output Type
CV/CC/CP/Auto-Ranging
Protection
Over Power Protection, Over Temperature Protection, Overcurrent Protection, Overvoltage Protection
Type
3U Rack Mount Programmable DC Power Supply
Form Factor
3U Standard Rack Mount (482*133*735mm)
Rated Power
6000W High Power Density
Output Range
0~1000V, 0~25A,Auto Range Output
Power Efficiency
Up to 93% High Conversion Efficiency
Input Compatibility
340-480Vac Three-Phase Wide Input
Cooling System
Smart Temp-Control Fan Cooling
Control Interface
RS485/RS232/USB/LAN/CAN/Analog, SCPI
Operation Function
Master-Slave Parallel & Panel Programming
Working Environment
0-45c Operating Temperature
Protection Function
OVP/OCP/OPP/OTP Full Protection
