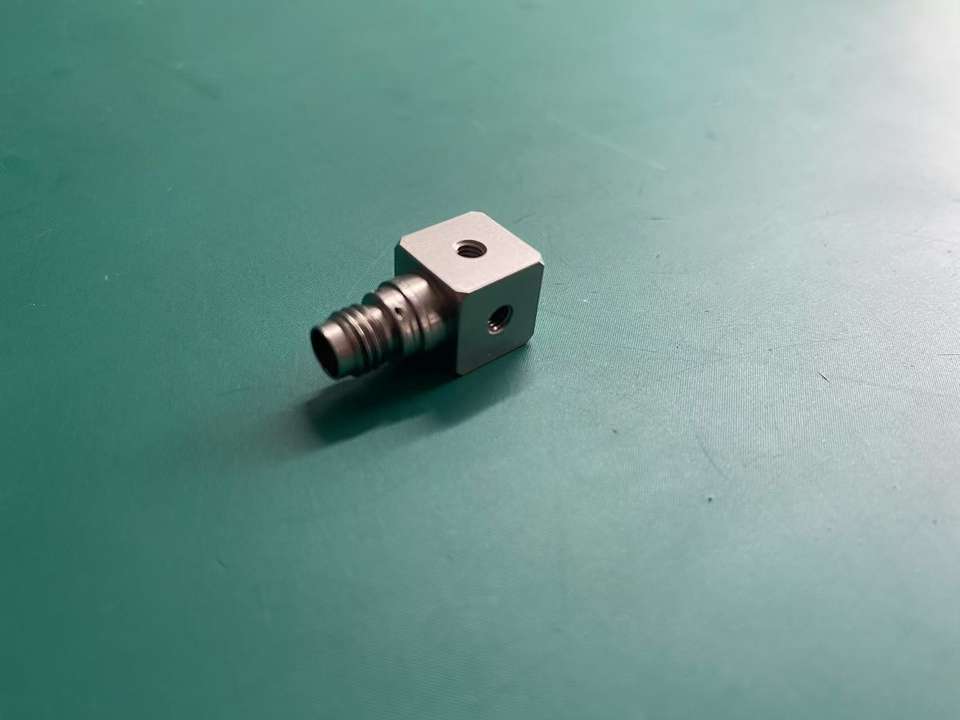

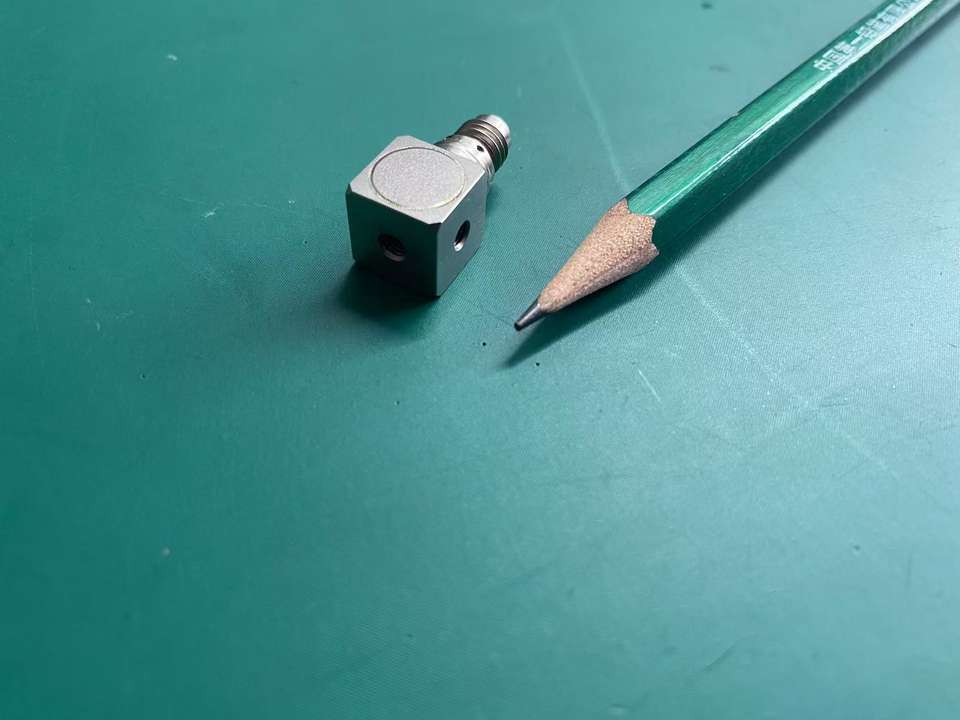

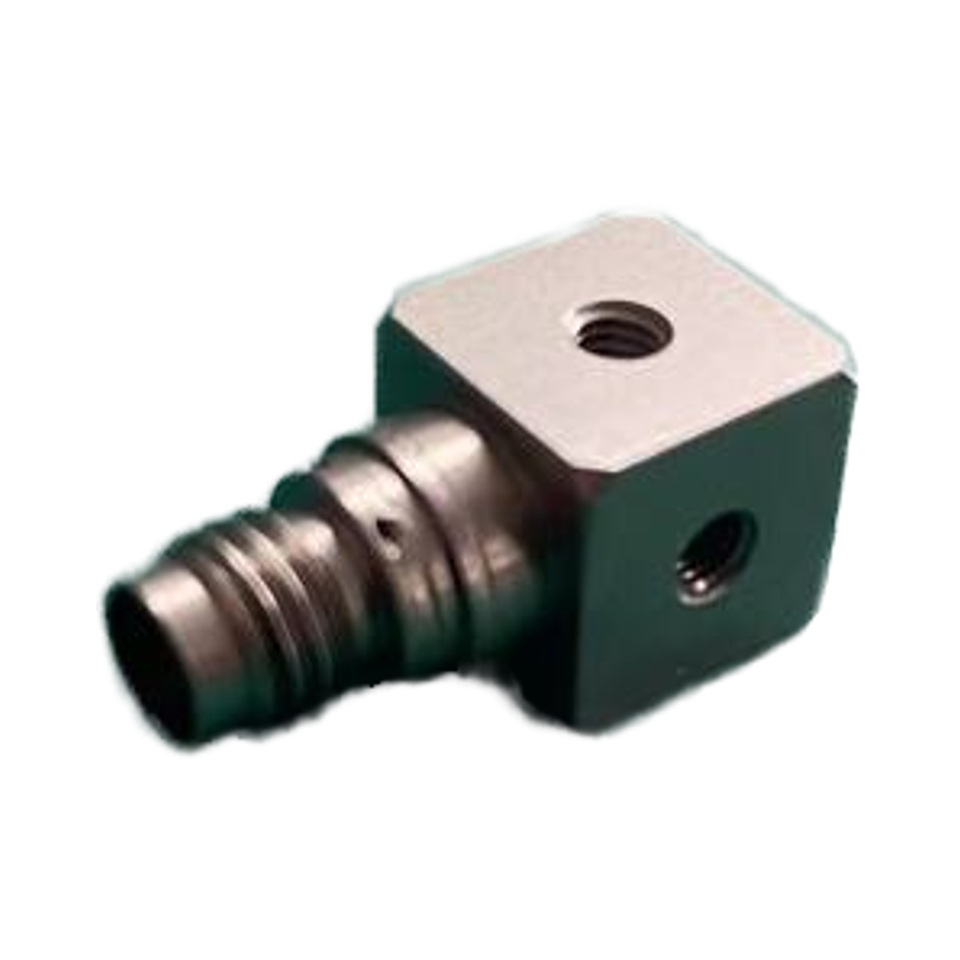

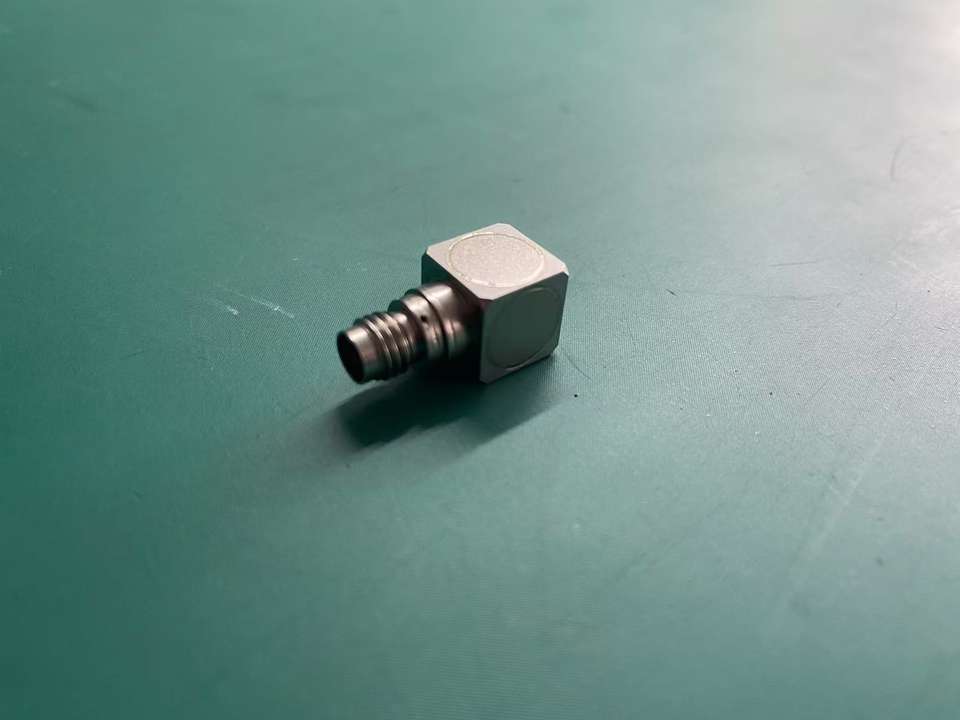

Wide Frequency Response, High-resolution Three-way Acceleration Sensor Vibration Transducer Three-axis Accelerometer

No reviews yet
$880
Minimum order quantity: 1 piece
Select now

Specification

ZT-E142-M500

Key attributes

Mounting Type

Glued/M3 screw hole

Manufacturer Part Number

ZT-E142-M500

Brand Name

Zhenzhong Test

Usage

acceleration transducer

Output

2-20mA

Description

other

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Mounting Type
Glued/M3 screw hole
Manufacturer Part Number
ZT-E142-M500
Brand Name
Zhenzhong Test
Usage
acceleration transducer
Output
2-20mA
Description
other
Place of Origin
Jiangsu, China
Series
acceleration transducer
Theory
Other principles
Brand
IEPE type acceleration three-way sensor
Voltage - Supply
18~30 VDC
Operating Temperature
-50 ~ 120 .C
Current - Supply (Max)
not have
Packaging
Sensor specific protective box
Frequency
0.5-20k
Current
2~20 mA
Size
Three way acceleration sensor
Size / Dimension
10.2mm x 10.2mm x 10.2mm
Measuring Range
5000 m/spk
Interface

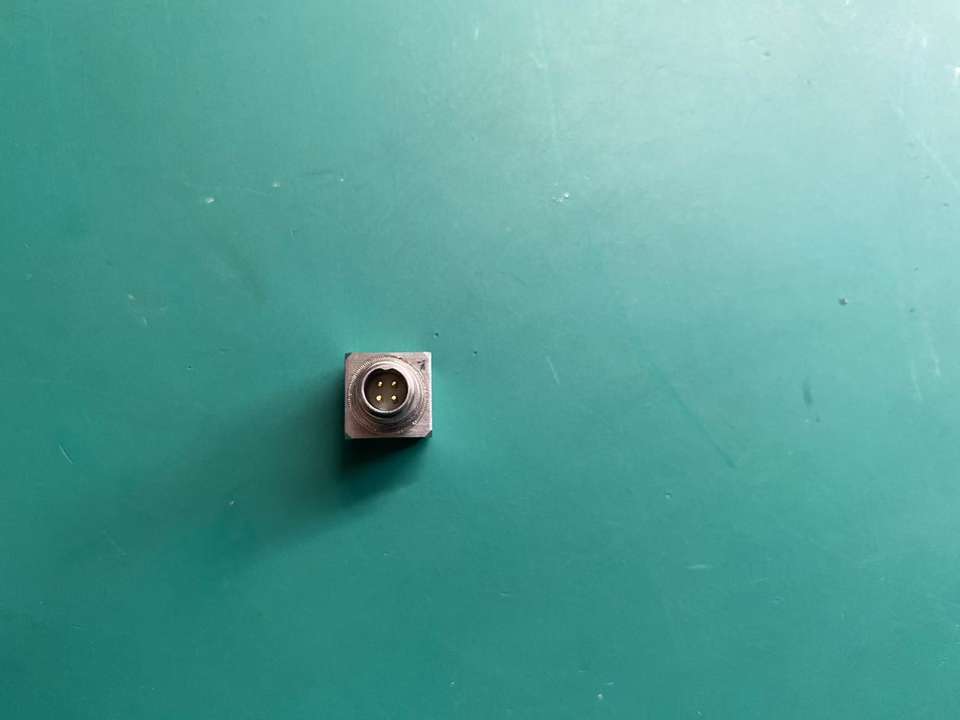

Side 1/4-28 four-pin socket
Sensing Range
0.5-20k
Acceleration Range
50000g
Sensitivity (mV/g)
0.1
Current Rating - DC
not have
sensitivity 10%
1 mV/(m/s)
Measuring range
5000 m/spk
Frequency range (X/Y/Z) 3dB
0.5~20 kHz
Output impedance
≤ 100
DC bias voltage
10 2VDC
Sensitive elements
Piezoelectric ceramics
Structural form
shear
Housing material
Titanium alloy
Sealed form
Laser welding
