certified
Attributes
0.5 mmWriting width
Shandong, Chinaplace of origin
Newcondition
4000mm*3000mm*8000mmdimension(l*w*h)
99.99%Filter Efficiency
Filter BagFilter Type
Main Inlet Diameter:DN600
Material:304 Stainless Steel, Carbon Steel, Mild Steel/Ss304/Ss316, Customized
Maximum Air Flow:30,000 m³/h
Maximum Sound Rating:<85 dB(A)
minimum particle size:0.1 μm
Number Of Adaptor Inlets:1, 2, 3
Phase:Three Phase
Power:5.5 kW
Tank Size:100L
Timer Setting:Customized according to the working conditions
Upper Filter Type:Top pulse dust cleaning
Voltage:380V / 220V
warranty:1 Year
weight:8000

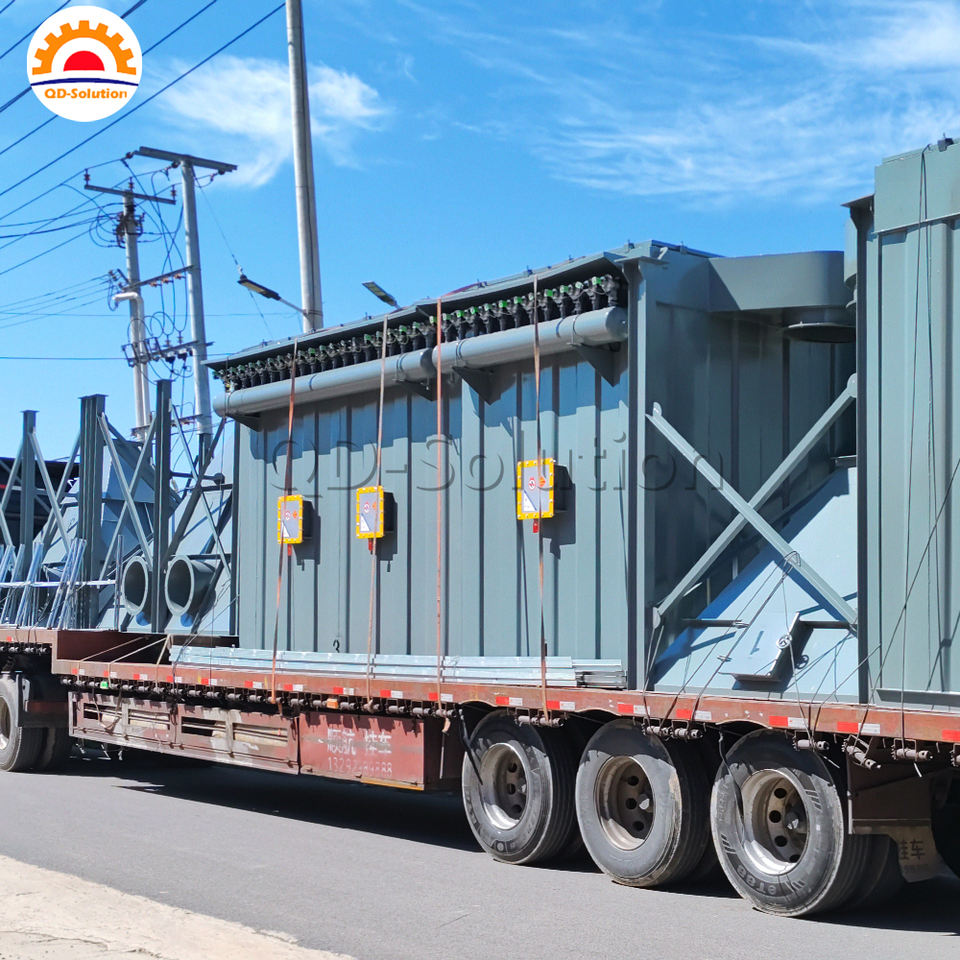

Name:Pulse Jet Baghouse Dust Collector
Filter Bag Specification:PPS, PTFE membrane. 500-600 g/m² for long life.
System Pressure Drop:Typically 800-1500 Pa. Low, stable, energy-saving.
Industry Application:Cement, steel, woodworking. For dry, <130°C dust.
Cleaning Mechanism:Online pulse-jet cleaning. No downtime required.
Guaranteed Emission:≤10 mg/m³. Meets strict environmental standards.
Explosion Protection:Optional vents, isolation valves, anti-static bags.
Installation Support:Professional guidance, commissioning, and service.
Control System:Full auto PLC. Remote monitoring & fault alarms.
Operating Cost:Low long-term cost. High efficiency, low air use.
Selling Units:Single item
