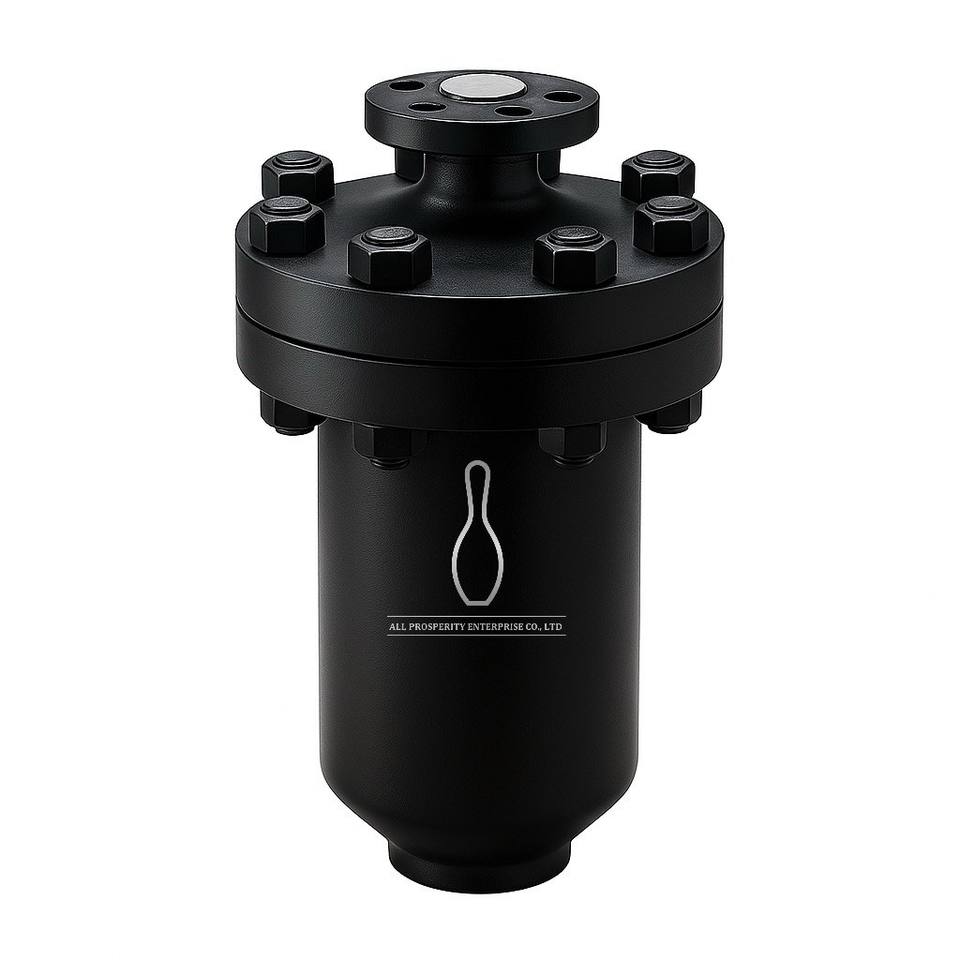

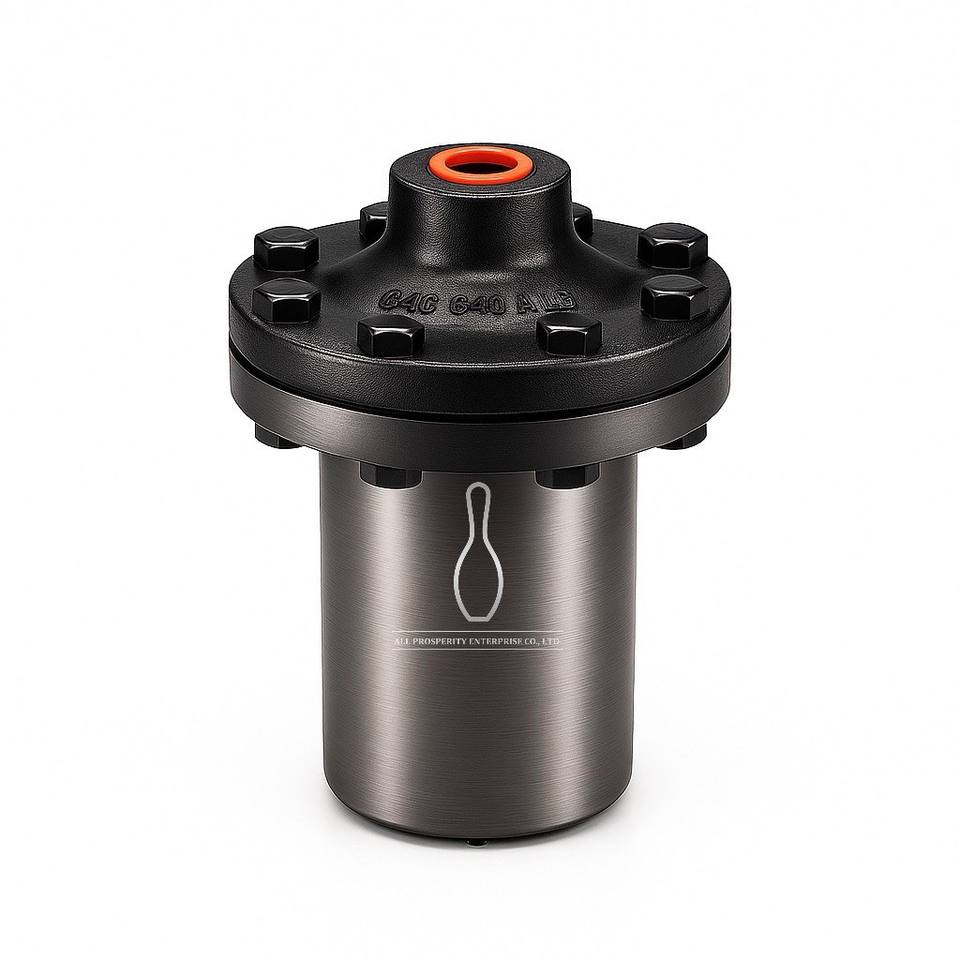

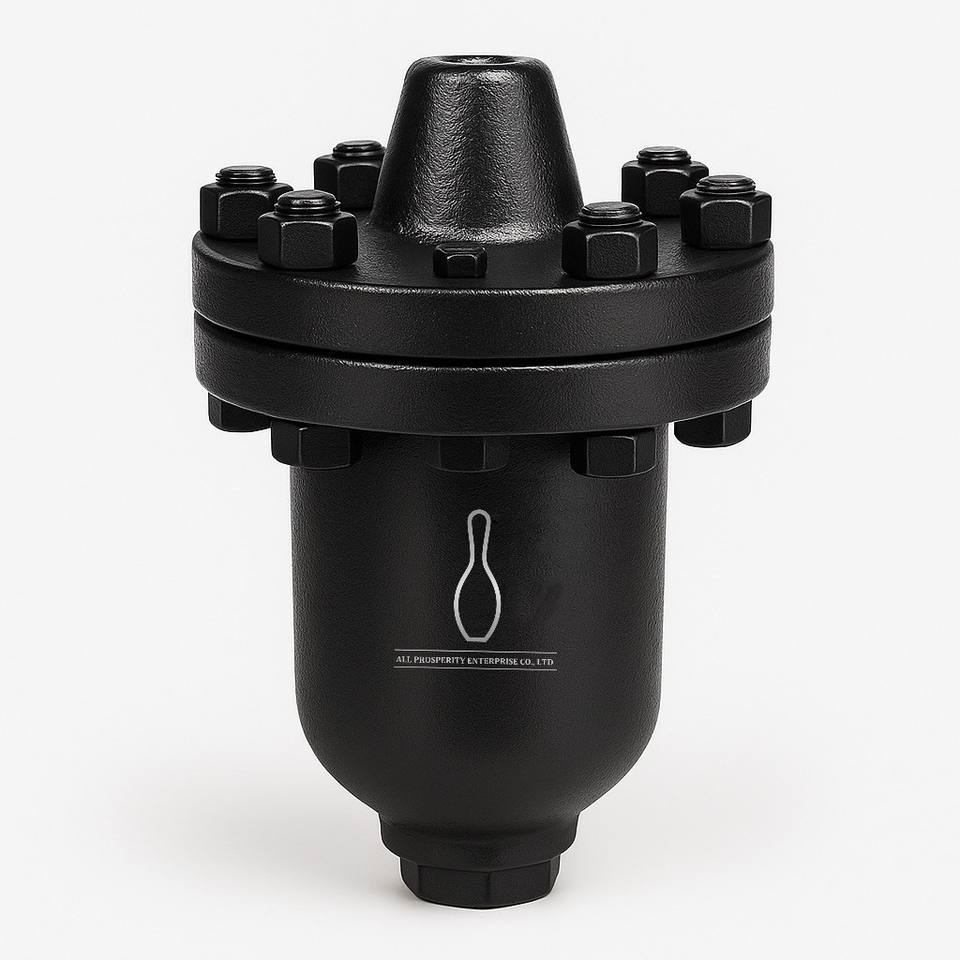

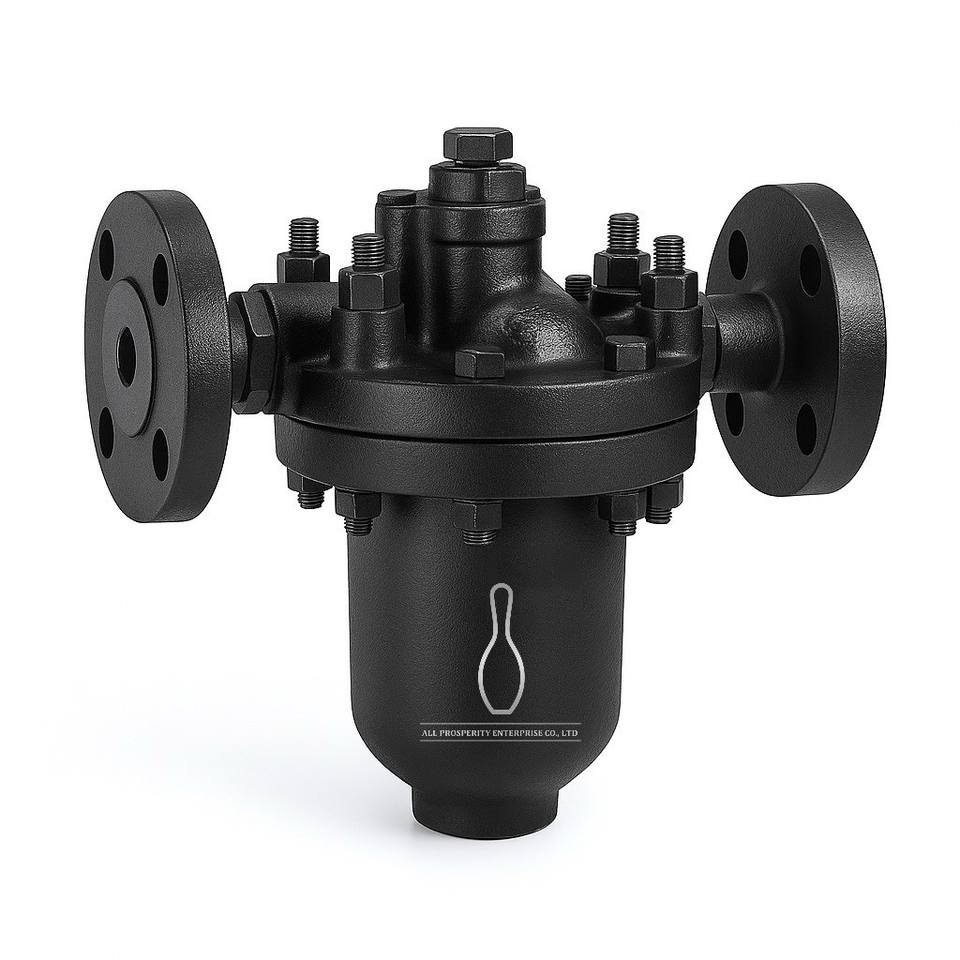

Vertical Mount IB941 F22 ASTM A105 ASME SA105 Forged Steel Flanged End ANSI300 PN16 PN25 Inverted Bucket Air Trap Steam Trap
No reviews yet
Attributes
DN25port size
Inverted Bucketstructure
Steam Traptype
OEMcustomized support
Taiwan, Chinaplace of origin
Generalapplication
power:Hydraulic
model number:IB941
brand name:BOWLING
media:Gas
temperature of media:Normal Temperature
warranty:1 year
Body:ASTM A105 Forged Steel
Gasket:Graphite
Seat & Valve:Chrome Steel Hardened SS440
Mechanism:SUS304
Connection 1:NPT (ANSI BI.20.1), BSPT (BS21.0), BSPF SW
Connection 2:Flanged End JIS10K. JIS25 ANSI150. ANSI300. PN16. PN25
Max. Operating pressure:69 BAR. 69 KGS
Operating temperature:430 DEG.C
Flow Direction:Vertical Direction
Optional:Internal Check Valve. Strainer
Key attributes
port size
DN25
structure
Inverted Bucket
type
Steam Trap
customized support
OEM
place of origin
Taiwan, China
application
General
power
Hydraulic
model number
IB941
brand name
BOWLING
media
Gas
temperature of media
Normal Temperature
warranty
1 year
Body
ASTM A105 Forged Steel
Gasket
Graphite
Seat & Valve
Chrome Steel Hardened SS440
Mechanism
SUS304
Connection 1
NPT (ANSI BI.20.1), BSPT (BS21.0), BSPF SW
Connection 2
Flanged End JIS10K. JIS25 ANSI150. ANSI300. PN16. PN25
Max. Operating pressure
69 BAR. 69 KGS
Operating temperature
430 DEG.C
Flow Direction
Vertical Direction
Optional
Internal Check Valve. Strainer
Packaging and delivery
Selling Units
Single item
Single package size
20X20X20 cm
Single gross weight
25.000 kg
Lead time
Customization options
Logo customized (Min. order: 1 set)
Packing customized (Min. order: 1,000 sets)
Graphic customized (Min. order: 1,000 sets)
View details
Product descriptions from the supplier
Customizable
100 - 199 sets
$1,200
200 - 499 sets
$110
500 - 999 sets
$99
>= 1,000 sets
$90
Sample price: $1,300
Variations
Select nowmaterial: Forged Steel
Forged Steel
pressure: High Pressure
High Pressure
size
1 in
Customization options
Logo customized (Min. order: 1 set)
Packing customized (Min. order: 1,000 sets)
Graphic customized (Min. order: 1,000 sets)
Supplier’s customization ability
Drawing-based customization
Sample-based customization
Full customization
