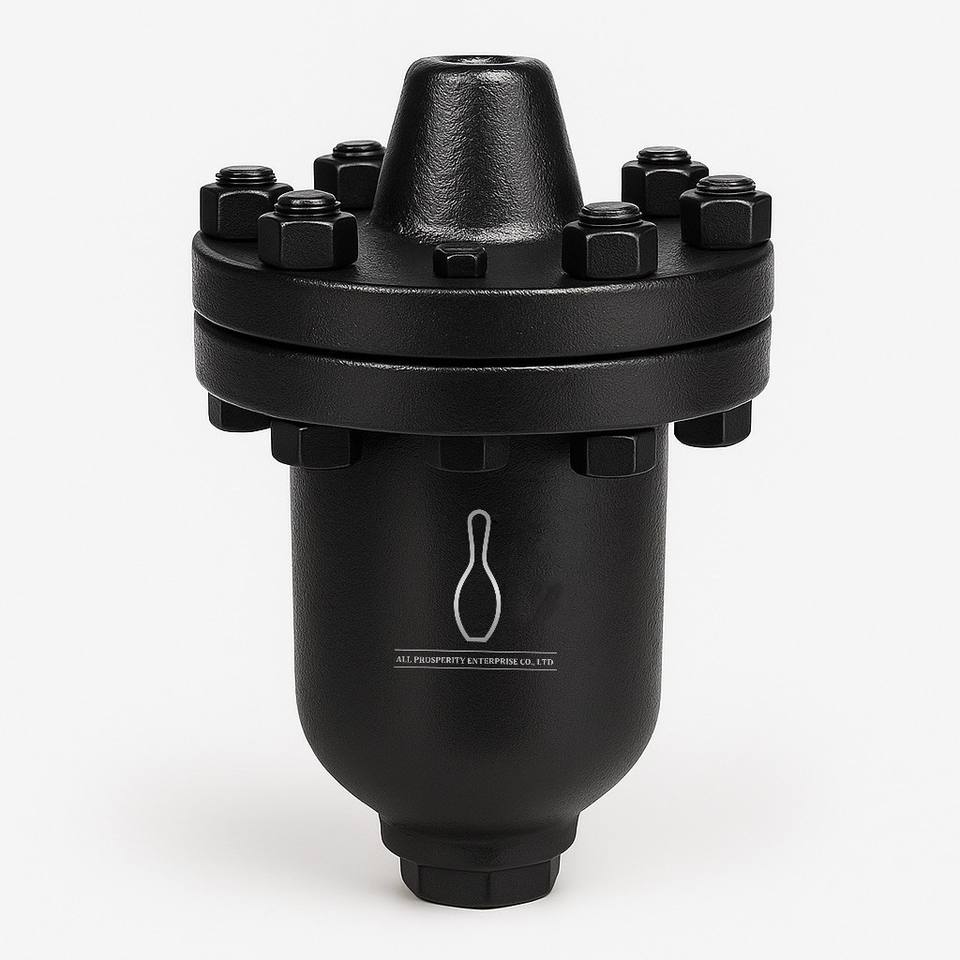

Vertical Mount IB1543 F22 Steel 186BAR Flanged End ANSI300 PN16 PN25 Inverted Bucket Gas Hydraulic Air Trap Steam Trap
See store reviews3 sold
Attributes
Steam Traptype
Gasmedia
DN25port size
Normal Temperaturetemperature of media
Generalapplication
Hydraulicpower
structure:Inverted Bucket
customized support:OEM
place of origin:Taiwan, China
model number:IB1543
brand name:BOWLING
warranty:1 year
Body:ASTM A182 F22
Gasket:Graphite
Seat & Valve:Chrome Steel Hardened SS440
Mechanism:SUS304
Connection 1:NPT (ANSI BI.20.1), BSPT (BS21.0), BSPF SW
Connection 2:Flanged End JIS10K. JIS25 ANSI150. ANSI300. PN16. PN25
Max. Operating pressure:186 BAR. 186 KGS
Operating temperature:540 DEG.C
Flow Direction:Vertical Direction
Optional:Internal Check Valve. Strainer
Key attributes
type
Steam Trap
media
Gas
port size
DN25
temperature of media
Normal Temperature
application
General
power
Hydraulic
structure
Inverted Bucket
customized support
OEM
warranty
1 year
place of origin
Taiwan, China
model number
IB1543
brand name
BOWLING
Body
ASTM A182 F22
Gasket
Graphite
Seat & Valve
Chrome Steel Hardened SS440
Mechanism
SUS304
Connection 1
NPT (ANSI BI.20.1), BSPT (BS21.0), BSPF SW
Connection 2
Flanged End JIS10K. JIS25 ANSI150. ANSI300. PN16. PN25
Max. Operating pressure
186 BAR. 186 KGS
Operating temperature
540 DEG.C
Flow Direction
Vertical Direction
Optional
Internal Check Valve. Strainer
Packaging and delivery
Selling Units
Single item
Single package size
20X20X20 cm
Single gross weight
70.000 kg
Lead time
Customization options
Logo customized(+ from /Min. order: 1 set)
Packing customized(+ from /Min. order: 1,000 sets)
Graphic customized(+ from /Min. order: 1,000 sets)
View details
Product descriptions from the supplier
Lower tariff
Customizable
100 - 199 sets
$2,700
200 - 499 sets
$2,500
500 - 999 sets
$2,250
>= 1,000 sets
$2,000
Sample price: $3,000
Variations
Select nowmaterial: Alloy
Alloy
pressure: High Pressure
High Pressure
size
1 in
Customization options
Logo customized (Min. order: 1 set)
Packing customized (Min. order: 1,000 sets)
Graphic customized (Min. order: 1,000 sets)
Supplier’s customization ability
Drawing-based customization
Sample-based customization
Full customization
