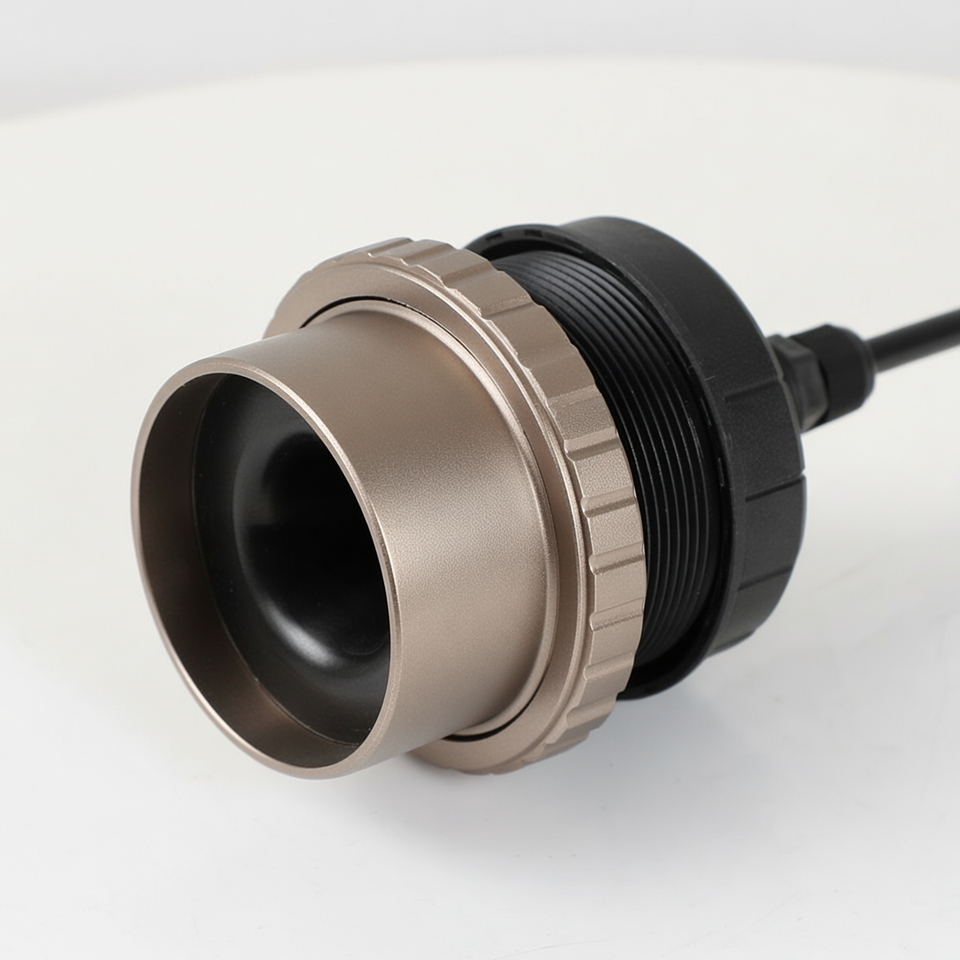

Ultrasonic Water Depth Level Meter Sensor with IP68 Rating 0.5% Accuracy RS485+4-20mA/0-5V Output

No reviews yet
$42
Minimum order quantity: 1 piece
Select now

Measurement Range

0-5m water

model number

UE3003

Key attributes

material

Polypropylene + glass fiber

Accuracy

±0.5%, 0.5%F.S (typical), 0.25%F.S (by customized)

Type

Ultrasonic Level Sensor

place of origin

Hunan, China

brand name

PMI

customized support

OEM, ODM

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

material
Polypropylene + glass fiber
Accuracy
±0.5%, 0.5%F.S (typical), 0.25%F.S (by customized)
Type
Ultrasonic Level Sensor
place of origin
Hunan, China
brand name
PMI
customized support
OEM, ODM
warranty
12 months
Measuring range
2.5m, 5m, 10m, others on request
Blind area
≤150mm(for 2.5m &5m ranges); ≤500mm(for 10m range)
Beam angle
12.
Output signal
RS485+4~20mA; RS485+0~5V
Power supply
10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature
-10~50c(-40~80c by customized)
Installation mode
Nut clamping fixed installation, screw-in installation, M68*2
Product material
Polypropylene + glass fiber
IP rating
IP67 typical, IP68 by customized

Packaging and delivery

Selling Units
Single item
Single package size
27X28X11 cm
Single gross weight
2.000 kg

Lead time
