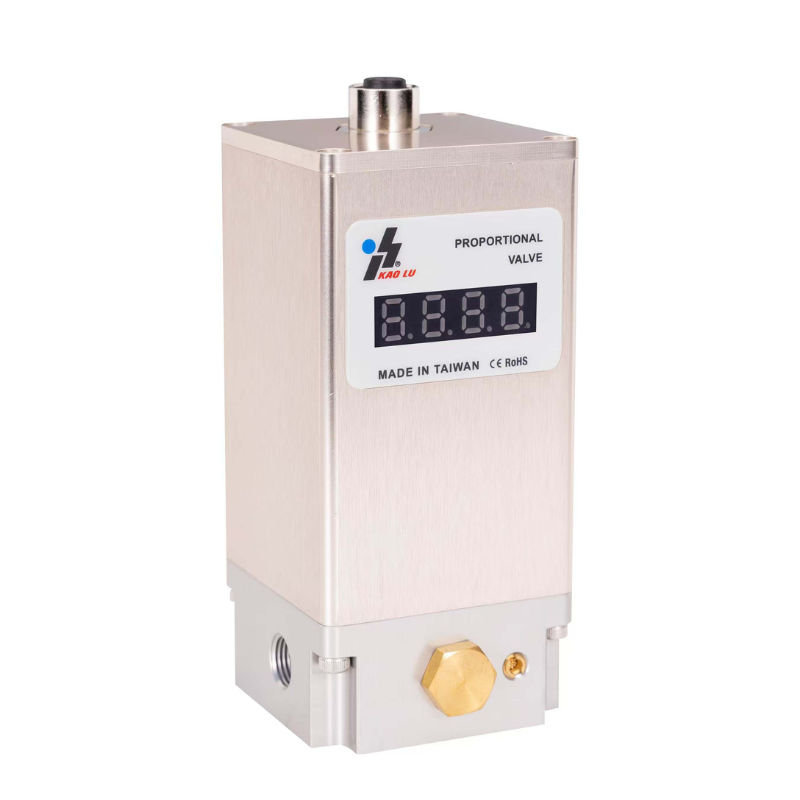

KaoLu QKL-B1TR Ultra High Resolution Electric Proportional Pressure Regulator 2 bar 29 Psig Gas-OEM Customizable High Accuracy
No reviews yet
Attributes
regulating valvestructure
PT 1/8"Connection Size
0~10 barOperational Pressure Range
0~70 ℃Operating Temp. Range
Gasmedia
Electricpower
Voltage:Dc 24V
port size:PT 1/8"
customized support:OEM
warranty:1 Year
temperature of media:Normal Temperature
application:Laboratory, Semiconductor, Medical
model number:QKL-B1TR
place of origin:Taiwan, China
brand name:KaoLu
Input Signal:0-10V / 4-20mA / RS485
Monitor Output:0-10V / 4-20mA / RS485
Output Range:0-2 bar
Power Supply:DC24V (3W)
Medium:Clean compressed air or with 5 um filter
Flow Rate:2.5L/min @ 1bar(orifice: 0.45mm)
Port Size:PT 1/8"
Repeatability:±0.02% F.S.
Accuracy:±0.1% F.S
Resolution(max.):0.001 psig
Key attributes
structure
regulating valve
Connection Size
PT 1/8"
Operational Pressure Range
0~10 bar
Operating Temp. Range
0~70 ℃
media
Gas
power
Electric
Voltage
Dc 24V
port size
PT 1/8"
customized support
OEM
warranty
1 Year
temperature of media
Normal Temperature
application
Laboratory, Semiconductor, Medical
model number
QKL-B1TR
place of origin
Taiwan, China
brand name
KaoLu
Input Signal
0-10V / 4-20mA / RS485
Monitor Output
0-10V / 4-20mA / RS485
Output Range
0-2 bar
Power Supply
DC24V (3W)
Medium
Clean compressed air or with 5 um filter
Flow Rate
2.5L/min @ 1bar(orifice: 0.45mm)
Port Size
PT 1/8"
Repeatability
±0.02% F.S.
Accuracy
±0.1% F.S
Resolution(max.)
0.001 psig
Packaging and delivery
Selling Units
Single item
Single package size
30X30X30 cm
Single gross weight
0.800 kg
Lead time
Customization options
Pressure Range(+ from /Min. order: 5 pieces)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Customizable
Minimum order quantity: 1 piece
$850-1,000
Sample price: $1,200
Variations
Select nowmaterial: Aluminum
Aluminum
pressure: Low Pressure
Low Pressure
size
PT 1/8"
Customization options
Pressure Range (Min. order: 5 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
