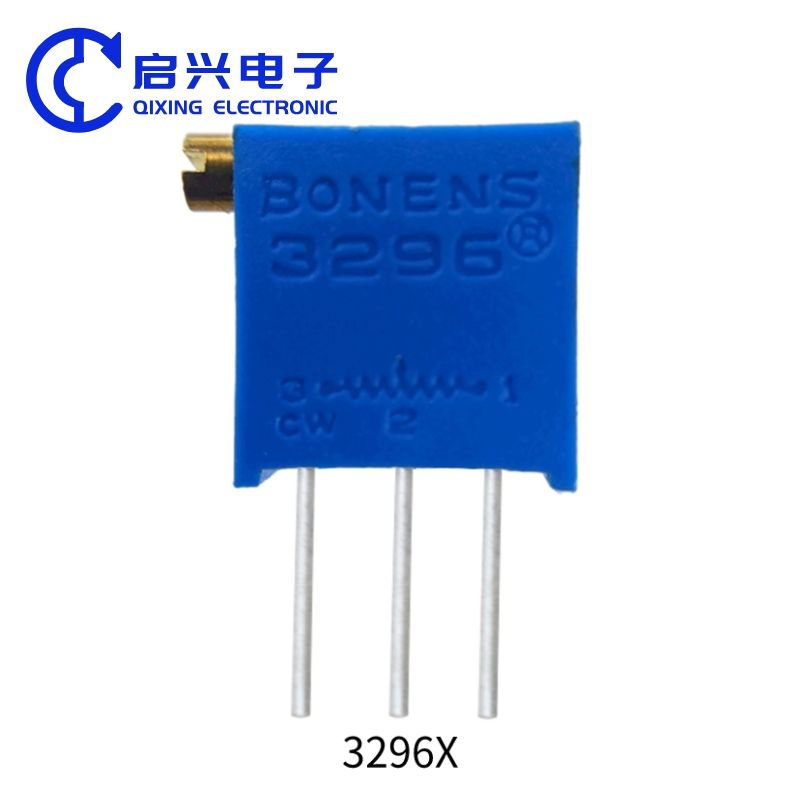

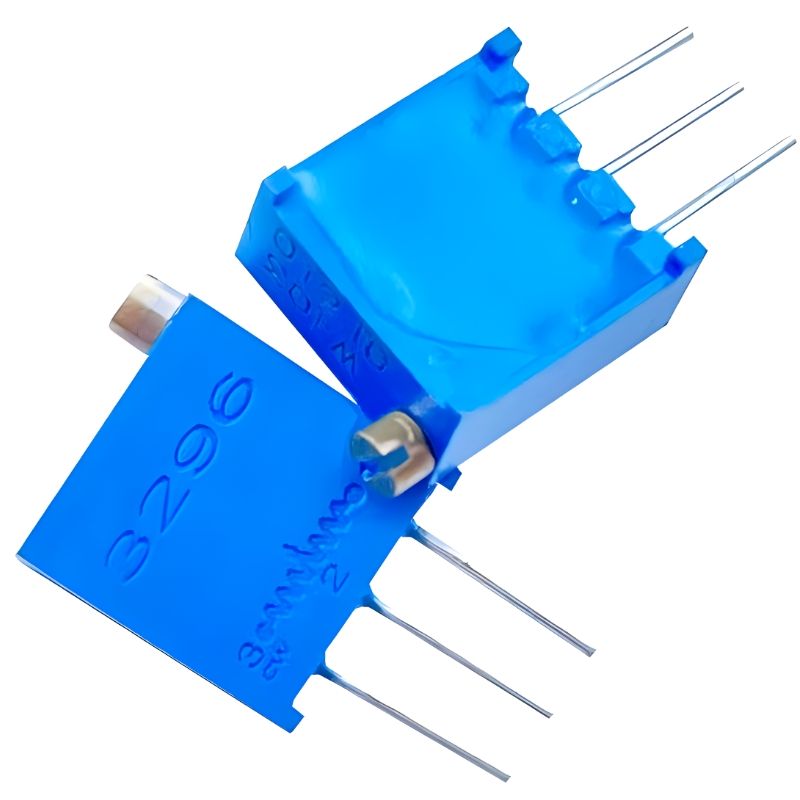

Trimmer Potentiometer 3296w 3296 Variable Resistor Top Adjustment Multiturn Turn Cermet Trimmer Trimpot 10k Potentiometers

Store rating:4.8
(71 reviews)

Attributes

BONENSBrand Name
3296Model Number
plastic pipePackaging Type
302BManufacturing Date Code
Sichuan, ChinaPlace of Origin
Multi-turn adjustable potentiometerDescription
Resistance:10Ω~5MΩ
Resistance Tolerance:±10%
Specification:3296W\3296Z\3296Y\3296X\3296P
Application:Communication equipment, electrical equipment
Package / Case:plastic
Series:3296 series
Features:Multi-turn
Size / Dimension:10*9.6mm
Range of nominal resistance:10Ω~5MΩ
Resistance tolerance:±10%
Terminal resistance:≤±1%R or 2Ω
Contact resistance variation (CRV):≤±1%R or 3Ω
Insulation resistance:≥ 1GΩ (100V AC)
Rated power:0.5W ( 300V max)
Temperature range:-55°C~+125°C
TCR:±250*10-6/°C
Standard package 1:50 pcs /tube(3296W,3296Y)
Standard package:40 pcs /tube(3296X,3296Z,3296P)

Key attributes

Application
Communication equipment, electrical equipment
Brand Name
BONENS
Description
Multi-turn adjustable potentiometer
Features
Multi-turn
Manufacturing Date Code
302B
Model Number
3296
Package / Case
plastic
Packaging Type
plastic pipe
Place of Origin
Sichuan, China
Resistance
10Ω~5MΩ
Resistance Tolerance
±10%
Series
3296 series
Size / Dimension
10*9.6mm(0.39*0.38in)
Specification
3296W\3296Z\3296Y\3296X\3296P
Range of nominal resistance
10Ω~5MΩ
Resistance tolerance
±10%
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Rated power
0.5W ( 300V max)
Temperature range
-55°C~+125°C
TCR
±250*10-6/°C
Standard package 1
50 pcs /tube(3296W,3296Y)
Standard package
40 pcs /tube(3296X,3296Z,3296P)

Packaging and delivery

Selling Units
Single item
Package size per batch
5X2.5X2.5 cm
Gross weight per batch
0.010 kg

Lead time

Customization options

Customized logo(+ from /Min. order: 10,000 pieces)
Customized packaging(+ from /Min. order: 10,000 pieces)
Graphic customization(+ from /Min. order: 10,000 pieces)
View details

Product descriptions from the supplier

Warning/Disclaimer
California Proposition 65 Consumer Warning
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.
Customizable
Minimum order quantity: 50 pieces
$0.05-0.12
Sample price: $0.12

Variations

Select now

Mounting Type

Through hole mounting
Customization options
Customized logo (Min. order: 10,000 pieces)
Customized packaging (Min. order: 10,000 pieces)
Graphic customization (Min. order: 10,000 pieces)
