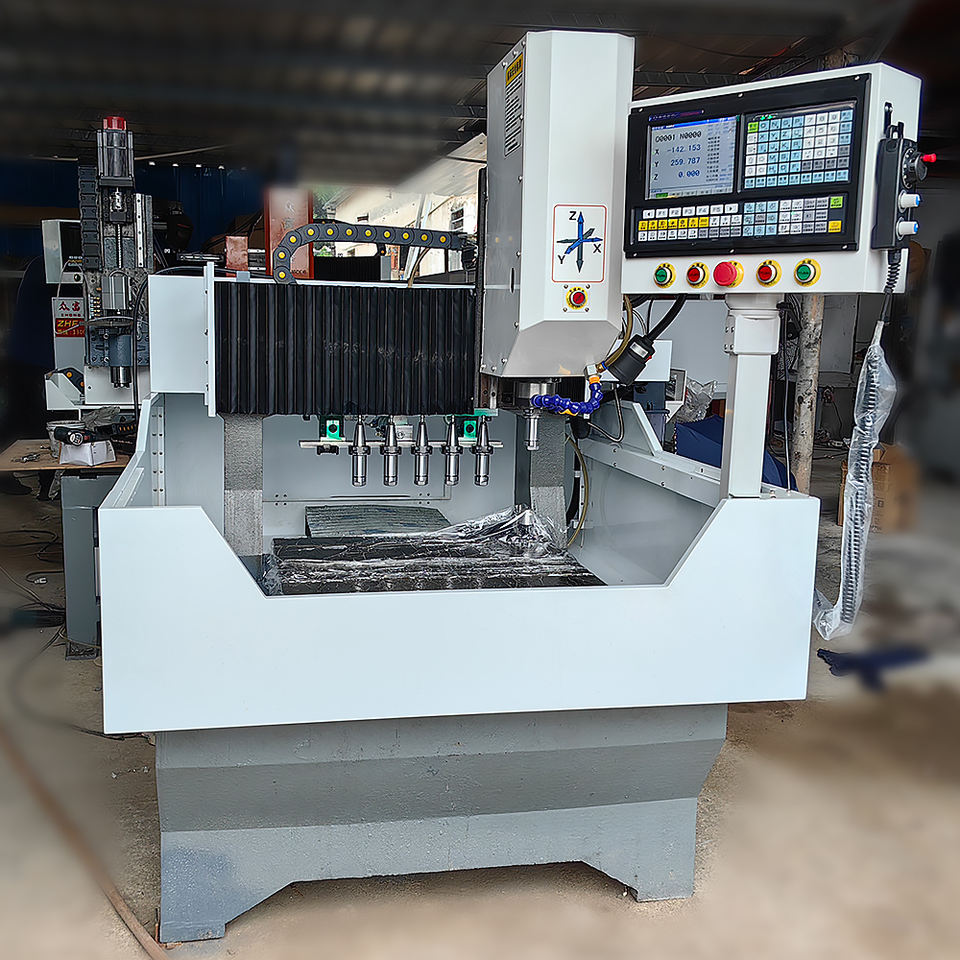

The 6090 CNC Milling Machine, a Popular Product From Chinese Manufacturers, Is Used for Drilling and Milling Metal Molds
Store rating:4.9
(46 reviews)#3Most Popular in CNC Milling Machines
Attributes
VERTICALtype
3number of axes
110 V, 220 V, 380 Vvoltage
900table travel (x) (mm)
600table travel (y) (mm)
300table travel (z) (mm)
positioning accuracy:0.03-0.05
repeatability (x/y/z) (mm):0.03-0.05
spindle taper:BT30
cnc control system:Denver
machining capacity:Medium Duty
no. of spindles:3
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
key selling points:Multifunctional, Automatic, Competitive Price, High-Accuracy, High Productivity, Long Service Life, Easy To Operate, High Rigidity, Low Maintenance Cost
place of origin:Guangdong, China
max. table load(kg):300
range of spindle speed:0 - 6000
brand name:manufacturer
model number:6090
dimension(l*w*h):1370*1090*1650mm
weight:1450
X-axis travel (MM) ::900mm
Y-axis travel (MM) ::600mm
Z-axis travel (MM) ::350mm
Change of tool method:6 sets of ATC straight-out tools
Spindle to table surface::300mm
Spindle speed::6000
Main shaft motor::2.6KW
Machine tool weight::1450 kilograms
Product spotlightsHigh Positioning Accuracy: Ensures precise machining with a positioning accuracy of 0.03-0.05 mm, enhancing the quality and consistency of the finished products.

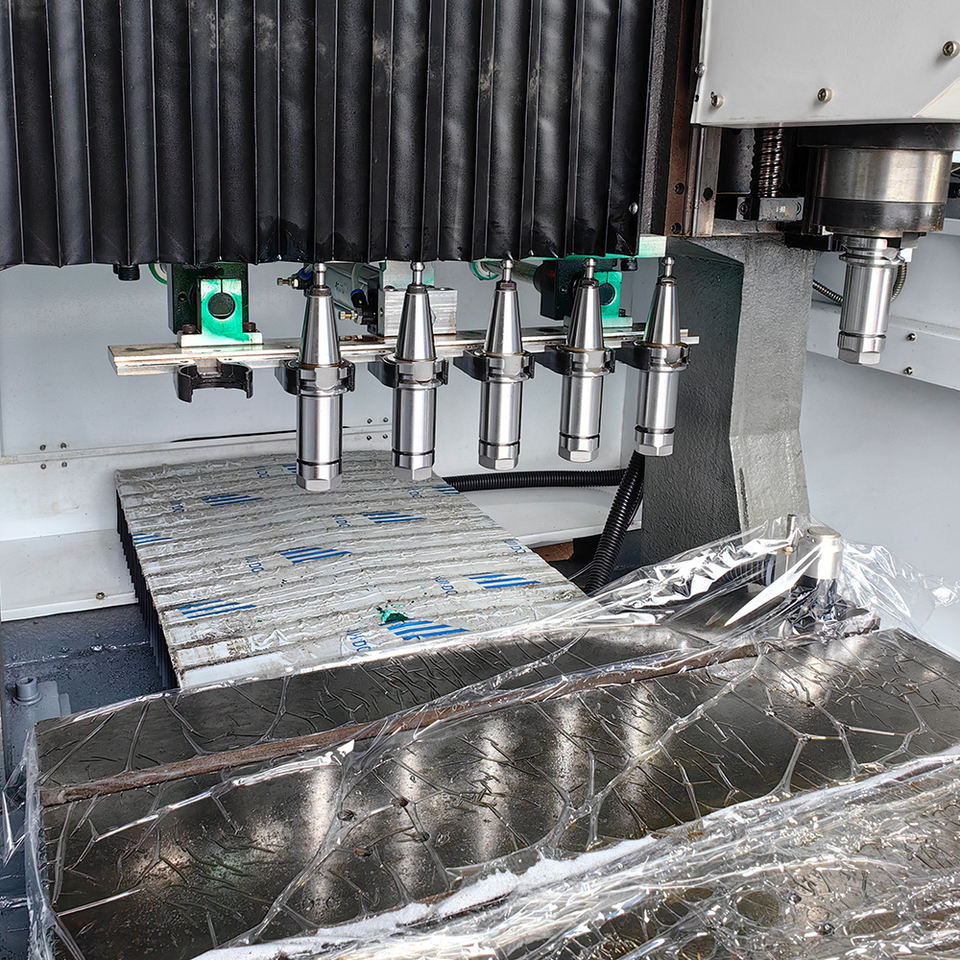

Automatic Tool Changer: Equipped with a 6-position ATC, allowing for efficient and quick tool changes, which increases productivity and reduces downtime.

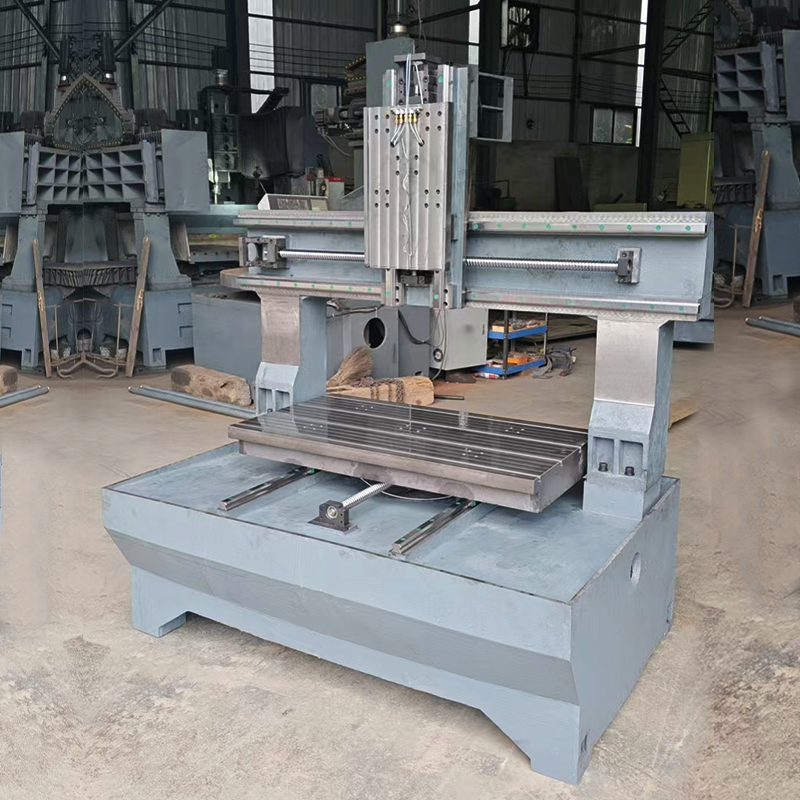

Integral Casting Frame: Constructed from HT250 integral casting, providing high rigidity and stability, which is essential for maintaining precision during heavy-duty operations.
Service
1-year warranty
Key attributes
type
VERTICAL
number of axes
3
voltage
110 V, 220 V, 380 V
table travel (x) (mm)
900
table travel (y) (mm)
600
table travel (z) (mm)
300
positioning accuracy
0.03-0.05
repeatability (x/y/z) (mm)
0.03-0.05
spindle taper
BT30
cnc control system
Denver
machining capacity
Medium Duty
no. of spindles
3
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Multifunctional, Automatic, Competitive Price, High-Accuracy, High Productivity, Long Service Life, Easy To Operate, High Rigidity, Low Maintenance Cost
place of origin
Guangdong, China
max. table load(kg)
300
range of spindle speed
0 - 6000
brand name
manufacturer
model number
6090
dimension(l*w*h)
1370*1090*1650mm
weight
1450
X-axis travel (MM) :
900mm
Y-axis travel (MM) :
600mm
Z-axis travel (MM) :
350mm
Change of tool method
6 sets of ATC straight-out tools
Spindle to table surface:
300mm
Spindle speed:
6000
Main shaft motor:
2.6KW
Machine tool weight:
1450 kilograms
Packaging and delivery
Selling Units
Single item
Single package size
120X125X185 cm
Single gross weight
1250.000 kg
Lead time
Customization options
table travel (x) (mm)(+ from +$100/piece/Min. order: 1 piece)
table travel (y) (mm)(+ from +$100/piece/Min. order: 1 piece)
table travel (z) (mm)(+ from +$100/piece/Min. order: 1 piece)
View details
Product descriptions from the supplier
Minimum order quantity: 1 piece
$1,485-5,500
Variations
Select nowtable size: 600x600x350 frame
600x600x350 frame
600x600x350 CNC milling machines
900*600*300 frame
1100*600*400 frame
1200*650*350 frame
1450*800*420 frame
spindle motor power(kw)
2.6kw(3.49hp)
Customization options
table travel (x) (mm)+$100/piece (Min. order: 1 piece)
table travel (y) (mm)+$100/piece (Min. order: 1 piece)
table travel (z) (mm)+$100/piece (Min. order: 1 piece)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
