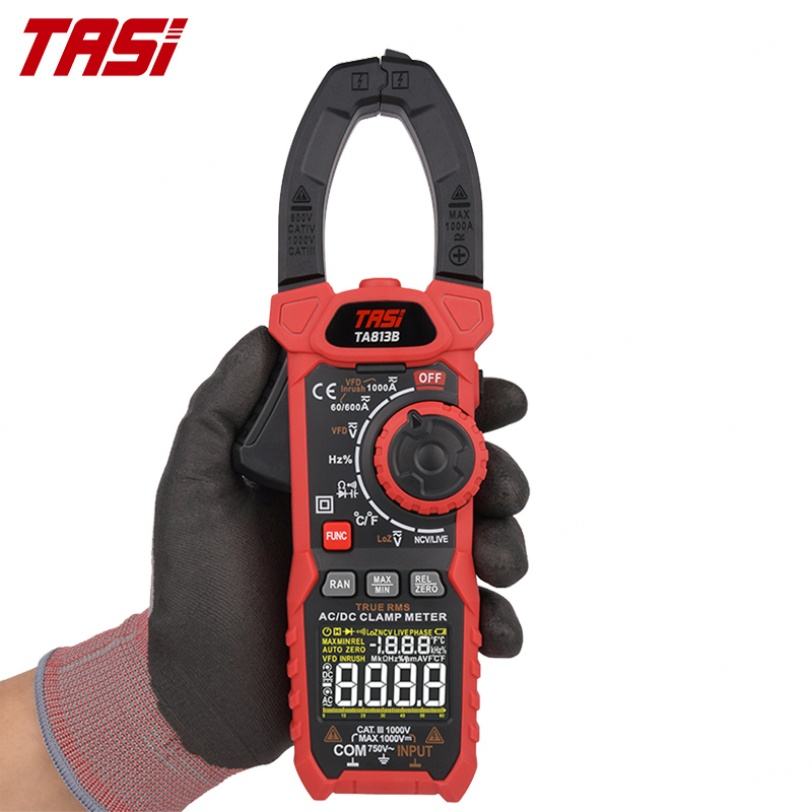

TASI TA813B+ Digital Clamp Meter 6000 Counts True RMS AC/DC 1000A Ohm LowZ NCV Multimeter Resistance Diode DC Current Frequency
TASI TA813B+ Digital Clamp Meter 6000 Counts True RMS AC/DC 1000A Ohm LowZ NCV Multimeter Resistance Diode DC Current Frequency5.0(2 reviews)2 sold
#10 hot selling in Clamp Meters with 50% Duty Cycle
#10 hot selling in Clamp Meters with 50% Duty Cycle$40.24
1-199 pieces
$38.23
200-399 pieces
$36.22
≥400 pieces
Sample price: $40.24
Color
Instrument Counts
Customization options
Measuring Voltage Range (Min. order: 1,000 pieces)
Measuring Capacitance Range (Min. order: 1,000 pieces)
Measuring Current Range (Min. order: 1,000 pieces)
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Key attributes
Clamp Opening Size
Φ40 mm
Max. Ac Current
1000 A
Max. DC Current
1000 A
Measuring Voltage Range
AC:0.001V~750V+(0.8%±5), DC:0.1mV~1000V+(0.5%±5)
Place of Origin
Guangdong, China
Model Number
TA813B+
Shipping
Select shipping
Alibaba.com order protection
Secure payments
Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Only orders placed and paid through Alibaba.com can enjoy free protection by
Payment & financing
Buy now, pay later
Key attributes
Clamp Opening Size
Φ40 mm
Max. Ac Current
1000 A
Max. DC Current
1000 A
Measuring Voltage Range
AC:0.001V~750V+(0.8%±5), DC:0.1mV~1000V+(0.5%±5)
Place of Origin
Guangdong, China
Model Number
TA813B+
Brand Name
TASI
Accuracy Class
±(0.5% + 3)
Dimensions
254 x 93 x 40mm
Display Type
LCD
Frequency Range
10Hz~10MHz±(1.0%+3)
Instrument Safety Rating
CAT III 1000V
Max. Ac Voltage
Up To 600V, 750 V
Max. DC Voltage
1000 V
Measuring Capacitance Range
1nF~100000μF±(3.0%+3)
Measuring Current Range
0–1000 A
Measuring Inductance Range
No
Measuring Resistance Range
0.1Ω~100MΩ±(1.0%+3)
Operating Temperature
0 °C ~ 45 °C
Parameters Measured
DC Current, AC Voltage, Frequency, DC Voltage, Resistance, AC CURRENT, Diode, Duty Cycle, Low Input Impedance, TEMPERATURE
Weight
190g
Product name
Clamp Meter
Measurement
Auto/Manuall range
Inductance
0.001mH~20H±(1.0%+3)
Duty circle
1%~99%
Temperature
-40℃~1000℃
Feature
Relative value/ Zero/Inductance

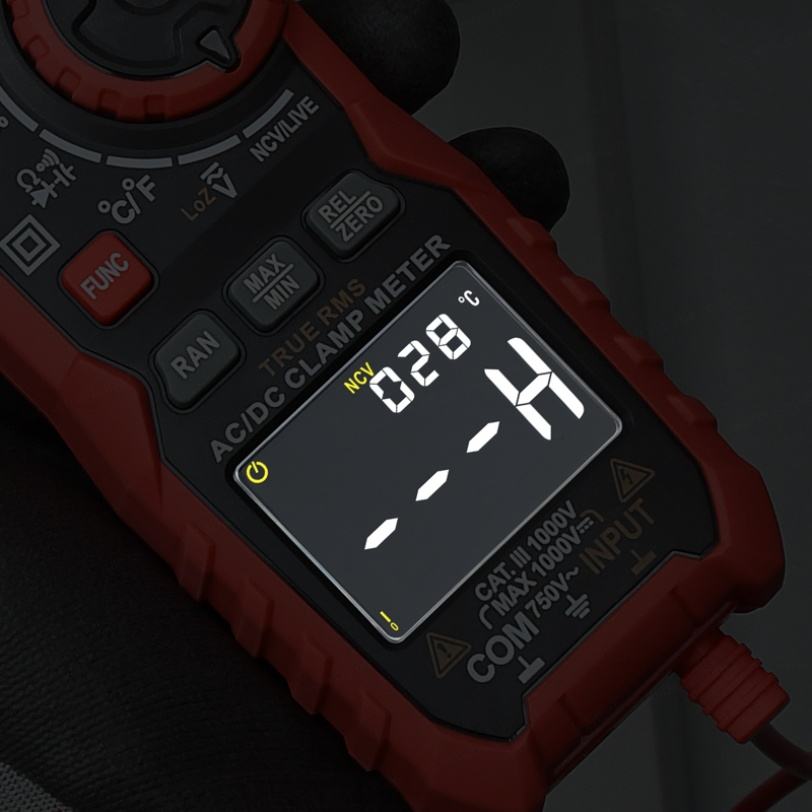

Display
9999 Counts LCD Display
Power
1.5V Battery (AAA)X3
Delivery contents

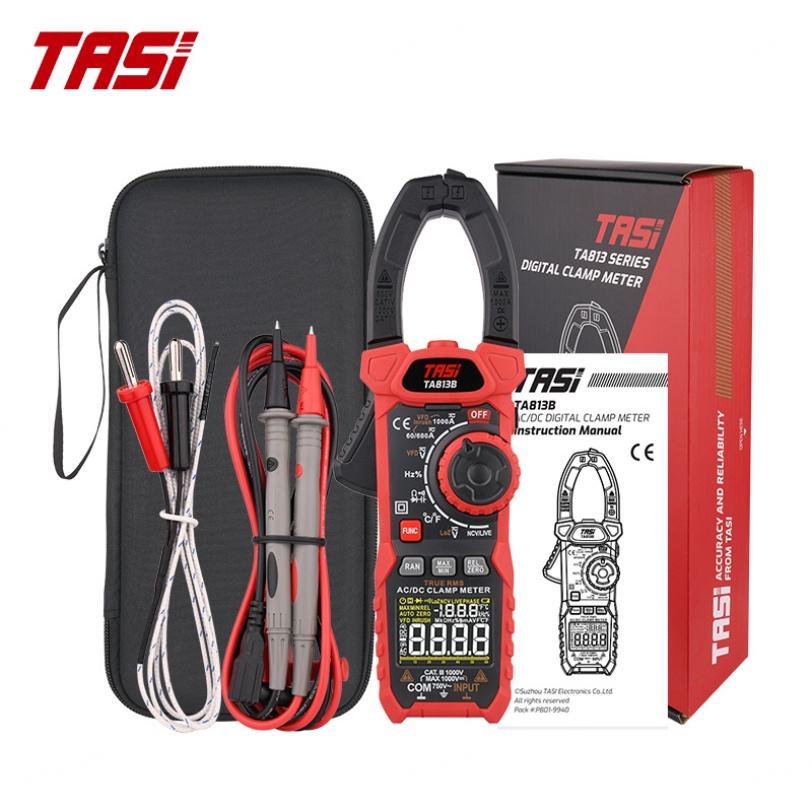

Meter, box, manual, test leads*1 pair, thermocouple probe
Packing
20pcs, 13.8kg, 32*51.5*34cm
Packaging and delivery
Selling Units
Single item
Single package size
30.5X14X8 cm
Single gross weight
0.75 kg
Lead time
Customization options
Measuring Voltage Range(+ from /Min. order: 1,000 pieces)
Measuring Capacitance Range(+ from /Min. order: 1,000 pieces)
Measuring Current Range(+ from /Min. order: 1,000 pieces)
Measuring Resistance Range(+ from /Min. order: 1,000 pieces)
