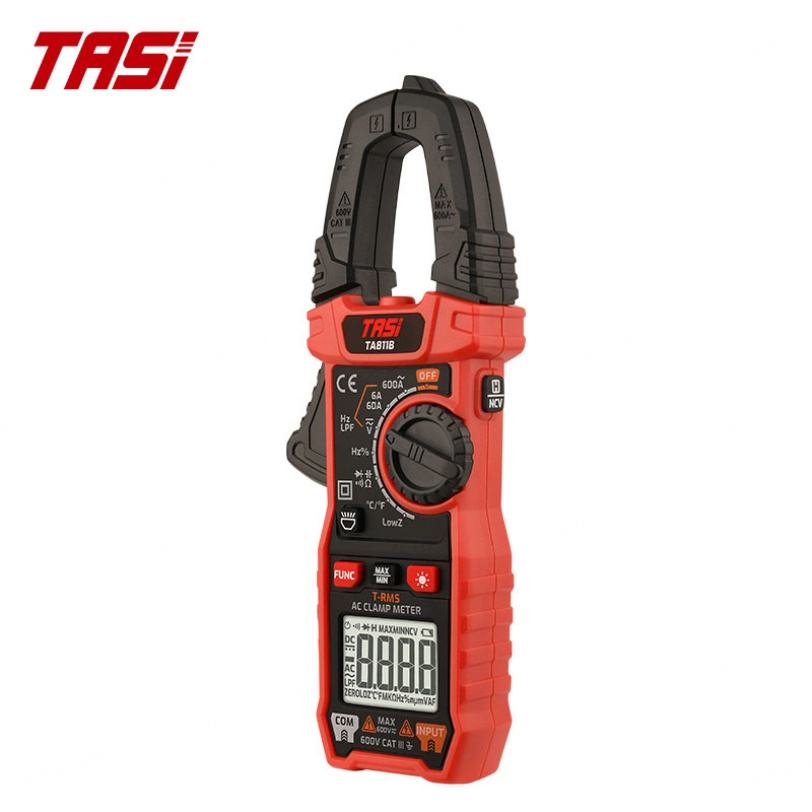

TASI TA811B Digital Clamp Meter Multifunctional Electrical Tester for Professionals Measures Resistance Temperature Frequency
No reviews yet#9 most popular in Clamp Meters Low Input Impedance
TASI Electronics (Hong Kong) Co., Limited
kl, HK1 yr on Alibaba.comCustom Manufacturer
5/5.0(126 reviews)Response Time ≤ 1hOn-time delivery rate ≥ 100%
Attributes
CAT III 600VInstrument Safety Rating
Low Input Impedance, DC Current, AC Voltage, Frequency, TEMPERATURE, DC Voltage, AC CURRENT, ResistanceParameters Measured
0.1A~600A DC 0.6A~600A ACMeasuring Current Range
1000V DC 750V ACMeasuring Voltage Range
27MMClamp Opening Size
NAMax. Ac Current
Max. DC Current:600 A
Place of Origin:Guangdong, China
Model Number:TA811B
Brand Name:TASI
Dimensions:207*115*43mm
Display Type:Digital Only
Max. Ac Voltage:600 V
Max. DC Voltage:600 V
Measuring Capacitance Range:1nF~30000μF
Measuring Inductance Range:N/A
Measuring Resistance Range:0.1Ω~40MΩ
Operating Temperature:0~40℃
Weight:300g
Product name:Clamp Multimeter
DC voltage:1mV~600V±(0.5%+3)
DC current:0.1A~600A
AC current:0.01A~600A
Resistance measurement:0.1Ω~40MΩ±(1.2%+8)
Capacitance measurement:1nF~4000μF±(5.0%+10)
Frequency measurement:10Hz~10MHz±(0.1%+3)
Temperature measurement:-20~1000°C±(1°C)
Square wave output:10Hz~100MHz
Key attributes
Instrument Safety Rating
CAT III 600V
Parameters Measured
Low Input Impedance, DC Current, AC Voltage, Frequency, TEMPERATURE, DC Voltage, AC CURRENT, Resistance
Measuring Current Range
0.1A~600A DC 0.6A~600A AC
Measuring Voltage Range
1000V DC 750V AC
Clamp Opening Size
27MM(1.06in)
Max. Ac Current
NA
Max. DC Current
600 A
Max. Ac Voltage
600 V
Max. DC Voltage
600 V
Display Type
Digital Only
Measuring Resistance Range
0.1Ω~40MΩ
Measuring Capacitance Range
1nF~30000μF
Operating Temperature
0~40℃(0~72℉)
Measuring Inductance Range
N/A
Place of Origin
Guangdong, China
Model Number
TA811B
Brand Name
TASI
Dimensions
207*115*43mm(8.15*4.53*1.69in)
Weight
300g(10.58oz)
Product name
Clamp Multimeter
DC voltage
1mV~600V±(0.5%+3)
DC current
0.1A~600A
AC current
0.01A~600A
Resistance measurement
0.1Ω~40MΩ±(1.2%+8)
Capacitance measurement
1nF~4000μF±(5.0%+10)
Frequency measurement
10Hz~10MHz±(0.1%+3)
Temperature measurement
-20~1000°C±(1°C)
Square wave output
10Hz~100MHz
