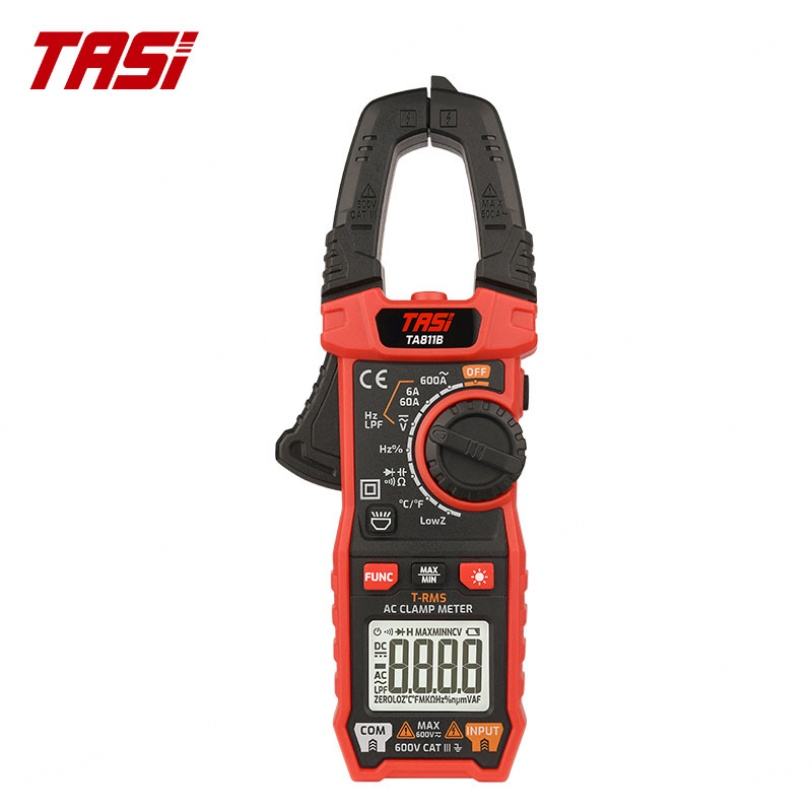

TASI TA811B 5999 Counts AC 600A Auto Range Clamp Meters Digital Clamp Meter
Store rating:5.0
(128 reviews)
Attributes
0.01A~600A ACMeasuring Current Range
600V AC/DCMeasuring Voltage Range
±(0.5% + 3)Accuracy Class
27mmClamp Opening Size
600 AMax. Ac Current
600 AMax. DC Current
Display Type:Digital Only
Frequency Range:10 Hz -10 mHz
Measuring Resistance Range:0.1Ω~60MΩ
Measuring Capacitance Range:1nF~100,000μF
Operating Temperature:0~40℃
Measuring Inductance Range:N/A
Place of Origin:Guangdong, China
Model Number:TA811B
Brand Name:TASI
Dimensions:194*73*31mm
Weight:177g
Product name:Clamp Meter
Model:TA811B

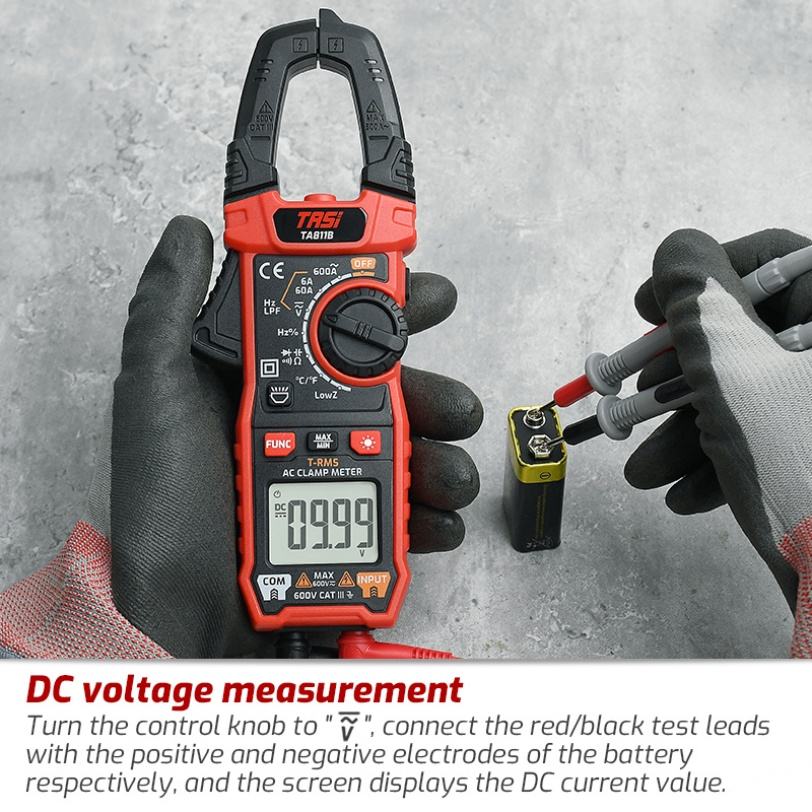

DC voltage:0.1mV~600V±(0.5%+5)
AC voltage:0.001V~600V±(0.8%+5)
AC current:0.01A~600A±(2.5%+5)

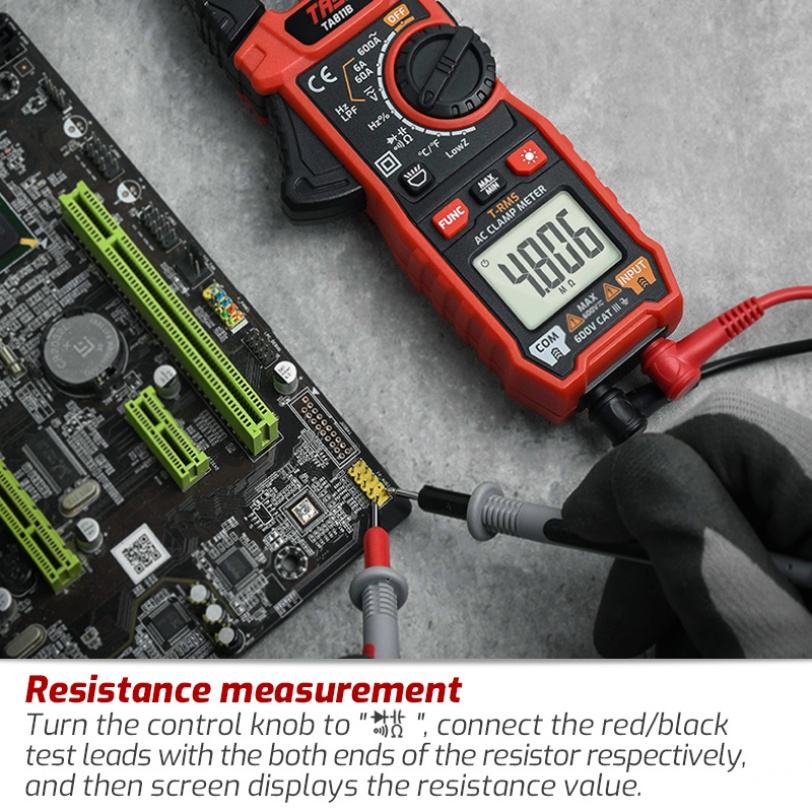

Resistance:0.1Ω~60MΩ±(1.0%+5)
Capacitance:1nF~100,000μF±(54.0%+5)
Frequency:10Hz~10MHz±(1.0%+3)
Temperature:-20~1000°C±(1.0%+2)
Display:5999 Counts
Key attributes
Measuring Current Range
0.01A~600A AC
Measuring Voltage Range
600V AC/DC
Accuracy Class
±(0.5% + 3)
Clamp Opening Size
27mm
Max. Ac Current
600 A
Max. DC Current
600 A
Display Type
Digital Only
Frequency Range
10 Hz -10 mHz
Measuring Resistance Range
0.1Ω~60MΩ
Measuring Capacitance Range
1nF~100,000μF
Operating Temperature
0~40℃
Measuring Inductance Range
N/A
Place of Origin
Guangdong, China
Model Number
TA811B
Brand Name
TASI
Dimensions
194*73*31mm
Weight
177g
Product name
Clamp Meter
Model
TA811B
DC voltage
0.1mV~600V±(0.5%+5)
AC voltage
0.001V~600V±(0.8%+5)
AC current
0.01A~600A±(2.5%+5)
Resistance
0.1Ω~60MΩ±(1.0%+5)
Capacitance
1nF~100,000μF±(54.0%+5)
Frequency
10Hz~10MHz±(1.0%+3)
Temperature
-20~1000°C±(1.0%+2)
Display
5999 Counts
Packaging and delivery
Selling Units
Single item
Single package size
23X12X5 cm
Single gross weight
0.400 kg
Lead time
Product descriptions from the supplier
1 - 199 pieces
$1811
200 - 399 pieces
$1710
>= 400 pieces
$1610
Variations
Select nowInstrument Counts
6000
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
