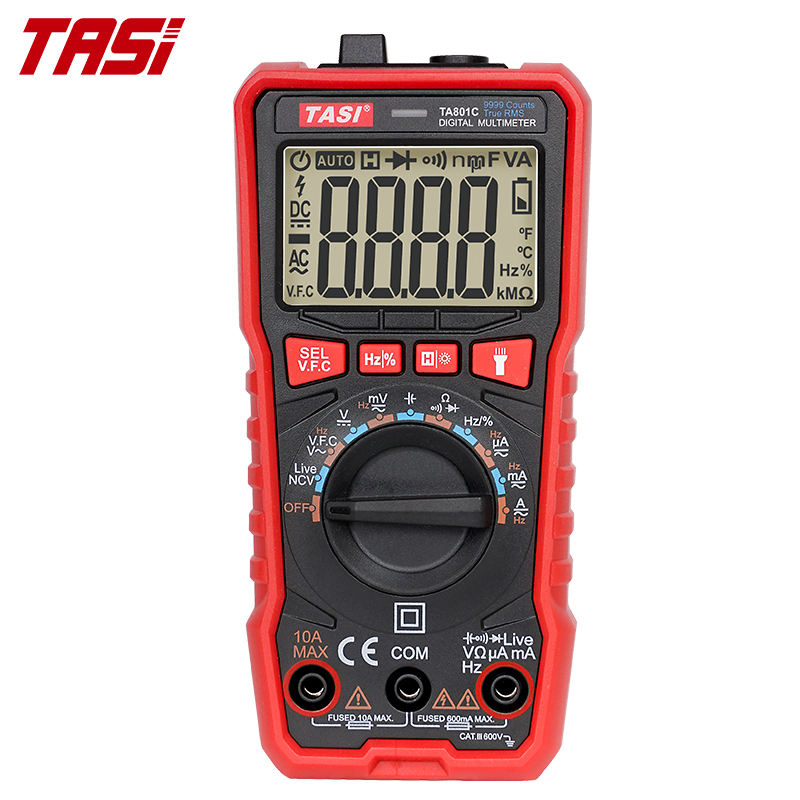

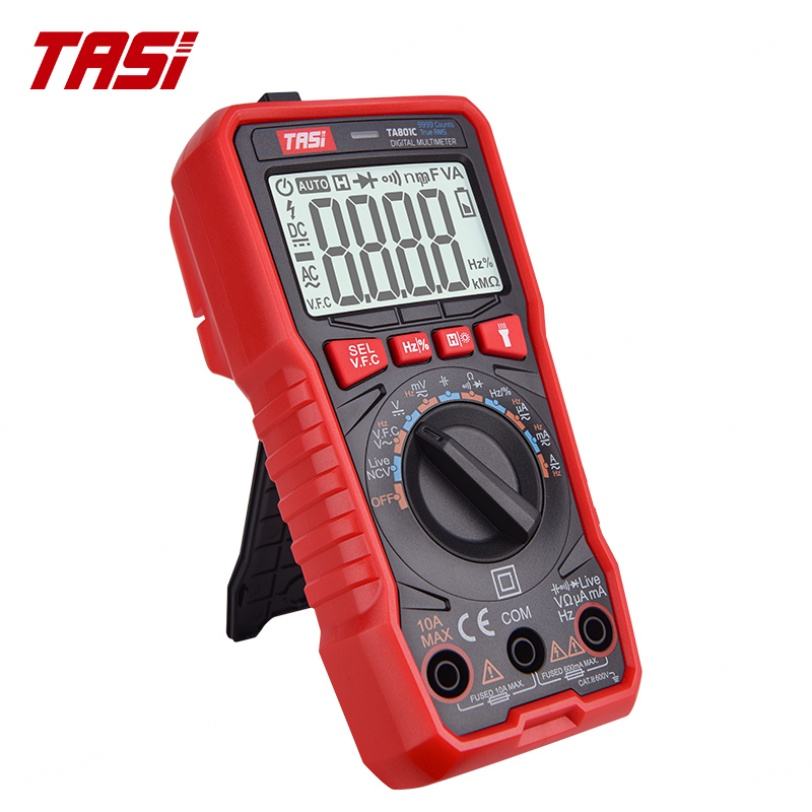

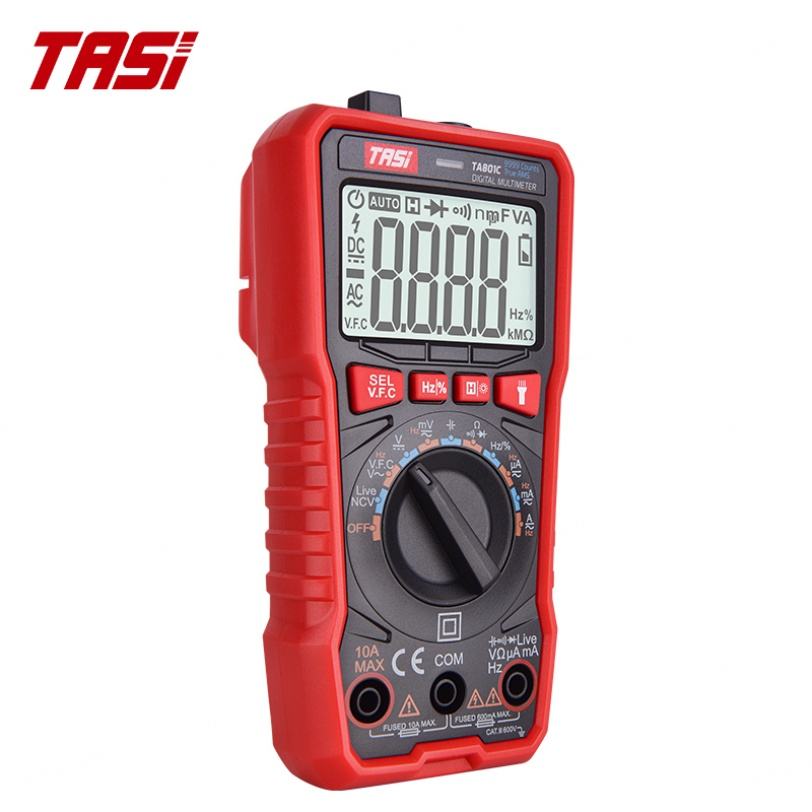

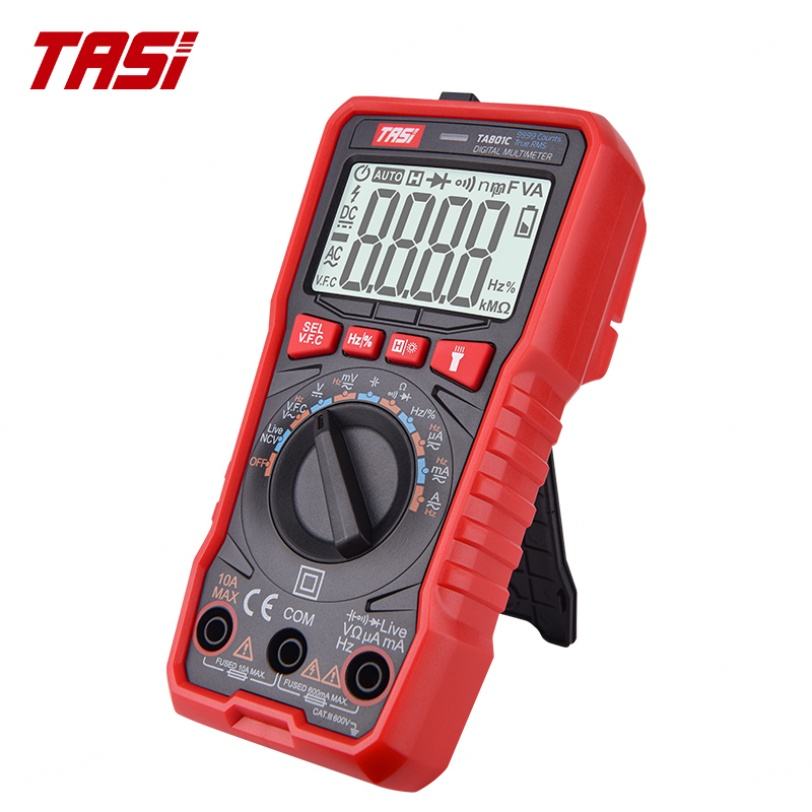

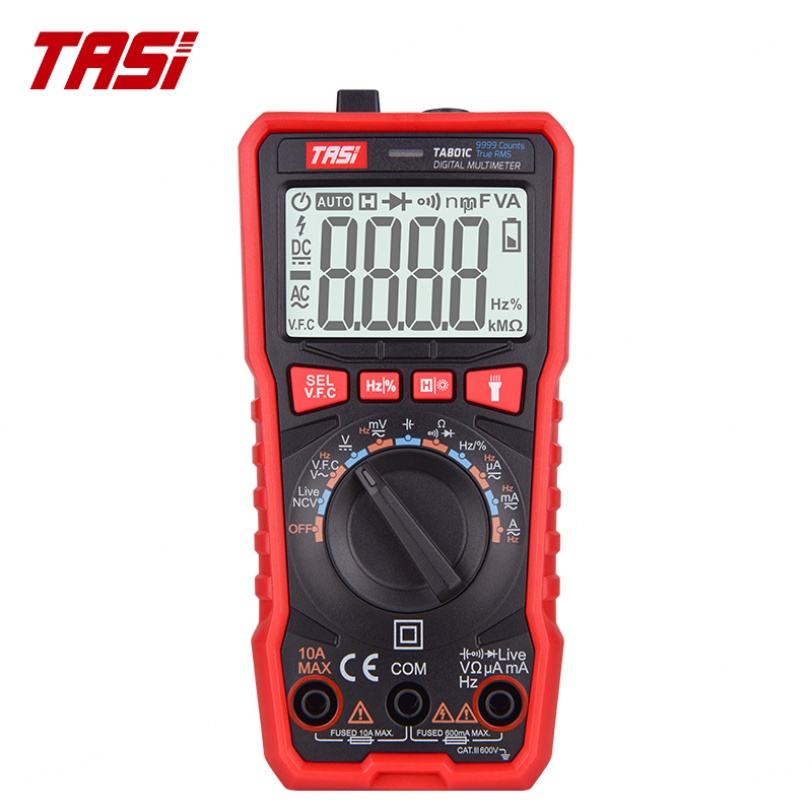

TASI TA801CDigital Multimeter for Mobile Phone Repair High Precision Temperature Detection Multimeter
Store rating:5.0
(127 reviews)
Attributes
DC Current, AC Voltage, Frequency, AC CURRENT, DC Voltage, Capacitance, Diode, ResistanceParameters Measured
±(0.01% + 1)Accuracy Class
600 VMax. DC Voltage
600 VMax. AC Voltage
10AMax. DC Current
10AMax. AC Current
Measuring Current Range:0.1μA~10A±(1.0%+2)
Measuring Voltage Range:0.01mV~600V
Place of Origin:Guangdong, China
Model Number:TA801C
Brand Name:TASI
Application:Industrial Use, Household Use
Digits Displayed:4 Digits
Dimensions:148*70*42mm
Feature:Standard, Dustproof, Intrinsically Safe, Bluetooth, Variable frequency voltage test
Low Battery Indicator:Yes
Material:Plastic, PC, PVC
Measuring Capacitance Range:1nF~100,000μF±(3.0%+10)
Measuring Inductance Range:10Hz~10MHz±(0.1%+3)
Operating Temperature:-20-70℃
Product name:digital multimeter
Display:9999 Counts LCD Display; 49*31mm; HD backlight
Power Supply:2*1.5V AAA Battery
Function:NCV measurement
Auto shut off:Yes (About 15 minutes later)
Feature:Non contact voltage sensing
Keyword:Variable frequency voltage test
Certificate:CE ISO9000
Input impedance:10MΩ
Delivery contents:Meter, box, manual, test leads*1 pair
Key attributes
Parameters Measured
DC Current, AC Voltage, Frequency, AC CURRENT, DC Voltage, Capacitance, Diode, Resistance
Accuracy Class
±(0.01% + 1)
Max. DC Voltage
600 V
Max. AC Voltage
600 V
Max. DC Current
10A
Max. AC Current
10A
Digits Displayed
4 Digits
Measuring Voltage Range
0.01mV~600V
Measuring Current Range
0.1μA~10A±(1.0%+2)
Feature
Standard, Dustproof, Intrinsically Safe, Bluetooth, Variable frequency voltage test
Measuring Capacitance Range
1nF~100,000μF±(3.0%+10)
Measuring Inductance Range
10Hz~10MHz±(0.1%+3)
Operating Temperature
-20-70℃
Material
Plastic, PC, PVC
Application
Industrial Use, Household Use
Low Battery Indicator
Yes
Place of Origin
Guangdong, China
Model Number
TA801C
Brand Name
TASI
Dimensions
148*70*42mm
Product name
digital multimeter
Display
9999 Counts LCD Display; 49*31mm; HD backlight
Power Supply
2*1.5V AAA Battery
Function
NCV measurement
Auto shut off
Yes (About 15 minutes later)
Feature
Non contact voltage sensing
Keyword
Variable frequency voltage test
Certificate
CE ISO9000
Input impedance
10MΩ
Delivery contents
Meter, box, manual, test leads*1 pair
Packaging and delivery
Selling Units
Single item
Single package size
19.5X12X7.5 cm
Single gross weight
0.400 kg
Lead time
Customization options
Measuring Current Range(+ from /Min. order: 1,000 pieces)
Measuring Voltage Range(+ from /Min. order: 1,000 pieces)
Measuring Capacitance Range(+ from /Min. order: 1,000 pieces)
View details
Product descriptions from the supplier
Customizable
1 - 299 pieces
$1308
300 - 599 pieces
$1258
>= 600 pieces
$1207
Sample price: $13.08
Variations
Select nowColor: Black
Instrument Counts
9999
Customization options
Measuring Current Range (Min. order: 1,000 pieces)
Measuring Voltage Range (Min. order: 1,000 pieces)
Measuring Capacitance Range (Min. order: 1,000 pieces)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
