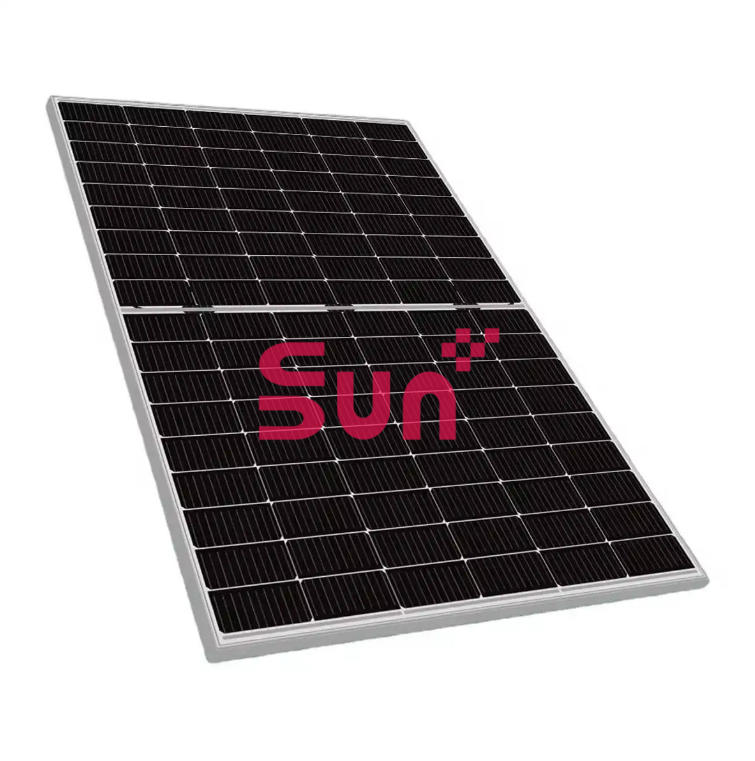

Sunplus Well-made 535W 540W 545W 550W Dual Glass Perc Solar PV Panels for Home Solar System
No reviews yet
Attributes
182mmx182mmCell size

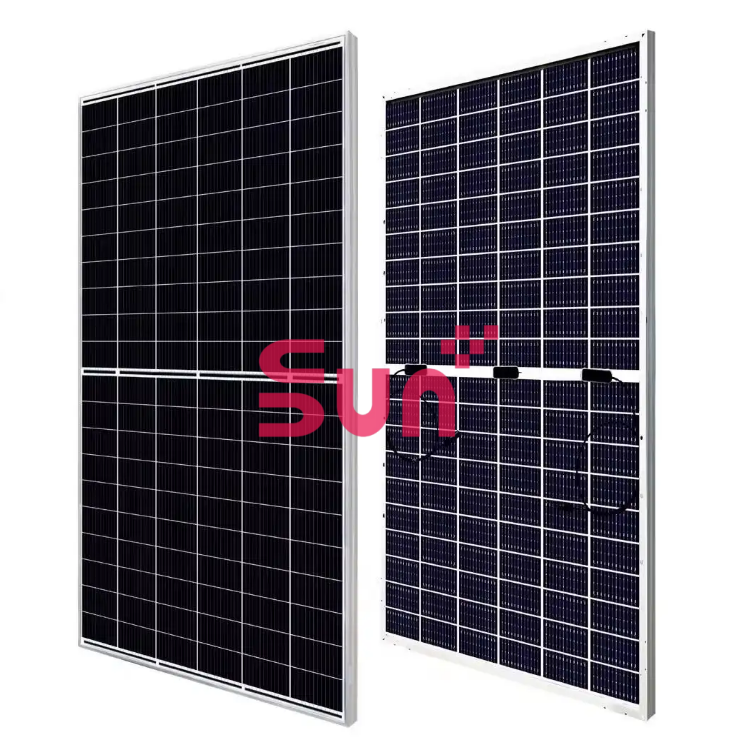

PERC, Bifacial, Double-glassType
21.3%Panel Efficiency
Jakarta Raya, IndonesiaPlace of Origin
2278x1134x30mm(88.68x44.65x1.18inches)Panel Dimensions
Sunplus Optimum IncBrand Name
Model Number:SR4-72HBD 535W 540W 545W 550W
Cell Type:Monocrystalline
Weight:32.2kg (71lbs.)
Cable Length(Including Connector):Portrait:(+)350 mm,(-)250 mm Length can be customized
Cable Cross Section Size:4mm² (IEC), 12AWG(UL)
Front Glass:Dual glass, 2.0+2.0mm heat strengthened glass
Connector type (IEC/UL):HCB40 (Standard)/ MC4-EVO2A(Optional)
Packing Configuration (1):36pcs/carton,720pcs/40hq
Frame:Anodized Aluminium Alloy
Junction Box:IP68,3 diodes
Key attributes
Cell size
182mmx182mm
Type
PERC, Bifacial, Double-glass
Panel Efficiency
21.3%
Place of Origin
Jakarta Raya, Indonesia
Panel Dimensions
2278x1134x30mm(88.68x44.65x1.18inches)
Brand Name
Sunplus Optimum Inc
Model Number
SR4-72HBD 535W 540W 545W 550W
Cell Type
Monocrystalline
Weight
32.2kg (71lbs.)
Cable Length(Including Connector)
Portrait:(+)350 mm,(-)250 mm Length can be customized
Cable Cross Section Size
4mm² (IEC), 12AWG(UL)
Front Glass
Dual glass, 2.0+2.0mm heat strengthened glass
Connector type (IEC/UL)
HCB40 (Standard)/ MC4-EVO2A(Optional)
Packing Configuration (1)
36pcs/carton,720pcs/40hq
Frame
Anodized Aluminium Alloy
Junction Box
IP68,3 diodes
Packaging and delivery
Selling Units
Single item
Single package size
227.8X113.4X3 cm
Single gross weight
30.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 36 pieces)
Customized packaging(+ from /Min. order: 36 pieces)
Graphic customization(+ from /Min. order: 36 pieces)
View details
Product descriptions from the supplier
36 - 719 pieces
$6420
>= 720 pieces
$5350
Variations
Select nowMax. Power: 545W
545W
540W
550W
535W
Material: Monocrystalline Silicon
Monocrystalline Silicon
Power Range: 535-550W
535-550W
Number of Cells
144
Customization options
Customized logo (Min. order: 36 pieces)
Customized packaging (Min. order: 36 pieces)
Graphic customization (Min. order: 36 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
