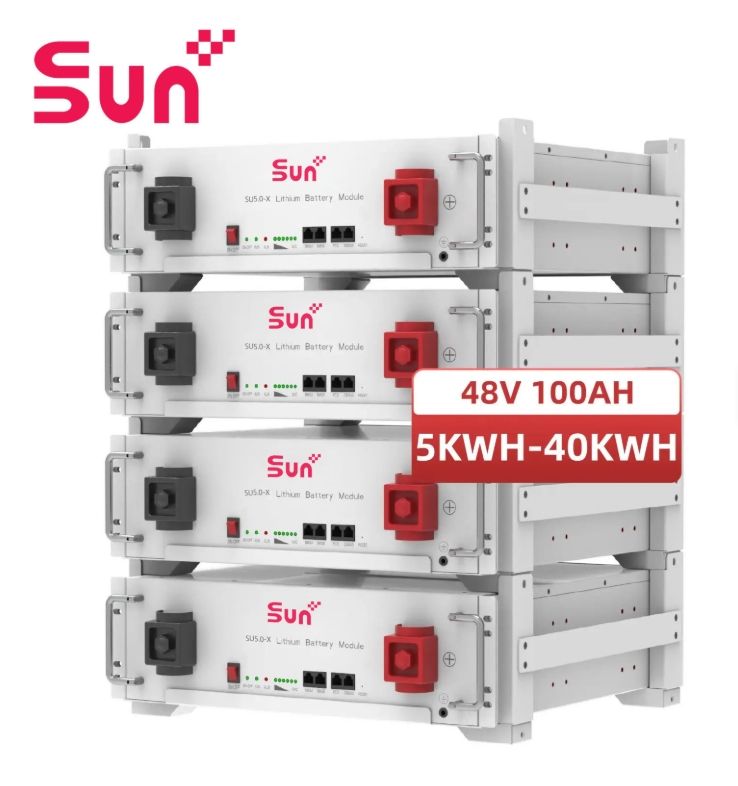

Sunplus Tier 1 Bill of Material 5.12 kWh 100ah Stackable Storage Battery for Home Solar System with 10 Years Warranty
No reviews yet
Attributes
Lithium IonBattery Type
51.2 VSystem Voltage
0-5 kWhOutput Power Range
Off grid, Hybrid gridGrid connection
All-In-OneType
StackableSystem Type
Place of Origin:Jakarta Raya, Indonesia
Model Number:SPI_SU_5.0_X_5kWh
Brand Name:Sunplus Optimum Inc

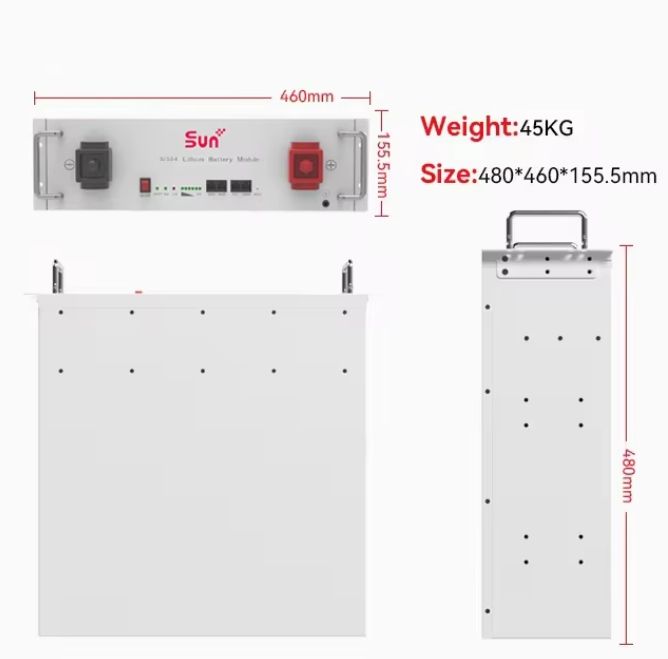

Dimension (L*W*H):[W*D*H] 480*460*155.5mm
Weight:45kg

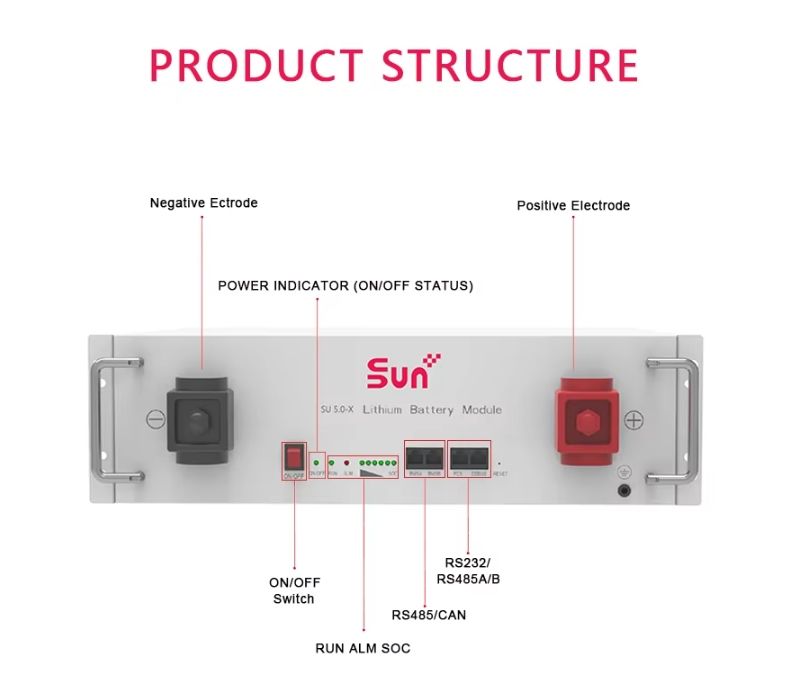

Communication Port:CAN, Rs485
Protection Class:IP20
Nominal Battery Energy:5.12kwh
Nomianl Capacity:100ah
Nomianl Voltage:51.2V
Charging Cut-off Voltage:57.6V
Discharging End-off Voltage:40V
Recommended Charge /Discharge Current:50A
Max.Power Charge /Discharge Current:100A
Peak Power Charge /Discharge Current:200A(5s)
Charging Temp.Range:0-50℃
Discharging Temp. Range:-20-60℃
Warranty:10 Years
Key attributes
Battery Type
Lithium Ion
System Voltage
51.2 V
Output Power Range
0-5 kWh
Grid connection
Off grid, Hybrid grid
Type
All-In-One
System Type
Stackable
Protection Class
IP20
Communication Port
CAN, Rs485
Place of Origin
Jakarta Raya, Indonesia
Model Number
SPI_SU_5.0_X_5kWh
Brand Name
Sunplus Optimum Inc
Dimension (L*W*H)
[W*D*H] 480*460*155.5mm
Weight
45kg
Nominal Battery Energy
5.12kwh
Nomianl Capacity
100ah
Nomianl Voltage
51.2V
Charging Cut-off Voltage
57.6V
Discharging End-off Voltage
40V
Recommended Charge /Discharge Current
50A
Max.Power Charge /Discharge Current
100A
Peak Power Charge /Discharge Current
200A(5s)
Charging Temp.Range
0-50℃
Discharging Temp. Range
-20-60℃
Warranty
10 Years
Packaging and delivery
Selling Units
Single item
Single package size
60X60X60 cm
Single gross weight
50.000 kg
Lead time
Customization options
Customized logo (Min. order: 10 pieces)
Customized packaging (Min. order: 10 pieces)
Graphic customization (Min. order: 10 pieces)
View details
Product descriptions from the supplier
Customizable
1 - 9 pieces
$800
>= 10 pieces
$750
Variations
Select nowColor: White
Output voltage: 51.2V
51.2V
Capacity: 5KWH
5KWH
Energy
5 kW
Customization options
Customized logo (Min. order: 10 pieces)
Customized packaging (Min. order: 10 pieces)
Graphic customization (Min. order: 10 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
