Attributes
Three Phase, TripleOutput Type
99.0%Inverter Efficiency
Jiangsu, ChinaPlace of Origin

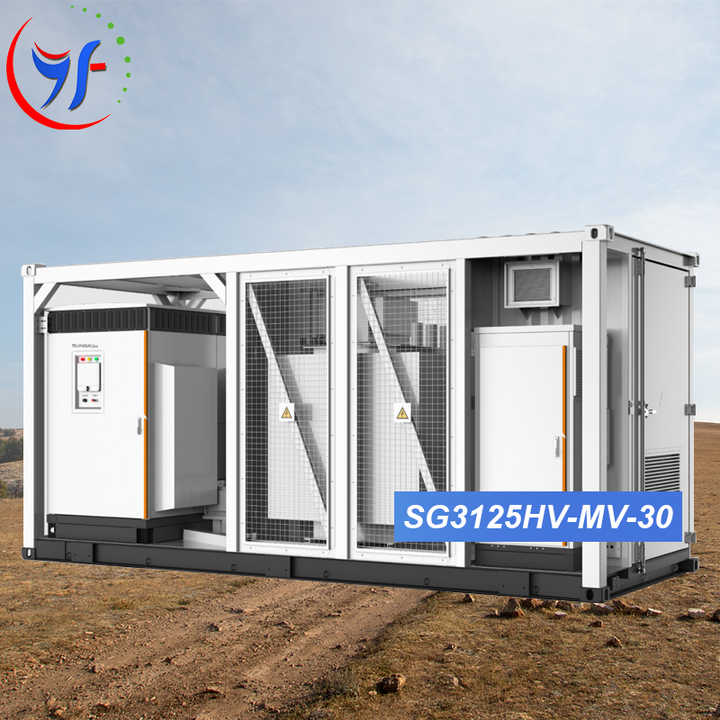

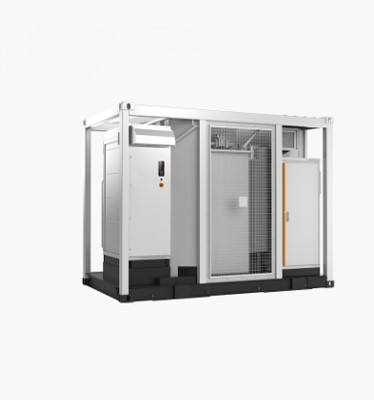

SG3125HV-MV-30Model Number
SUNGROWBrand Name
875 V / 915 VInput Voltage
Output Voltage:20 kV -35 kV
Output Current:3308 A
Output Frequency:50 Hz / 45 - 55 Hz, 60 Hz / 55 -65 Hz
Size:6058 * 2896 * 2438 mm
Type:DC/AC Inverters
Weight:15T
No. of independent MPP inputs:2
Max. PV input current:3997 A
Transformer rated power:3125 kVA
LV / MV volatage:0.6 kV / (20 -35) kV
Q at night function:Optional
Auxiliary power supply:5 kVA (optional: max. 40 kVA)
Display:Touch screen
No. of DC inputs:16 / 18 / 22 / 24 / 28 (max. 24 for floating system)
DC input protection:Load break switch + fuse
Degree of protection:Inverter: IP65 / Others: IP54
Warranty:10years
Certificate:CE, IEC 62109, IEC 61727, IEC 62116, IEC 62271-20
