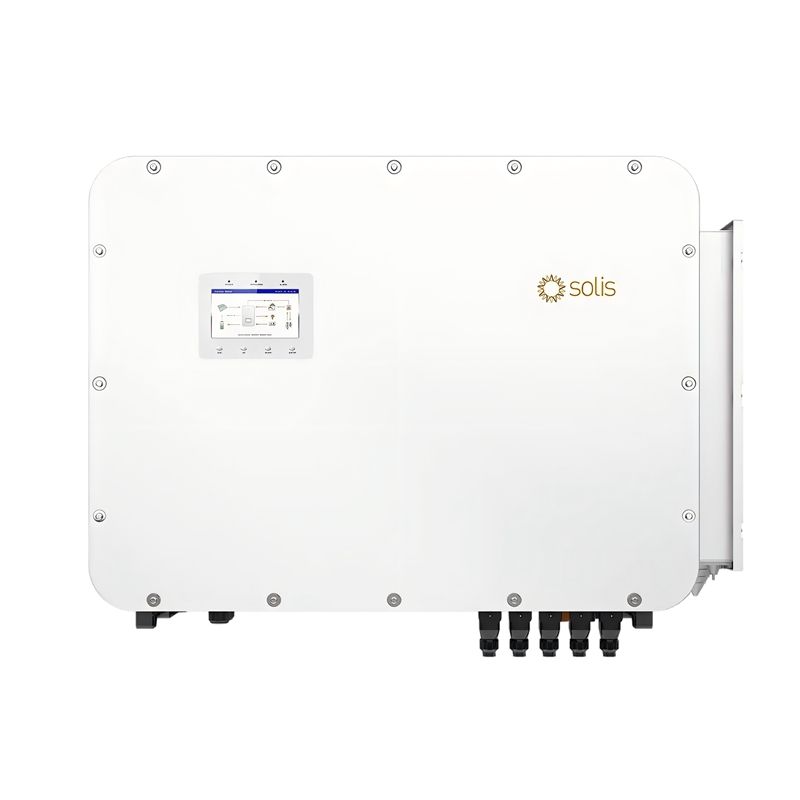

Solis S6-EH3P(75-125)K10-NV-YD-H C&I Hybrid Inverter 75-125kW Three Phase High Voltage Li-ion Battery 97.6% Efficiency Energy
No reviews yet
Attributes
Three PhaseOutput Type
DC/AC InvertersType
SolisBrand Name
97.6%Inverter Efficiency
Zhejiang, ChinaPlace of Origin
S6-EH3P(75-125)K10-NV-YD-HModel Number
Input Voltage:600 V
Output Voltage:220V/380V,230V/400V
Output Current:250A
Output Frequency:50Hz/60Hz
Size:1174*814*400 mm
Weight:170 kg
Max. input voltage:1000 V
Start-up voltage:180 V
MPPT voltage range:150 - 950 V
MPPT number / Max. input strings number:10 / 20
Battery type:Li-ion
Battery voltage range:300 - 950 V
Number of battery ports:2
Communication:CAN / RS485
Ingress protection:IP66
Safety / EMC standard:IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Key attributes
Output Type
Three Phase
Type
DC/AC Inverters
Brand Name
Solis
Inverter Efficiency
97.6%
Place of Origin
Zhejiang, China
Model Number
S6-EH3P(75-125)K10-NV-YD-H
Input Voltage
600 V
Output Voltage
220V/380V,230V/400V
Output Current
250A
Output Frequency
50Hz/60Hz
Size
1174*814*400 mm
Weight
170 kg
Max. input voltage
1000 V
Start-up voltage
180 V
MPPT voltage range
150 - 950 V
MPPT number / Max. input strings number
10 / 20
Battery type
Li-ion
Battery voltage range
300 - 950 V
Number of battery ports
2
Communication
CAN / RS485
Ingress protection
IP66
Safety / EMC standard
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 9 sets
$8,100
10 - 49 sets
$7,500
>= 50 sets
$6,000
Variations
Select nowApplication: Hybrid Solar System
Hybrid Solar System
Output Power: 75KW(100.58hp)
75KW(100.58hp)
80KW(107.28hp)
99.9KW(133.97hp)
100KW(134.10hp)
125KW(167.63hp)
Inverter Type
String Inverter
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
