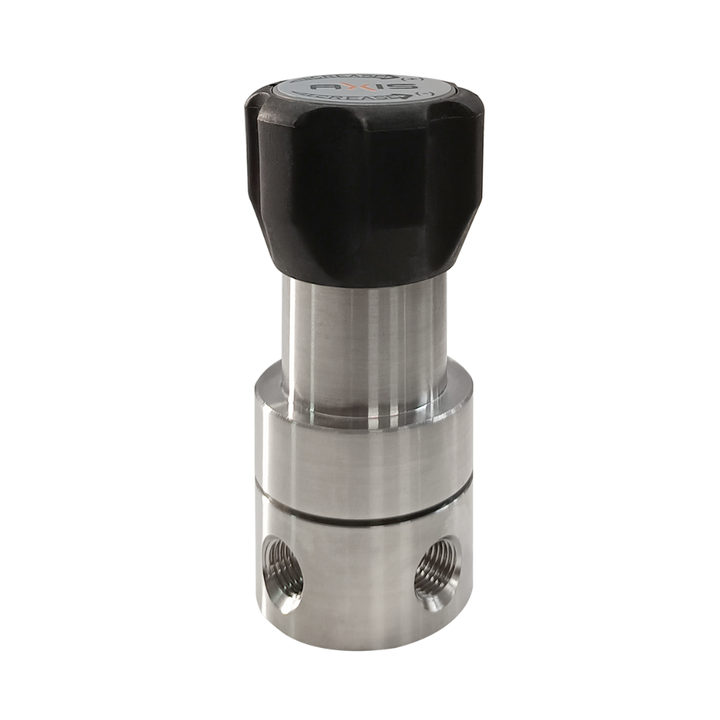

Axis Single Stage PRG1 SS 316 Pressure Regulator for Helium and Natural Gas Control with 1 Year Warranty
No reviews yet
Attributes
Oxygen, Nitrogen, Natural Gas, Helium, CO2, He, Airsuitable gas
Gas Regulator, Single Stage Pressure Regulator, Single Stage Gas Regulator, Control Valve, Sample Valvetype
1 Yearwarranty
OEM, ODM, OBMcustomized support
Gujarat, Indiaplace of origin
PRG1model number
brand name:Axis
material:SS 316
size:128x53x53 mm
Material:Wetted part (Housing) - SS 316
Inlet connection:1/4" NPT (F)
Outlet connection:1/4" NPT (F)
Fluid:Water & Steam
Regulating Pressure:1.4 bar (20 psig), under normal operating conditions
Seat Material:PTFE / PCTFE
Diaphgram:Nitrile / Metallic
Flow capacity:Cv=0.06
Inlet Filter:5μ
Inlet Pressure:Max. 250 bar (3625.94 psig)
Key attributes
suitable gas
Oxygen, Nitrogen, Natural Gas, Helium, CO2, He, Air
type
Gas Regulator, Single Stage Pressure Regulator, Single Stage Gas Regulator, Control Valve, Sample Valve
warranty
1 Year
customized support
OEM, ODM, OBM
brand name
Axis
material
SS 316
model number
PRG1
place of origin
Gujarat, India
size
128x53x53 mm
Material
Wetted part (Housing) - SS 316
Inlet connection
1/4" NPT (F)
Outlet connection
1/4" NPT (F)
Fluid
Water & Steam
Regulating Pressure
1.4 bar (20 psig), under normal operating conditions
Seat Material
PTFE / PCTFE
Diaphgram
Nitrile / Metallic
Flow capacity
Cv=0.06
Inlet Filter
5μ
Inlet Pressure
Max. 250 bar (3625.94 psig)
Packaging and delivery
Selling Units
Single item
Package size per batch
5.3X5.3X12.8 cm
Gross weight per batch
4.000 kg
Lead time
Customization options
SS Material(+ from /Min. order: 20 pieces)
View details
Product descriptions from the supplier
Lower priced than similar
1 - 19 pieces
$120
20 - 49 pieces
$95
50 - 99 pieces
$80
>= 100 pieces
$70
