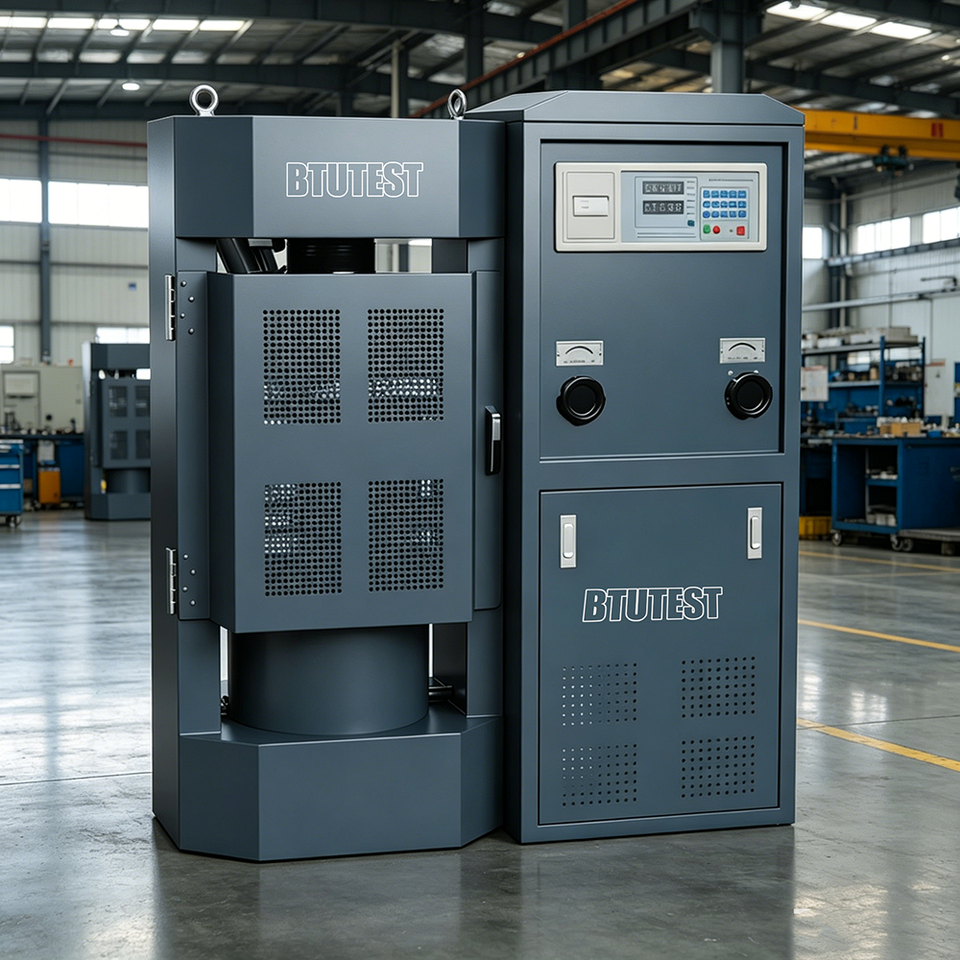

Semi-Automatic ASTM Compression Testing Machine 2000kN CE Concrete Cube Cylinder Block Integrated Host Oil Source Large Platens

No reviews yet
$2,999
1-2 sets
$2,700
≥3 sets
Select now

Accuracy

±1%

Force Range

2000KN

Key attributes

Platens Size

Ø300 mm

Resolution

Class 1

Type

Hydraulic Compression Testing Machine

Place of Origin

Hebei, China

Input Voltage

220V AC 3 Phase / 380V (customizable)

Model Number

BTU-DYE (Model DYE-2000H)

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Platens Size
Ø300 mm
Resolution
Class 1
Type
Hydraulic Compression Testing Machine
Place of Origin
Hebei, China
Input Voltage
220V AC 3 Phase / 380V (customizable)
Model Number
BTU-DYE (Model DYE-2000H)
Brand Name
BTUTEST
Standards
ASTM C39/C109/ C1314 EN12390 3/772 1 BS 1881 AASHTO T22 IS07500 1
Piston Stroke (mm)
0 to 50
Effective Space Between Columns (mm)
400
Crushing Space (mm)
340
Overall Power (kW)
1.0 (oil pump motor 0.75kW)
Test Machine Grade
Level 1
Host Structure
One piece frame (integrated oil source)
Main Frame Dimensions (mm)
900*420*1250
Loading Rate Control
1 kN/s to 25 kN/s
Measurement
Pressure transducer + highprecision spoke sensor

Packaging and delivery

Selling Units
Single item
Single volume
0 cm³
Single gross weight
0.0 kg

Lead time
