Attributes
HUAXINBrand Name
1Y32.768VPModel Number
3000pcs/discPackaging Type
25+Manufacturing Date Code
32.768KHzFrequency
Guangdong, ChinaPlace of Origin

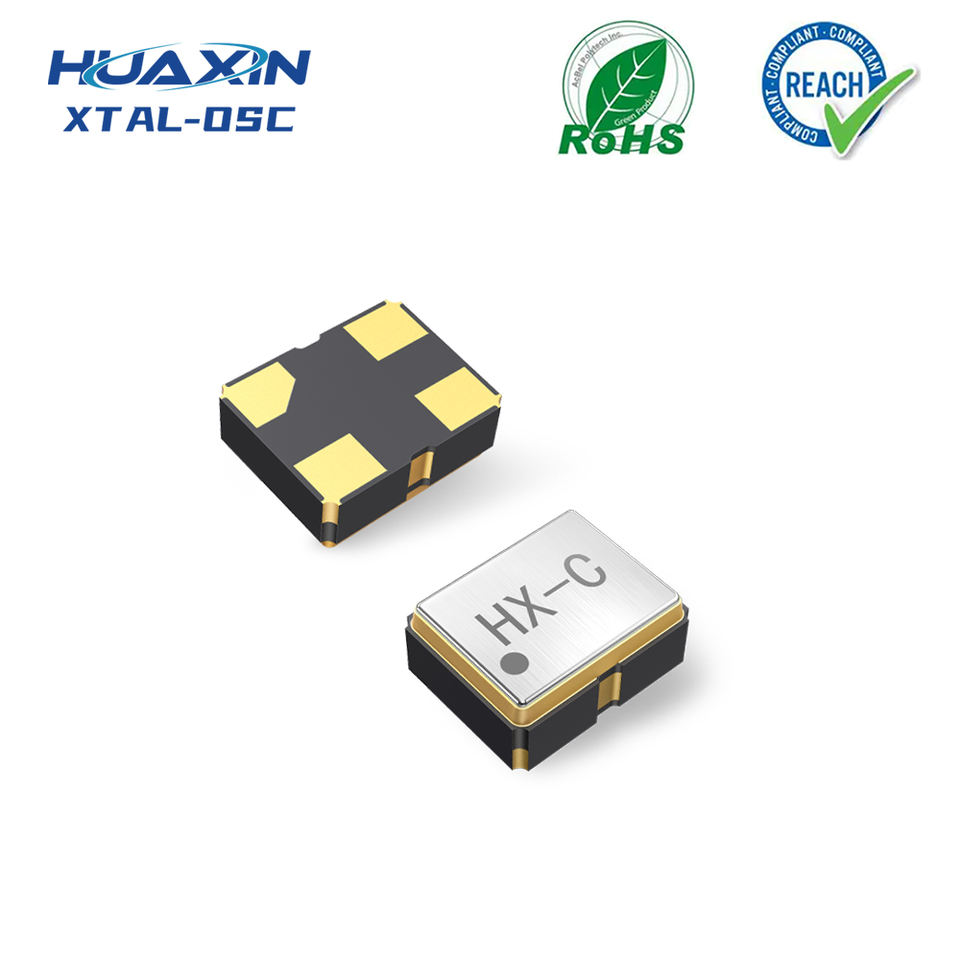

Description:Active Crystal Oscillator
Specification:1 ~ 160MHZ
Application:Camera, phone screen, router, optical module, etc
Package / Case:SMD 2016
Series:1Y
Features:4 Pad

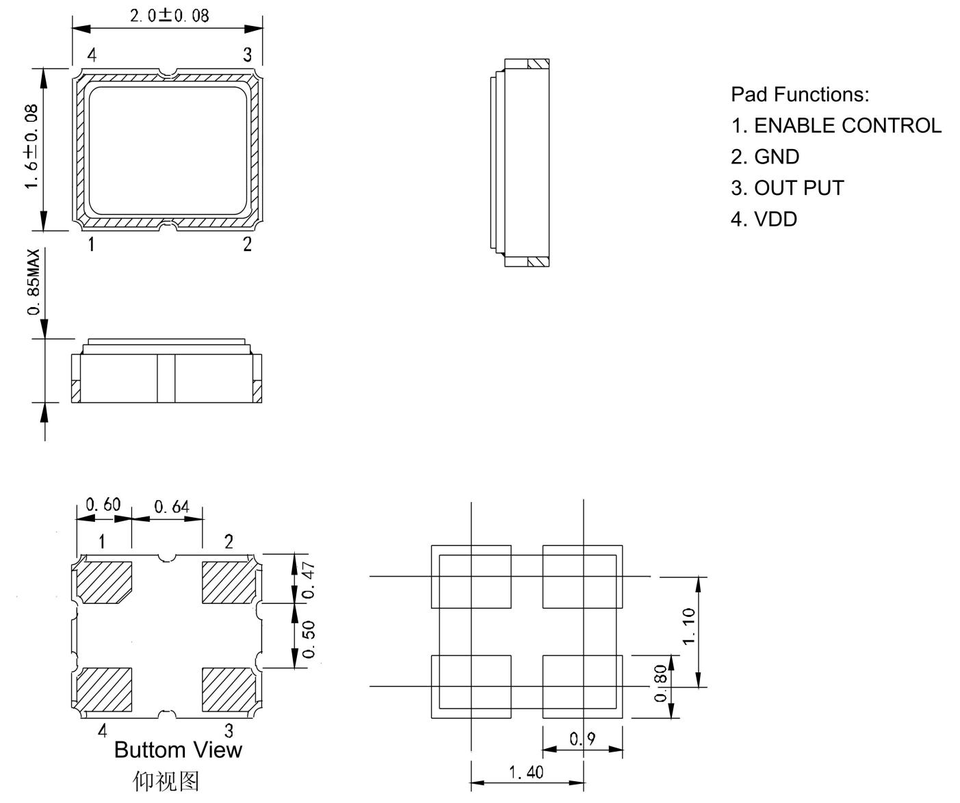

Size / Dimension:2.0 x 1.6 x 0.75 mm
Operating Temperature:-40 ~ +85 ℃
Base Resonator:OSC
Voltage - Supply:1.8V ~ 3.3V
Frequency Tolerance:± 10ppm
Supply Voltage:1.8V ~ 3.3V
Output Type:CMOS
Output Load:15pF
Aging:± 2ppm
Selling Units:Single item
Single package size:0.2X0.16X0.075 cm
Single gross weight:0.008 kg
