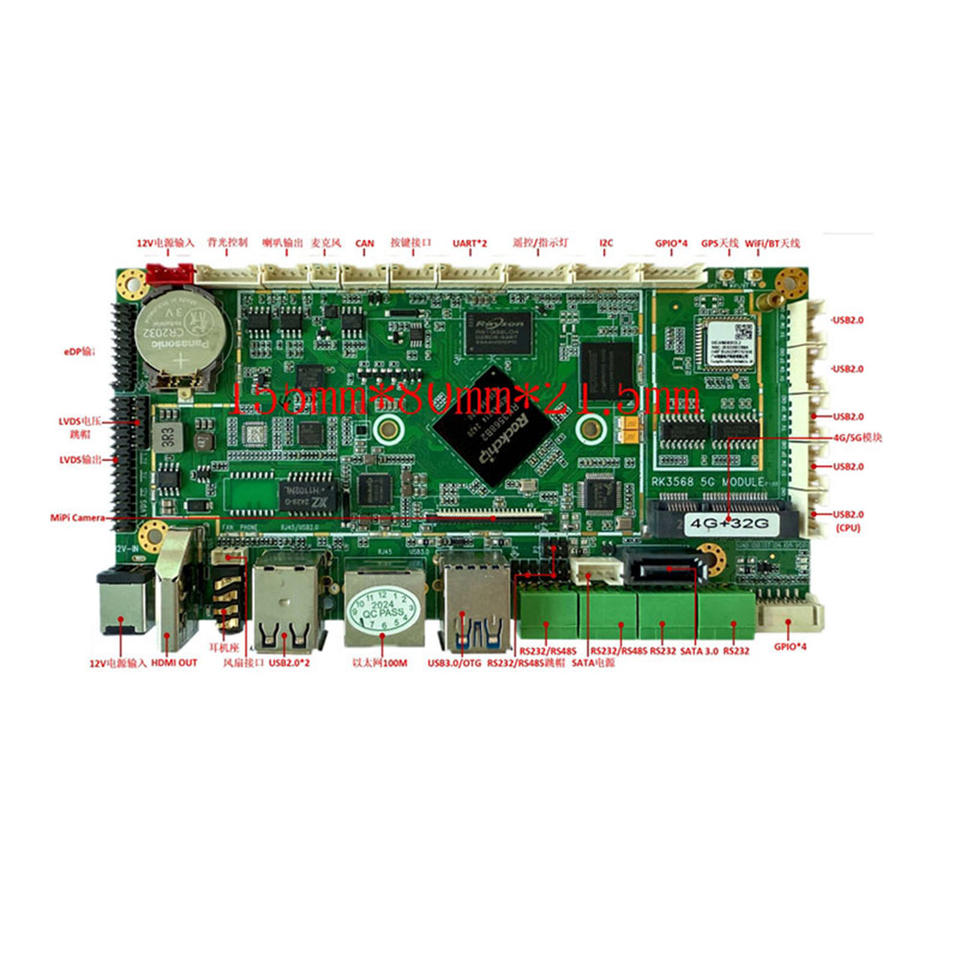

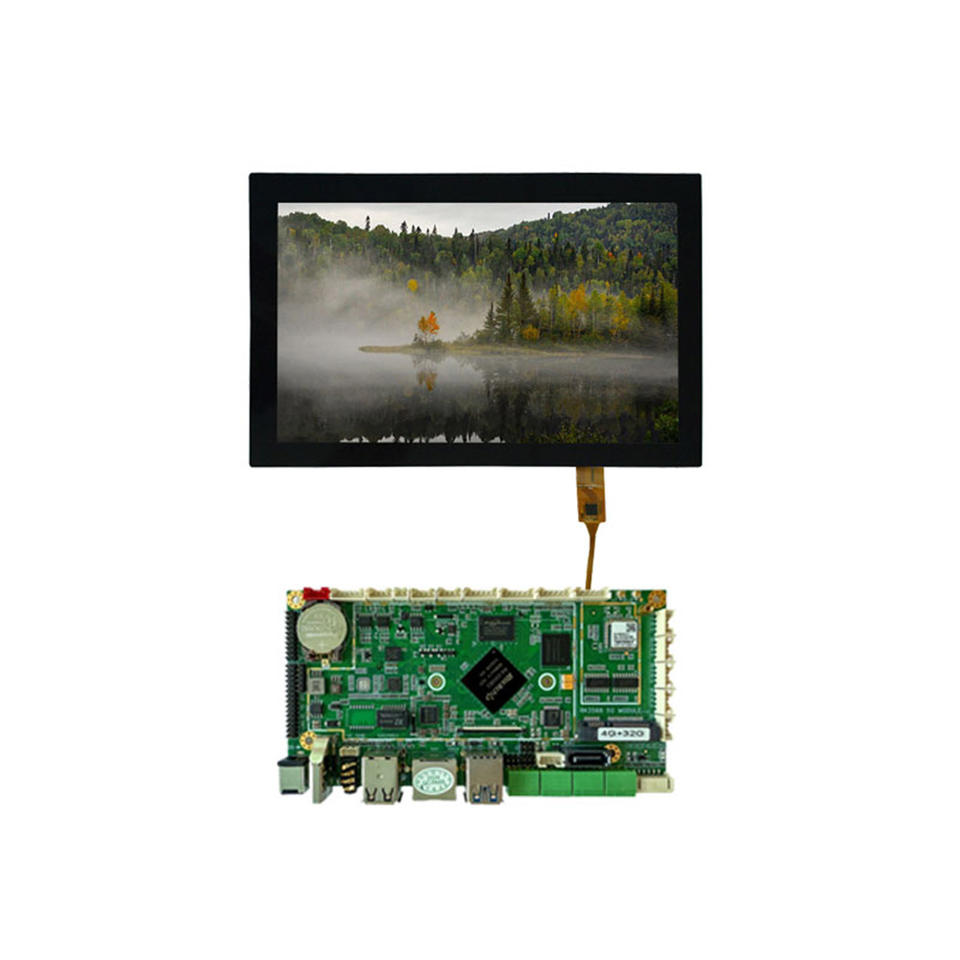

Rk3568 Motherboard Customized 7-24 Inch TFT LCD Display 1920*1080 With Touchscreen
Store rating:5.0
(72 reviews)
Attributes
TFTType
1920X1080Resolution
TFTDisplay Type
7~24 inchDisplay Size
Guangdong, ChinaPlace of Origin
0~70℃Operating Temperature
Screen Size:customized
CPU:Rockchip RK3568 2GHz Cortex-A55 quad-core Mali-G52-2EE GPU with NPU
Memory:LPDDR4 2GB, supports up to 8GB
Built-in storage:EMMC 16G, supports up to 256GB
Decoding resolution:Supports 1080P, 4K, H.265 hard decoding
Operating system:Android 11
Gravity sensor support:Onboard G-sensor (optional)
Image format:Supports BMP, JPEG, PNG, GIF, etc.
USB port:4 USB 2.0, 2 USB3.0 (1 USB OTG)
Special Function:USB automatically imports screen parameters
TP interface:1 I2C interface
GPIO interface:4 GPIO ports
EDP output:1 EDP, maximum support 2560*1600
Key attributes
Type
TFT
Resolution
1920X1080
Display Type
TFT
Display Size
7~24 inch
Place of Origin
Guangdong, China
Operating Temperature
0~70℃(0~126℉)
Screen Size
customized
CPU
Rockchip RK3568 2GHz Cortex-A55 quad-core Mali-G52-2EE GPU with NPU
Memory
LPDDR4 2GB, supports up to 8GB
Built-in storage
EMMC 16G, supports up to 256GB
Decoding resolution
Supports 1080P, 4K, H.265 hard decoding
Operating system
Android 11
Gravity sensor support
Onboard G-sensor (optional)
Image format
Supports BMP, JPEG, PNG, GIF, etc.
USB port
4 USB 2.0, 2 USB3.0 (1 USB OTG)
Special Function
USB automatically imports screen parameters
TP interface
1 I2C interface
GPIO interface
4 GPIO ports
EDP output
1 EDP, maximum support 2560*1600
