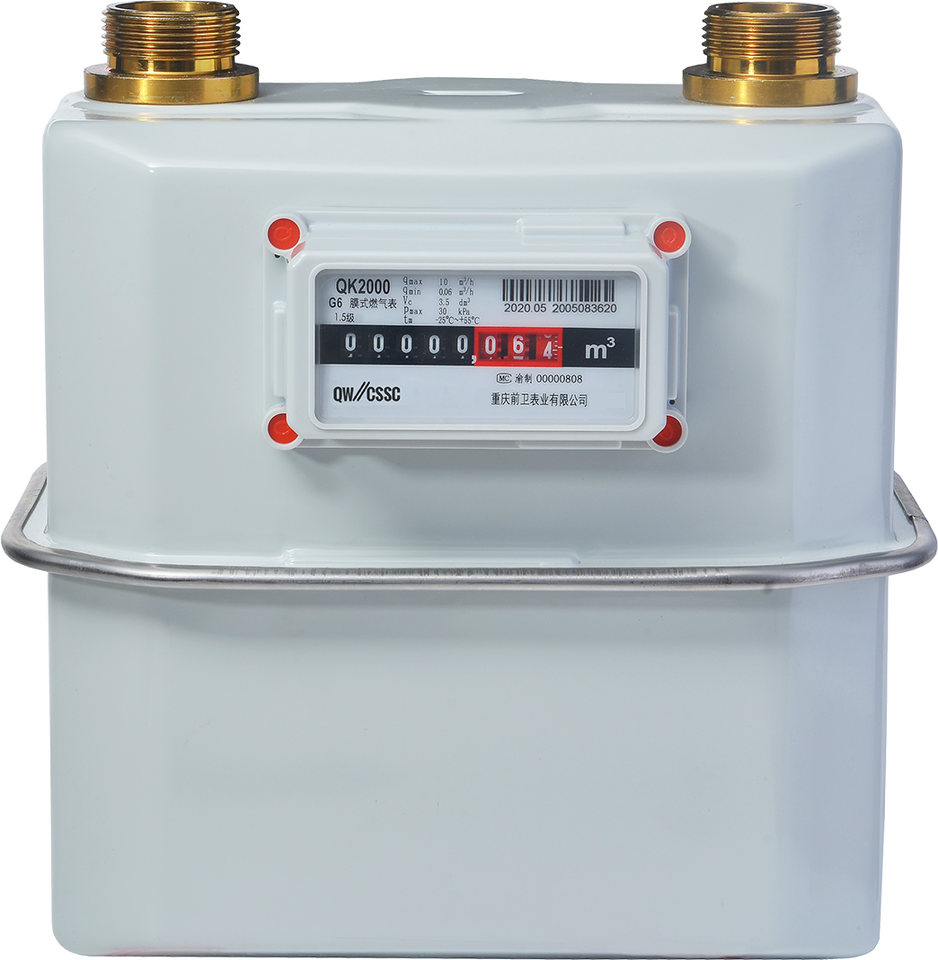

Reliable Corrosion-Resistant Industrial-Grade G6 Steel Casing Diaphragm Type Gas Meter with Calibration Valve
No reviews yet
Attributes
Diaphragm/Bellows Meterstype
Stainless Steelmaterial
1 Yearwarranty
0.06-10 m³/hMeasurement Range
6 m³/hFlow Rate
Chongqing, Chinaplace of origin
Maximum Flow (Qmax, m³/h):10
Minimum Flow (Qmin, m³/h):0.06
Rated Flow (Qn, m³/h):6
Overload Flow (Qt, m³/h):12
Starting Flow (dm³/h):8
Rotational Volume Vc (dm³):3.5
Diameter (Center Distance) (mm):180
Working Pressure Range (kPa):0.5-30
Maximum Allowable Pressure Loss (Pa):200
Accuracy Class (Class):1.5
Minimum Reading of the Meter (dm³):0.2
Maximum Reading of the Meter (dm³):99999.999
Sealing Requirements:45kPa,30s
Meter Housing Material:Galvanized steel sheet
Connection Diameter Size:G1 1/4
Corrosion Protection Process:Galvanized steel sheet with powder coating
Operating Temperature Range (℃):-25~55
Operating Humidity (%):35-85
Product Weight (kg):3
Packaging method:310X248X365MM2(1 pieces per box)
Key attributes
type
Diaphragm/Bellows Meters
material
Stainless Steel
warranty
1 Year
Measurement Range
0.06-10 m³/h(2.12-353.15ft3/h)
Flow Rate
6 m³/h(211.89ft3/h)
place of origin
Chongqing, China
Maximum Flow (Qmax, m³/h)
10
Minimum Flow (Qmin, m³/h)
0.06
Rated Flow (Qn, m³/h)
6
Overload Flow (Qt, m³/h)
12
Starting Flow (dm³/h)
8
Rotational Volume Vc (dm³)
3.5
Diameter (Center Distance) (mm)
180
Working Pressure Range (kPa)
0.5-30
Maximum Allowable Pressure Loss (Pa)
200
Accuracy Class (Class)
1.5
Minimum Reading of the Meter (dm³)
0.2
Maximum Reading of the Meter (dm³)
99999.999
Sealing Requirements
45kPa,30s
Meter Housing Material
Galvanized steel sheet
Connection Diameter Size
G1 1/4
Corrosion Protection Process
Galvanized steel sheet with powder coating
Operating Temperature Range (℃)
-25~55
Operating Humidity (%)
35-85
Product Weight (kg)
3
Packaging method
310X248X365MM2(1 pieces per box)
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
logo(+ from /Min. order: 1 piece)
Packaging (+ from /Min. order: 1 piece)
Pattern(+ from /Min. order: 1 piece)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 piece
$60
Variations
Select nowaccuracy: 1.5
1.5
model number
QK2000G6
Customization options
logo (Min. order: 1 piece)
Packaging (Min. order: 1 piece)
Pattern (Min. order: 1 piece)
