QY Solar Deep Well Pump 3300W 154m Head 9m/H | DC 48V Dual Voltage Adaptation High Durability Stainless Steel High Pressure |
Store rating:4.6
(218 reviews)
Attributes
Water Treatment Solutionsapplication
Multistage Pumpstructure
9m³/hMax Flow Rate
1.54MPaMax Pressure
Solar Poweredpower source
WaterChemical Compatibility
Sealing Material:PTFE + Stainless Steel
Impeller Material:Stainless Steel
Applicable temperature:-10℃ ~ 60℃
outlet size:1.25" (32mm)
Import Size:1.25"
Connection Type:Threaded Connection
suction head:154
Outlet Type:Male Threaded Outlet
Discharge Pipe Size:1.25"
Inlet Height:120
Flow Rate:9m³/h
Displacement:N/A
Material:Stainless Steel (304/316)
Control Method:Solar MPPT Controller
motor:DC Permanent Magnet Brushless Motor
Surface Treatment:Anti-corrosion Electroplating
Membrane material:N/A
warranty:1 Years
customized support:OEM, ODM, Color
cable length:3m
horsepower:3 HP
pressure:High Pressure
Dwell time:N/A
Hardness:Hardened Stainless Steel (HRC 40-45)
Flow Meter Specification:N/A

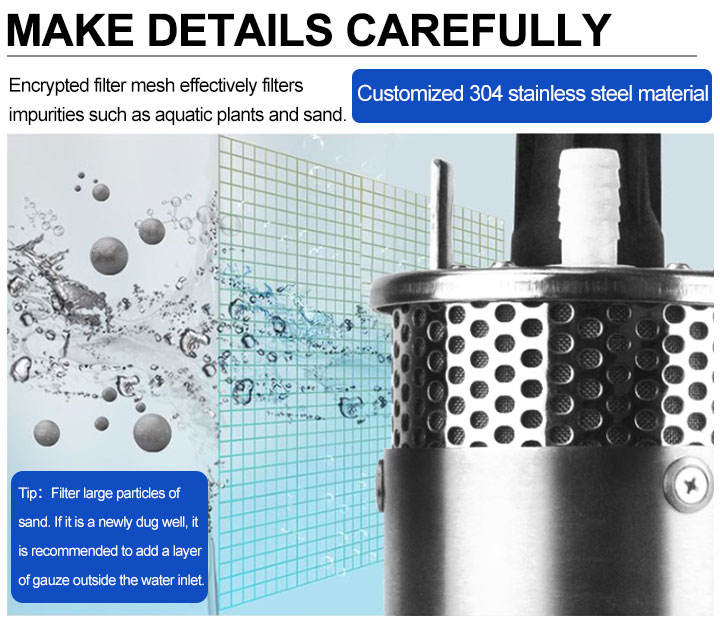

Filter material:Stainless Steel Mesh
Outlet Water Oil Content:0
model number:3JC9-154-D220/2200
place of origin:Fujian, China
brand name:QY
Name:3JC9-154-D220/2200
Interface type:Threaded Interface
Rated Flow:9m³/h
Rated Head:154m
Power:3300W
voltage:DC 48V
Outlet pressure ( Mpa ):1.54MPa
Key attributes
application
Water Treatment Solutions
structure
Multistage Pump
Max Flow Rate
9m³/h
Max Pressure
1.54MPa
power source
Solar Powered
Chemical Compatibility
Water
Sealing Material
PTFE + Stainless Steel
Impeller Material
Stainless Steel
Applicable temperature
-10℃ ~ 60℃
outlet size
1.25" (32mm)
Import Size
1.25"
Connection Type
Threaded Connection
suction head
154
Outlet Type
Male Threaded Outlet
Discharge Pipe Size
1.25"
Inlet Height
120
Flow Rate
9m³/h
Displacement
N/A
Material
Stainless Steel (304/316)
Control Method
Solar MPPT Controller
motor
DC Permanent Magnet Brushless Motor
Surface Treatment
Anti-corrosion Electroplating
Membrane material
N/A
warranty
1 Years
customized support
OEM, ODM, Color
cable length
3m
horsepower
3 HP
pressure
High Pressure
Dwell time
N/A
Hardness
Hardened Stainless Steel (HRC 40-45)
Flow Meter Specification
N/A
Filter material
Stainless Steel Mesh
Outlet Water Oil Content
0
model number
3JC9-154-D220/2200
place of origin
Fujian, China
brand name
QY
Name
3JC9-154-D220/2200
Interface type
Threaded Interface
Rated Flow
9m³/h
Rated Head
154m
Power
3300W
voltage
DC 48V
Outlet pressure ( Mpa )
1.54MPa
Packaging and delivery
Selling Units
Single item
Single package size
85X22X25 cm
Single gross weight
30.000 kg
Lead time
Customization options
cable length(+ from +$2/piece/Min. order: 10 pieces)
View details
Product descriptions from the supplier
Customizable
2 - 19 pieces
$202
20 - 99 pieces
$201
>= 100 pieces
$200
Sample price: $210
Variations
Select nowFlow Rate: 50 L/min(13.21gpm)
50 L/min(13.21gpm)
maximum head: 9
9
type: Well Pumps
Well Pumps
voltage
48V DC
Customization options
cable length+$2/piece (Min. order: 10 pieces)
