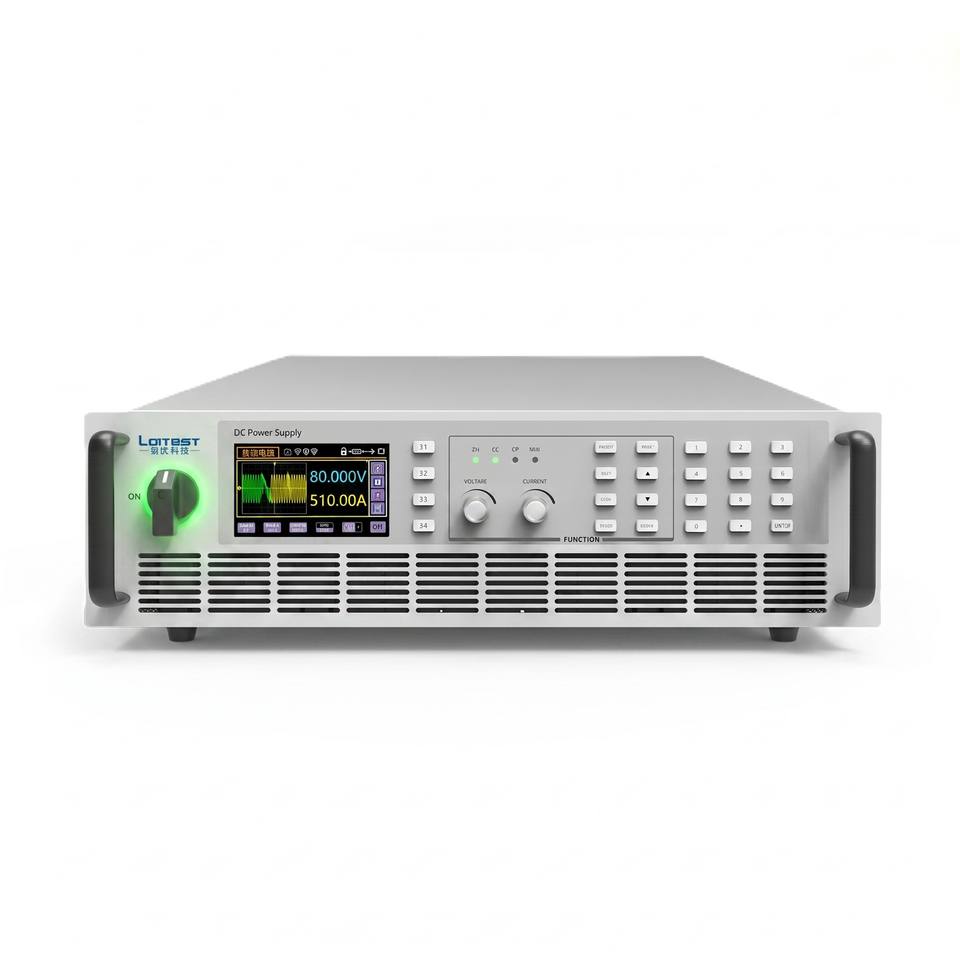

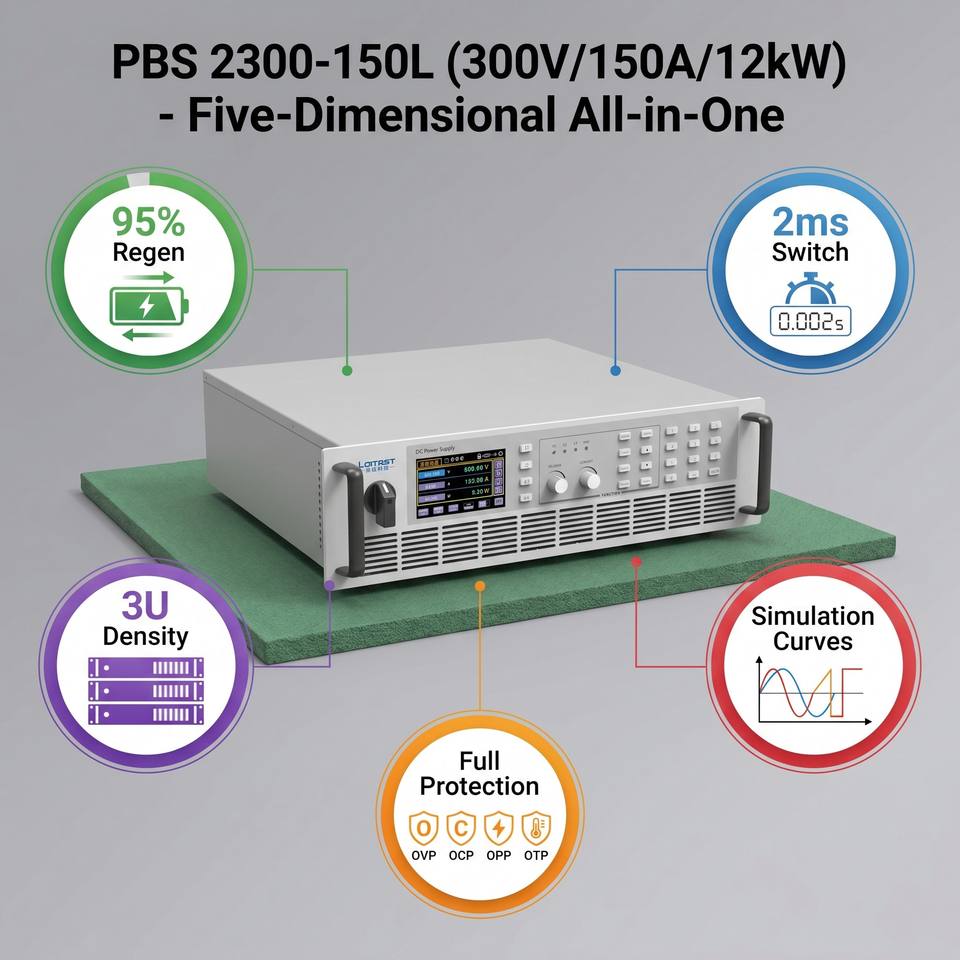

Programmable 3U Rack Mount Bidirectional Power System PBS 2300-150L (300V/150A/12kW) | for Advanced Battery Life Cycle Tester

No reviews yet
$4,003
Minimum order quantity: 1 unit
Select now

Output Power

±12kW

Key attributes

Input Voltage

342~528Vac/3Phase+GND, 45~66Hz

Output Current

-150A~+150A

Output Voltage

0-300V

Place of Origin

Jiangsu, China

Application

Battery Test, DC/DC Test, EV Component Test, BMS Test, EV Test System, Battery Simulator

Brand Name

LOITEST

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Input Voltage
342~528Vac/3Phase+GND, 45~66Hz
Output Current
-150A~+150A
Output Voltage
0-300V
Place of Origin
Jiangsu, China
Application
Battery Test, DC/DC Test, EV Component Test, BMS Test, EV Test System, Battery Simulator
Brand Name
LOITEST
Efficiency
≤93% High Efficiency
Model Number

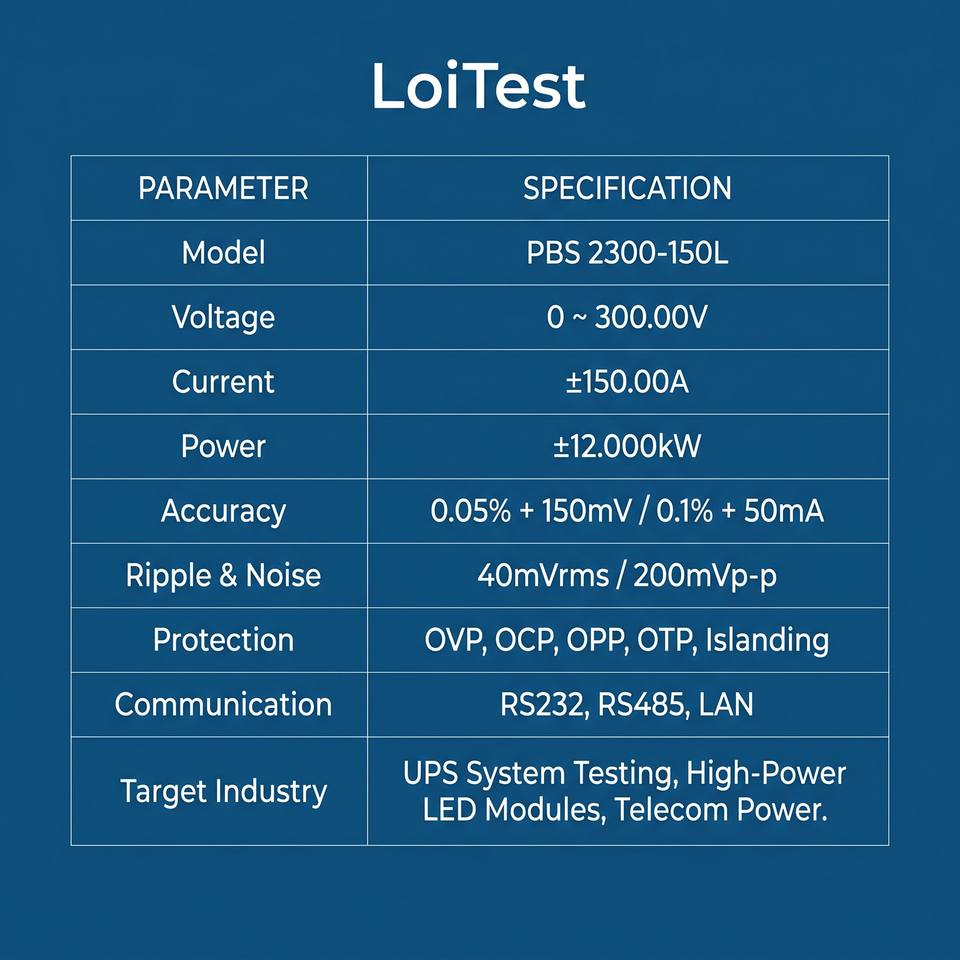

PBS 2300-150L
Output Type
Bidirectional Auto Range Regulated DC Output
Protection
Over Power Protection, Over Temperature Protection, Overcurrent Protection, Overvoltage Protection, Power-off, Islanding
Type

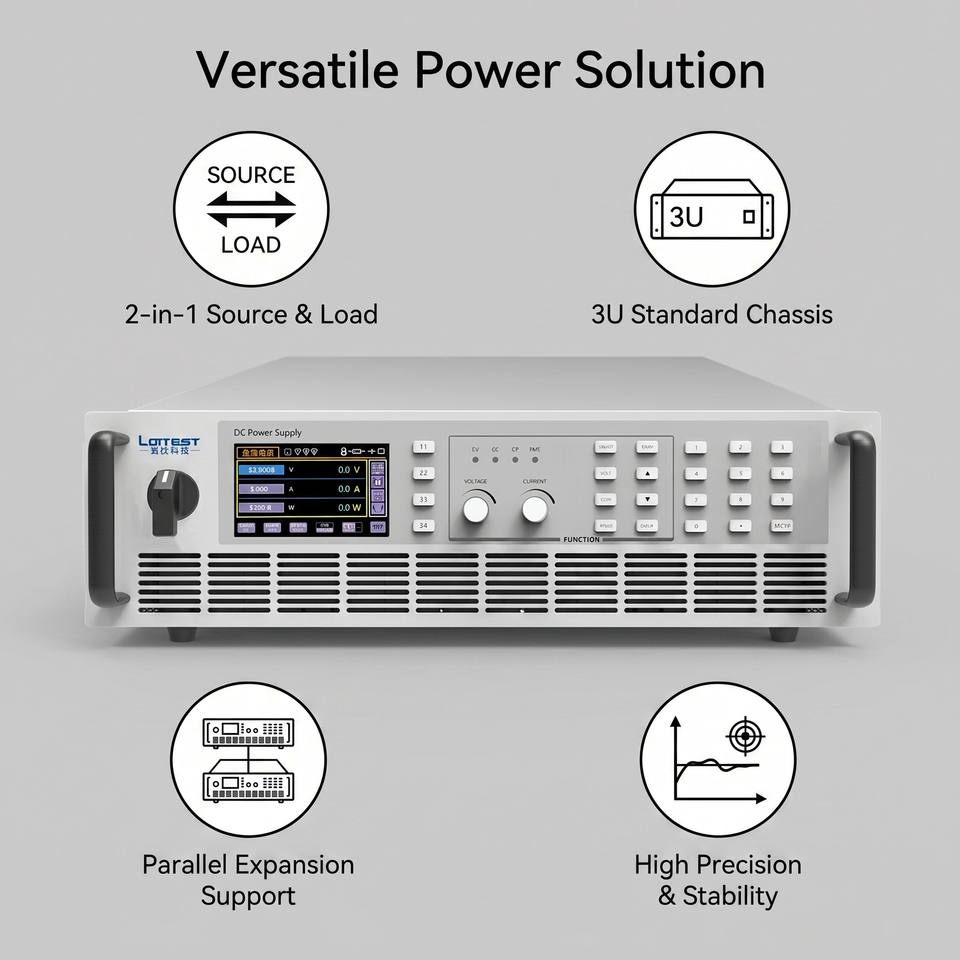

3U Rack Mount Bidirectional DC Power Supply
Form Factor
3U Standard Rack Mount (482*670*132mm)
Rated Power
12kW Bidirectional Output
Output Range
0-300V 150A Auto Range

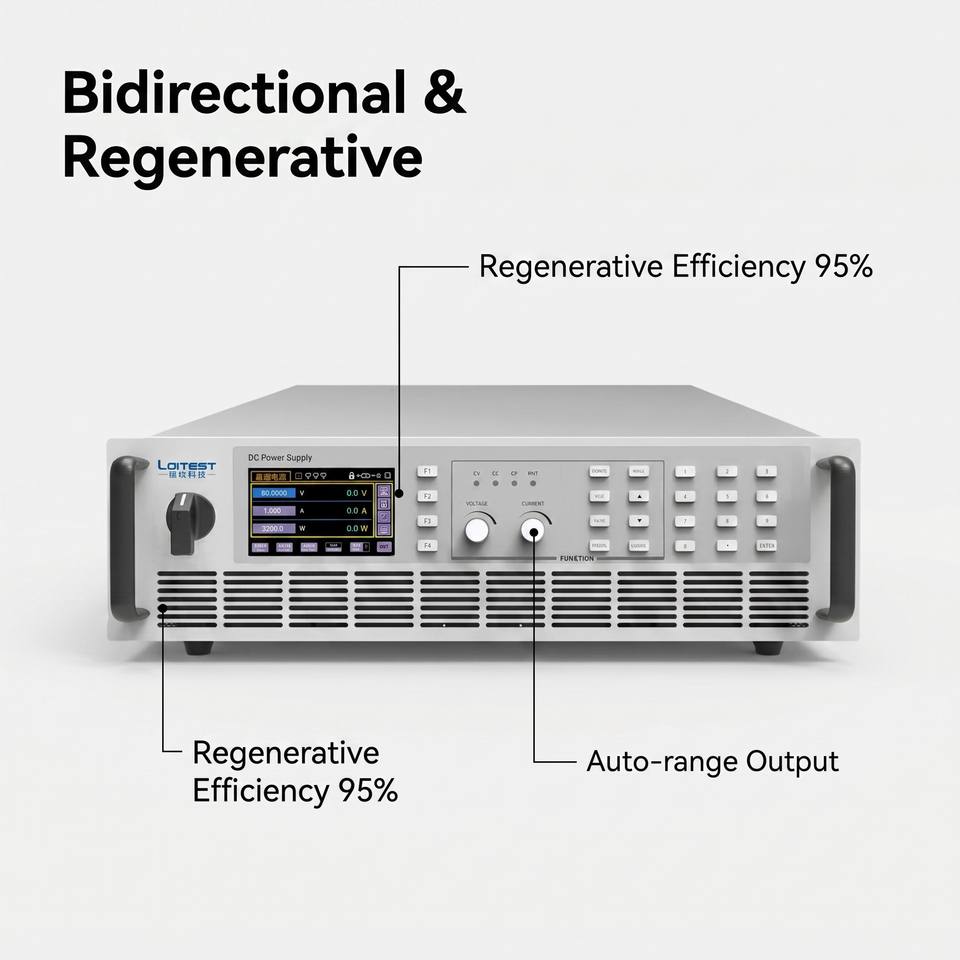

Energy Feedback
95% High Efficiency Grid Recovery
Power Conversion
≤93% High Conversion Efficiency
Input Compatibility
342-528Vac Three-Phase Wide Input
Cooling System
Smart Temp-Control Fan Cooling
Control Interface
RS485+LAN / RS232+LAN, SCPI Supported
Parallel Operation
Master-Slave Parallel Up to 36 Units
Working Environment
0-50c Operating, -20c-70c Storage

Packaging and delivery

Selling Units
Single item
Single package size
90X80X30 cm
Single gross weight
27.000 kg

Lead time
