Attributes
OriginalBrand Name
LM5109MAX/NOPBModel Number
Surface MountMounting Type
NewManufacturing Date Code
ChinaPlace of Origin
Component & PartProduct Completion Type

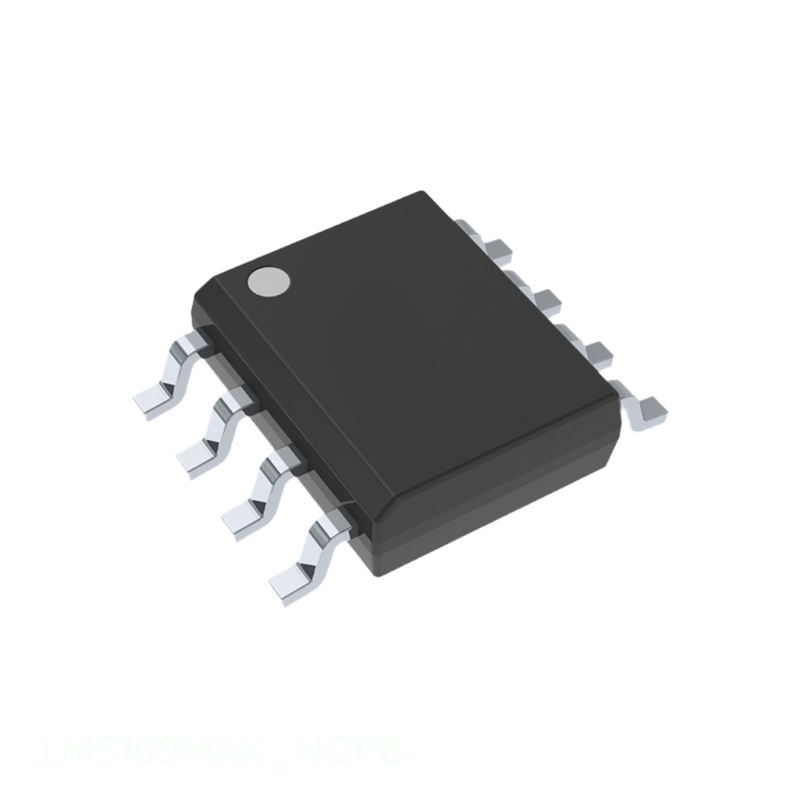

Description:IC GATE DRVR HALF BRIDGE 8SOIC
Application:Gate Drivers
Series:Power Management (PMIC)
Features:Kit Electronic Components
Output Voltage:8V ~ 14V
Output Type:Standard
Package:Tape & Reel (TR)
Driven Configuration:Half Bridge
Channel Type:Independent
Number of Drivers:2
Gate Type:N Channel MOSFET
Logic Voltage VIL, VIH:0.8V, 2.2V
Current Peak Output (Source, Sink):1A, 1A
Input Type:Non Inverting
High Side Voltage Max (Bootstrap):118 V
Rise / Fall Time (Typ):15ns, 15ns
