Attributes
Other, M5/M6/M8/1/4-28Mounting Type
not haveManufacturing Date Code
ZT-DR-01,02,03,04,05,06,07,08,09,10Model Number
Zhenzhong TestBrand Name

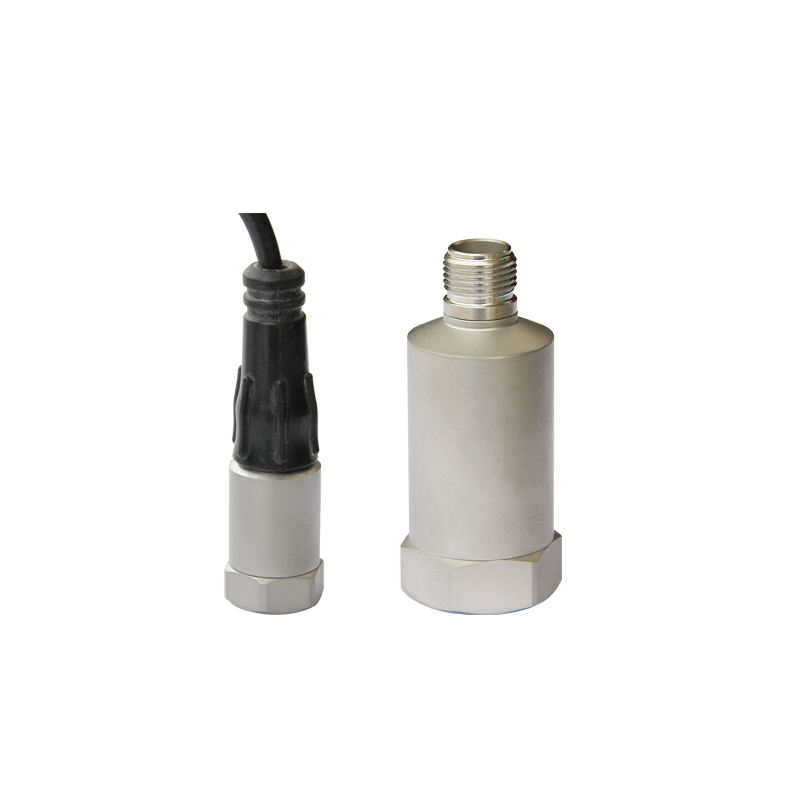

acceleration transducerUsage
±5v,4-20mA,1-5v,1-5v,±1.5vOutput
Description:Other
Place of Origin:Jiangsu, China
Series:acceleration transducer
Brand:Industrial accelerometer
Voltage - Supply:+12~+24VDC
Output Type:Overall outgoing line,Overall output line
Operating Temperature:-20~80℃
Features:PZT-5, not have
Frequency:0.5~6k 0.5~2k 0.5~5k 1~4k
Output Configuration:Overall outgoing line,Overall output line
Size / Dimension:Diameter20*50 ,25*54 ,27*58
Measuring Range:100~50 50~5 5000 2000 1000 Optional ±15g
Model ZT-DR-:01 02 03 04 05 06 07 08 09 10
Sensitivity mV (Pc)/g:50~100 100~1000 25Pc/g 50Pc/g 100Pc/g Customizable range 10-500 100
Output range:±5V 4-20mA 1-5V 0-5V ±1.5V
Frequency range Hz (± 3dB):0.5~6k 0.5~2k 0.5~5k 1~4k
Range g:100~50 50~5 5000 2000 1000 Optional ±15
Power supply mode:2~10mA 18~28VDCCharge amplifier DC:24V ±9~15V 2-10mA 5VDC
Weight Gram:42 82 100,80 130,40 80 100 100 100 100 100 42
Size mm:Diameter20*50 ,25*54 ,27*58
Output method:Overall outgoing line,Overall output line
Shell material:304 or 316 stainless steel
Selling Units:Single item
