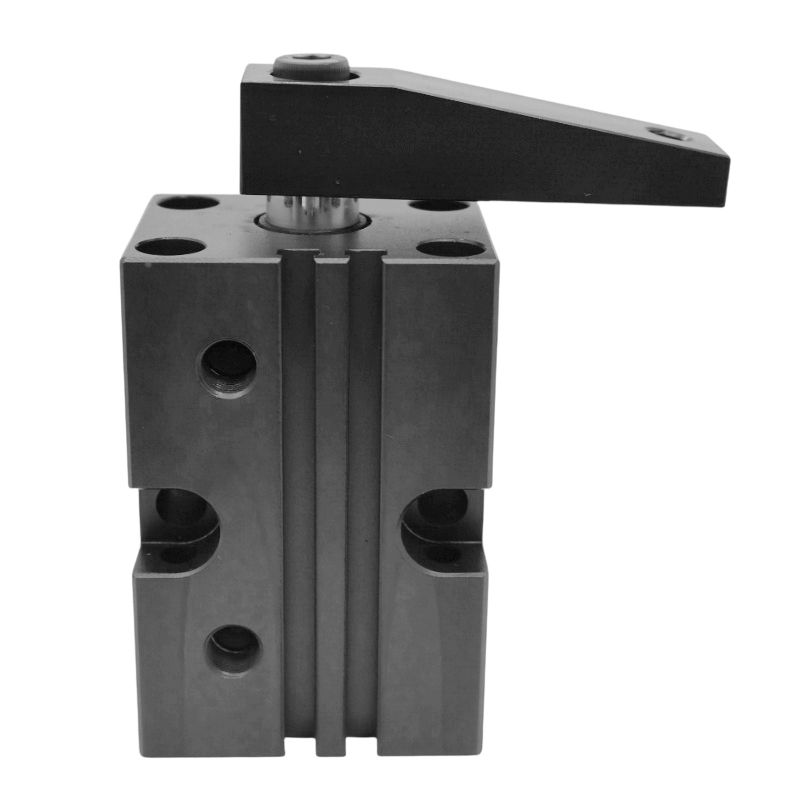

PSB -50 R/L Block Body Pneumatic Swing Clamp Cylinder for CNC Fixture and Automation Workholding
No reviews yet
$145
Minimum order quantity: 1 piece
Maximum Stroke
Shaft Diameter
Model Number
Key attributes
Power
Pneumatic
Structure
Swing Cylinder
Body Material
Aluminum
Warranty
1 Year
Standard or Nonstandard
Standard
Core Components
none
Shipping
Select shipping
Payment & financing
Buy now, pay later
Key attributes
Power
Pneumatic
Structure
Swing Cylinder
Body Material
Aluminum
Warranty
1 Year
Standard or Nonstandard
Standard
Core Components
none
Weight (kg)
0.3
Place of Origin
Taiwan
Brand Name
Flowtek
Product name
PSB Block Body Pneumatic Swing Clamp
Model Series
PSB
Base No.
PSB
Brand
Flowtek
Supplier
CLAMPWELL COMPANY LTD.
Country of Origin
Taiwan
Acting Type
Double acting
Working Medium
Compressed Air
Working Pressure
max 7 bar
Material
Aluminum alloy body; S45C hard chromed piston
Swing Angle
90 degrees (Left / Right)
Bore Size
50 mm
Piston Rod Dia.
20 mm
Clamping Stroke
15.5 mm
Effective Area
16.49 cm2
Clamping Force
1.02 kN @7 bar
Mounting
from above / from below / front face / rear face
Function
Swing then clamp; total stroke = swing stroke + clamp stroke
Sensor
Magnetic sensing, dual position (clamped/unclamped); KT-65
Application
CNC fixtures, robotic assembly lines, welding jigs, inspection
Packaging and delivery
Selling Units
Single item
