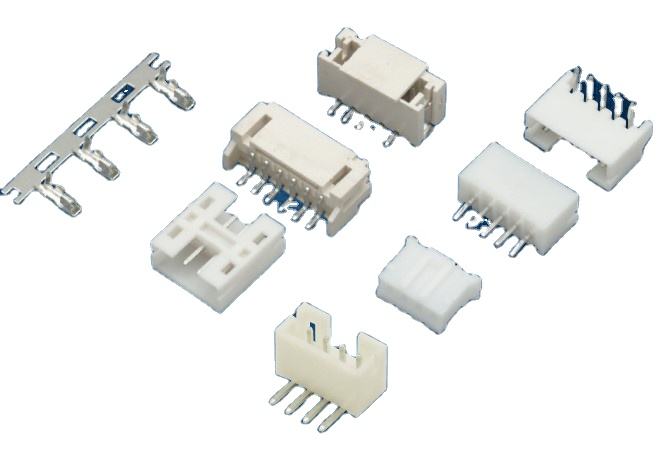

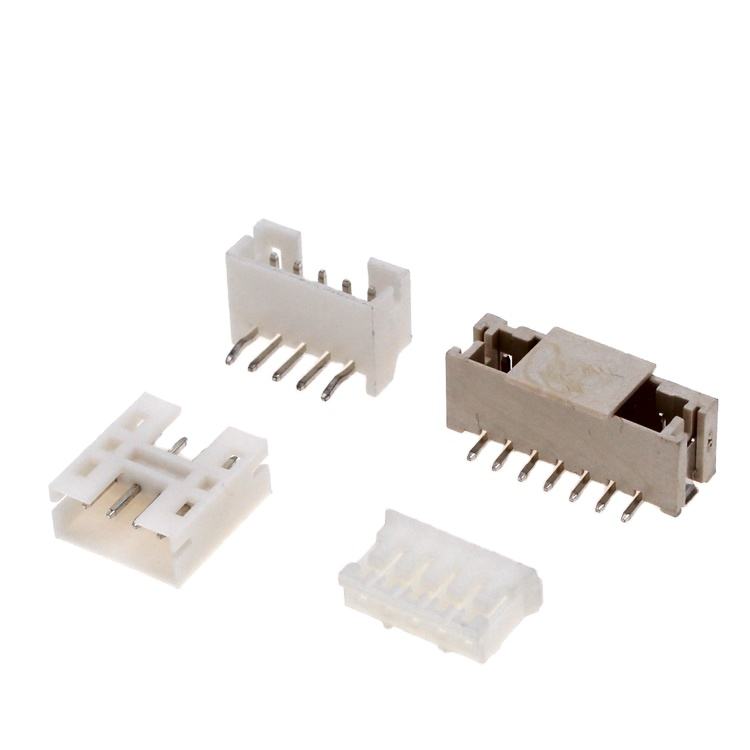

PH B6B-PH-K-S Nylon 66 Phosphor Bronze/Brass 2.0 Mm Pitch Wire to Board Connector 2-15pin Electrical Terminal Connector
Store rating:5.0
(4 reviews)
Attributes
PCBApplication
Wire-to-board connectorsType
1.5A, 2 ARated Current
12VRated Voltage
CopperContact Material
LCPHousing Material
Gender:all
Shape:Rectangle
Model Number:PH
Place of Origin:CHINA
Brand Name:ACP

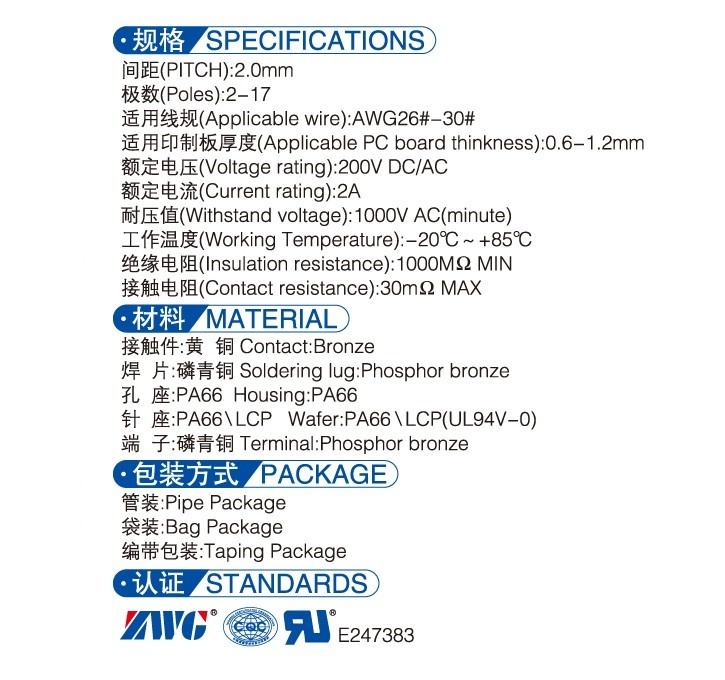

Pitch:2.0mm
poles:2-17
Voltage rating:200V DC/AC
Current Rating:2A
Withstand Voltage:1000V AC/(minute)
Insulation Resistance:1000MΩMIN
Contact Resistance:30MΩMAX
Applicable wire:AWG26#-30#
Contacts:Bronze
Housing:PA66/LCP
Key attributes
Application
PCB
Type
Wire-to-board connectors
Rated Current
1.5A, 2 A
Rated Voltage
12V
Contact Material
Copper
Housing Material
LCP
Gender
all
Shape
Rectangle
Model Number
PH
Brand Name
ACP
Place of Origin
Other
Pitch
2.0mm
poles
2-17
Voltage rating
200V DC/AC
Current Rating
2A
Withstand Voltage
1000V AC/(minute)
Insulation Resistance
1000MΩMIN
Contact Resistance
30MΩMAX
Applicable wire
AWG26#-30#
Contacts
Bronze
Housing
PA66/LCP
Packaging and delivery
Selling Units
Single item
Package size per batch
1X1X0.5 cm
Gross weight per batch
0.001 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Minimum order quantity: 100 pieces
$0.01-0.09
Sample price: $0.10
Variations
Select nowColor: White
Number of Cores: 1-core
1-core
Pins
2-17P
