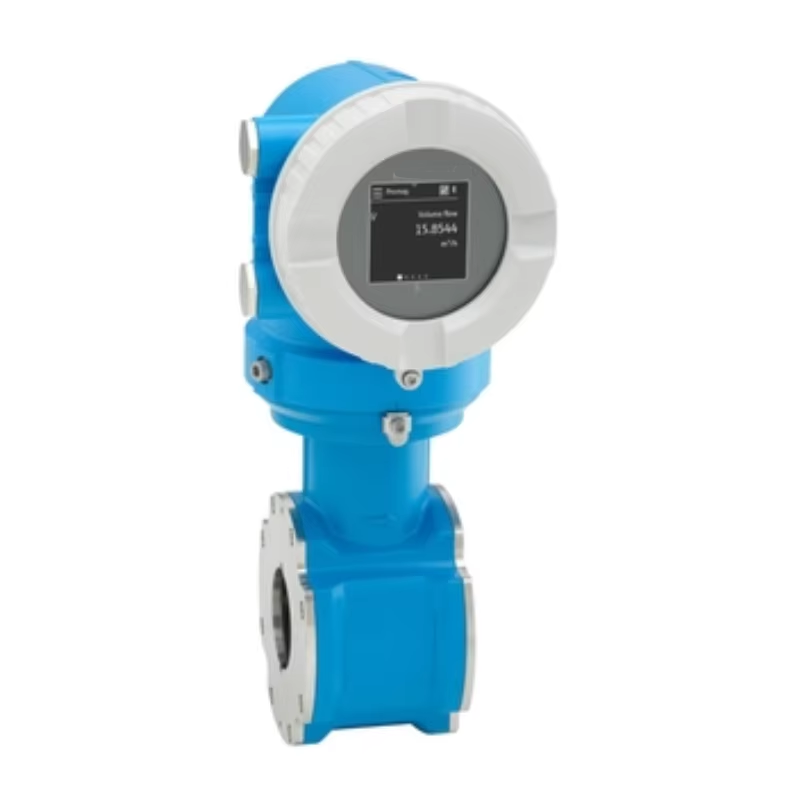

Original Proline Promag D10 5DBB Highly Cost-Effective Easy-to-Use Flowmeter Gas & OEM Customized

No reviews yet
$1,800
Minimum order quantity: 1 piece
Select now

dn

Dn100
DN50
Dn25
DN40
DN65
DN80

Key attributes

accuracy

0.5 %

Medium

Liquid, Gas

type

Electromagnetic Meters

place of origin

Switzerland

Connectivity

Flange

material

Stainless Steel, Plastic

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

accuracy
0.5 %
Medium
Liquid, Gas
type
Electromagnetic Meters
place of origin
Switzerland
Connectivity
Flange
material
Stainless Steel, Plastic
Measurement Range
9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min
model number
Proline Promag D 10(5DBB)
customized support
OEM, ODM, OBM
warranty
1 years
Max. measurement error
Volume flow (standard): 0.5 % o.r. 1 mm/s (0.04 in/s)
Measuring range
9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)
Medium temperature range
Liner material polyamide: 0 to +60.C (+32 to +140.F)
Max. process pressure
PN 16, Class 150, 10K
Wetted materials
Liner material polyamide: 0 to +60.C (+32 to +140.F)Electrodes: 316L
Nominal diameter range
DN 25 to 100 (1 to 4")
Digital communication
HART, MODBUS RS485
Display/Operation
LCD display with touch & auto rotate
Power supply
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Outputs
4-20 mA HART/Pulse/frequency/switch output Modbus RS485, 4-20 mA

Packaging and delivery

Selling Units
Single item
Single volume
0 cm³
Single gross weight
0.0 kg

Lead time
