Flange 90mm 4Nm 4A 2500RMP 90ST-M04025 220V AC 1KW Three-Phase Servo Motor IP65 RS485 T3L HLTNC 50/60Hz 12N.m 16mm Shaft

No reviews yet
$166.90
Minimum order quantity: 1 set
Select now

Output Power

1kw,220v,4Nm,2500rpm,90ST-M04025 set

Key attributes

AC Voltage

220V

Phase

Three-Phase

Rated Power

1 kW

Rated Speed

2500rpm

Model Number

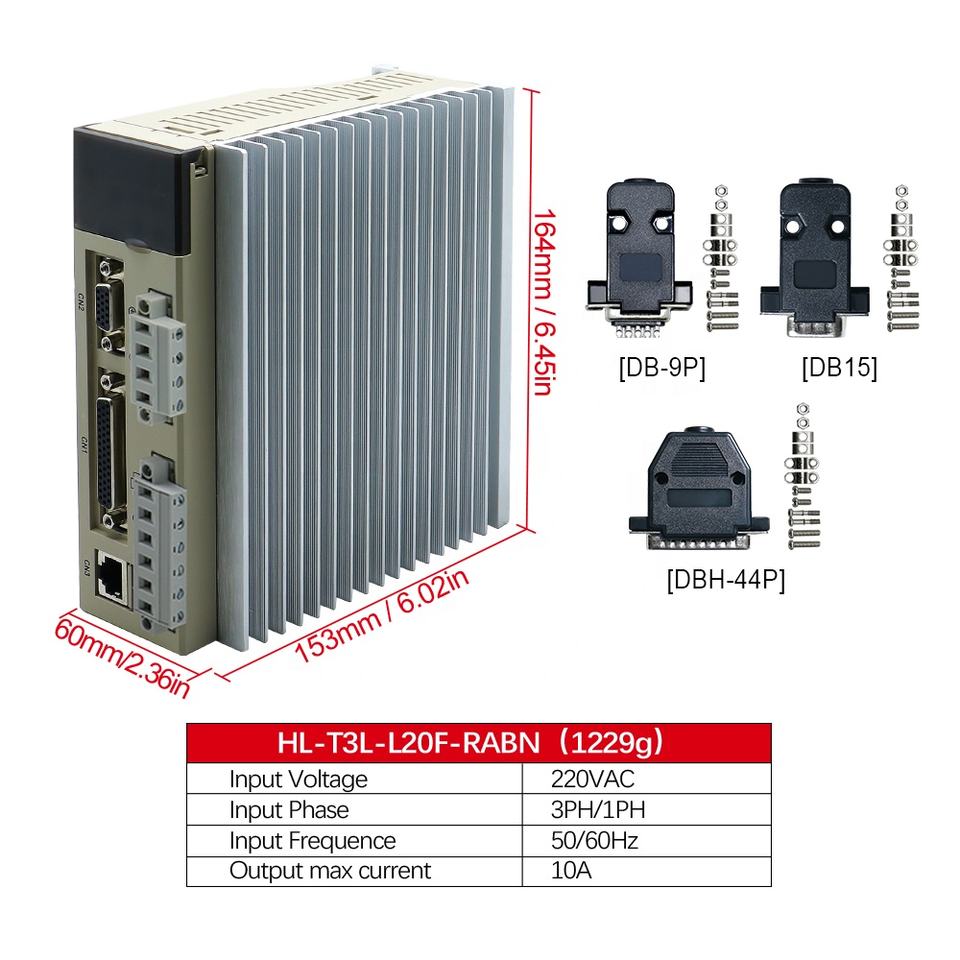

90ST-M04025+T3L-L20F-RABN

Brand Name

HLTNC

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

AC Voltage
220V
Phase
Three-Phase
Rated Power
1 kW
Rated Speed
2500rpm
Model Number
90ST-M04025+T3L-L20F-RABN
Brand Name
HLTNC
Place of Origin
Zhejiang, China
Motor Mounting Type
Flange
Frame
90mm
Frequency
50/60
Protect Feature
IP65
Type
Servo Motor
Warranty
Other
Product name
90 Servo Motor
Rated Current(A)
4
Rated Torque
4N.m
Peak torque
12N.m
Rated Speed
2500rmp
Voltage constant(V/100r/min)
60
Torque coefficient(N.m/A)
1
Shaft diameter
16mm
Line-Line resistance(Ω)
2.69
Line-Line inductance(mH)
6.21

Packaging and delivery

Selling Units
Single item
Single package size
50X40X40 cm
Single gross weight
12.0 kg
