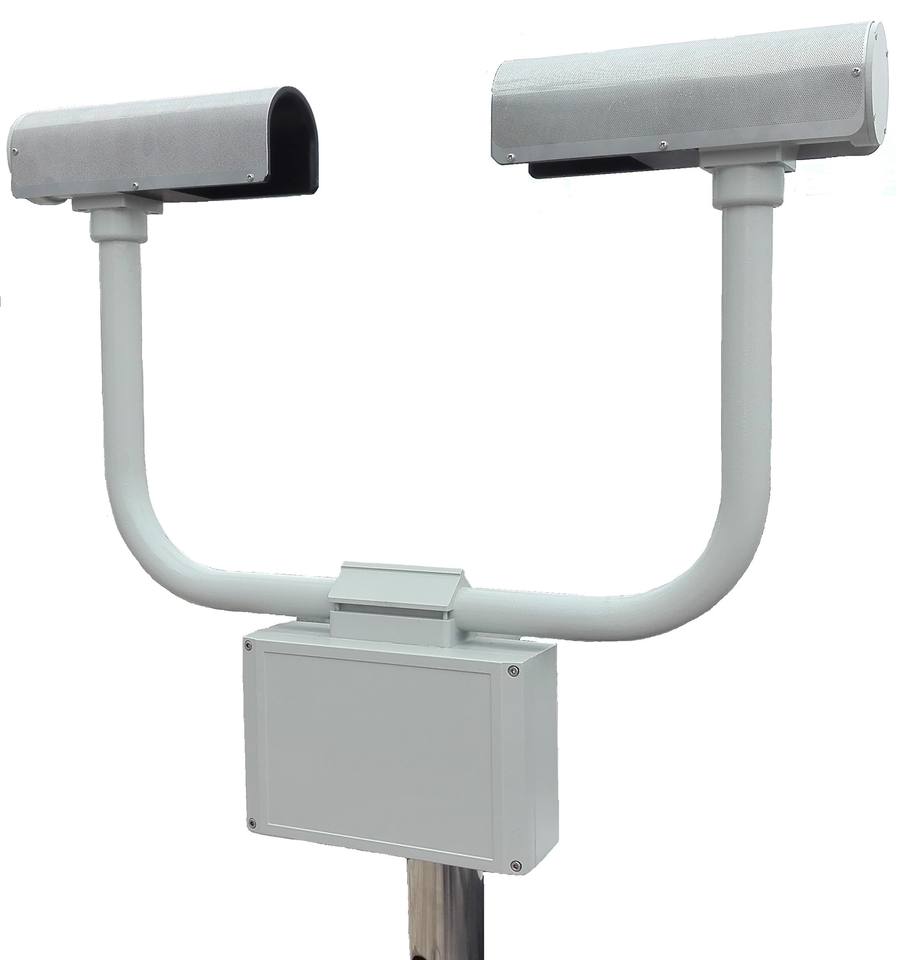

Optical Agriculture Rainstorm Particle Sensor for Flood Rain Monitoring Weather Sensor
No reviews yet
Attributes
pole mastMounting Type
2024Manufacturing Date Code
ASHUR-DP900Model Number
ASHURBrand Name
Electronic components,accessoriesUsage
opticalDescription
Place of Origin:Luoyang,China
Series:ASHUR-DP900

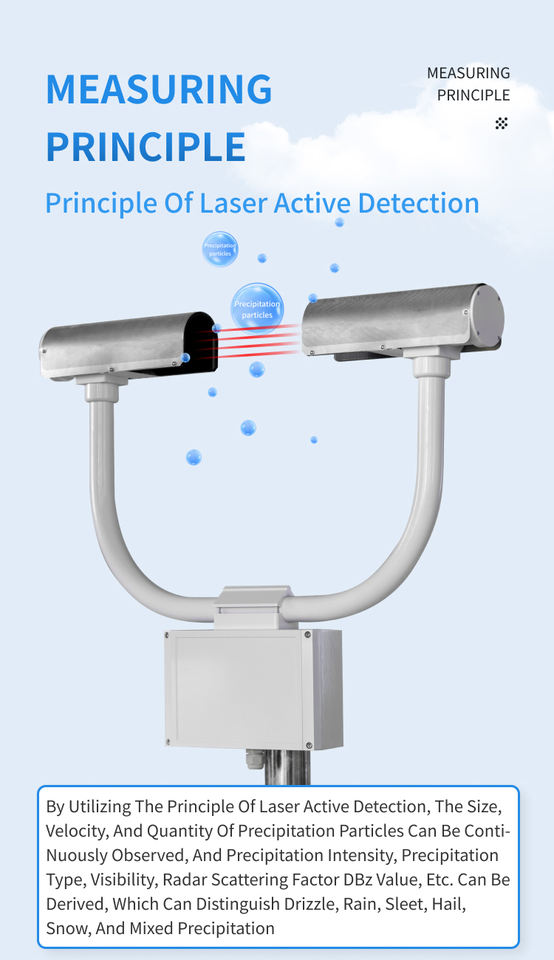

Theory:Laser Detection Technology
Brand:ASHUR-DP900
Amplifier Type:ASHUR-
Voltage - Supply:12~24 VDC
Current - Supply:nominal DC 12VDC (wide voltage 12-24 VDC)
Operating Temperature:None
Resolution (Bits):None
Features:None
Current - Supply (Max):0.1
Packaging:None
Frequency:0.016
Output Configuration:RS-485
Current:1.0
Voltage Rating:nominal DC12VDC
Operating Force:None
Oxygen Range:None
Humidity Range:0~100%RH
Size:None
Size / Dimension:680*110*600mm
Measuring Range:None
Resolution:None
Interface:RS-485
Technology:None
Sensing Range:None
Current - Output (Max):0.1
Bandwidth:None
Function:precipitation particles measurement
Acceleration Range:None
Sensitivity (LSB/g):None
Sensitivity (mV/g):None
Sensitivity (LSB/(°/s)):None
Sensitivity (mV/°/s):None
Sensing Distance:None
Current - Output:None
Power - Rated:1.0
Voltage - Output Difference (Typ) @ Distance:None
Voltage - Output (Typ) @ Distance:None
Voltage - Max:24VDC
Voltage - DC Reverse (Vr) (Max):None
Power - Max:5.5
Sensing Object:None
Sensing Light:None
Resistance:None
Resistance Tolerance:None
Sensing Temperature - Local:None
Sensing Temperature - Remote:None
Current Rating - AC:None
Current Rating - DC:1.0
Tolerance:None
Voltage - Rated:12VDC
Voltage - Input:12VDC
Application:precipitation particle measurement
D/C:12
Cross Reference:None
Measurement range:> 50 cm ²
Particle dimension:liquid precipitation: 0.2-5mm; solid precipitation: 0.2-25mm
Velocity:0.2-20 m/s
particle size distribution:32 level particle diameter size and 32 level drop velocity
Radar reflectivity:-9.999-99.999dBz,±15%
Precipitation intensity:0.001-1200 mm/h
Precipitation accuracy:± 5% (liquid state); ± 20% (solid state)
Precipitation type and weather codes:WMO 4677 (SYNOP) 4680 (METAR) and NWS codes;
Update interval:20s- -300s is adjustable
Data output mode:an active upload mode and a passive query mode
Key attributes
Mounting Type
pole mast
Manufacturing Date Code
2024
Model Number
ASHUR-DP900
Brand Name
ASHUR
Usage
Electronic components,accessories
Description
optical
Place of Origin
Luoyang,China
Series
ASHUR-DP900
Theory
Laser Detection Technology
Brand
ASHUR-DP900
Amplifier Type
ASHUR-
Voltage - Supply
12~24 VDC
Current - Supply
nominal DC 12VDC (wide voltage 12-24 VDC)
Operating Temperature
None
Resolution (Bits)
None
Features
None
Current - Supply (Max)
0.1
Packaging
None
Frequency
0.016
Output Configuration
RS-485
Current
1.0
Voltage Rating
nominal DC12VDC
Operating Force
None
Oxygen Range
None
Humidity Range
0~100%RH
Size
None
Size / Dimension
680*110*600mm
Measuring Range
None
Resolution
None
Interface
RS-485
Technology
None
Sensing Range
None
Current - Output (Max)
0.1
Bandwidth
None
Function
precipitation particles measurement
Acceleration Range
None
Sensitivity (LSB/g)
None
Sensitivity (mV/g)
None
Sensitivity (LSB/(°/s))
None
Sensitivity (mV/°/s)
None
Sensing Distance
None
Current - Output
None
Power - Rated
1.0
Voltage - Output Difference (Typ) @ Distance
None
Voltage - Output (Typ) @ Distance
None
Voltage - Max
24VDC
Voltage - DC Reverse (Vr) (Max)
None
Power - Max
5.5
Sensing Object
None
Sensing Light
None
Resistance
None
Resistance Tolerance
None
Sensing Temperature - Local
None
Sensing Temperature - Remote
None
Current Rating - AC
None
Current Rating - DC
1.0
Tolerance
None
Voltage - Rated
12VDC
Voltage - Input
12VDC
Application
precipitation particle measurement
D/C
12
Cross Reference
None
Measurement range
> 50 cm ²
Particle dimension
liquid precipitation: 0.2-5mm; solid precipitation: 0.2-25mm
Velocity
0.2-20 m/s
particle size distribution
32 level particle diameter size and 32 level drop velocity
Radar reflectivity
-9.999-99.999dBz,±15%
Precipitation intensity
0.001-1200 mm/h
Precipitation accuracy
± 5% (liquid state); ± 20% (solid state)
Precipitation type and weather codes
WMO 4677 (SYNOP) 4680 (METAR) and NWS codes;
Update interval
20s- -300s is adjustable
Data output mode
an active upload mode and a passive query mode
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
1 - 9 pieces
$4,868
>= 10 pieces
$4,451
