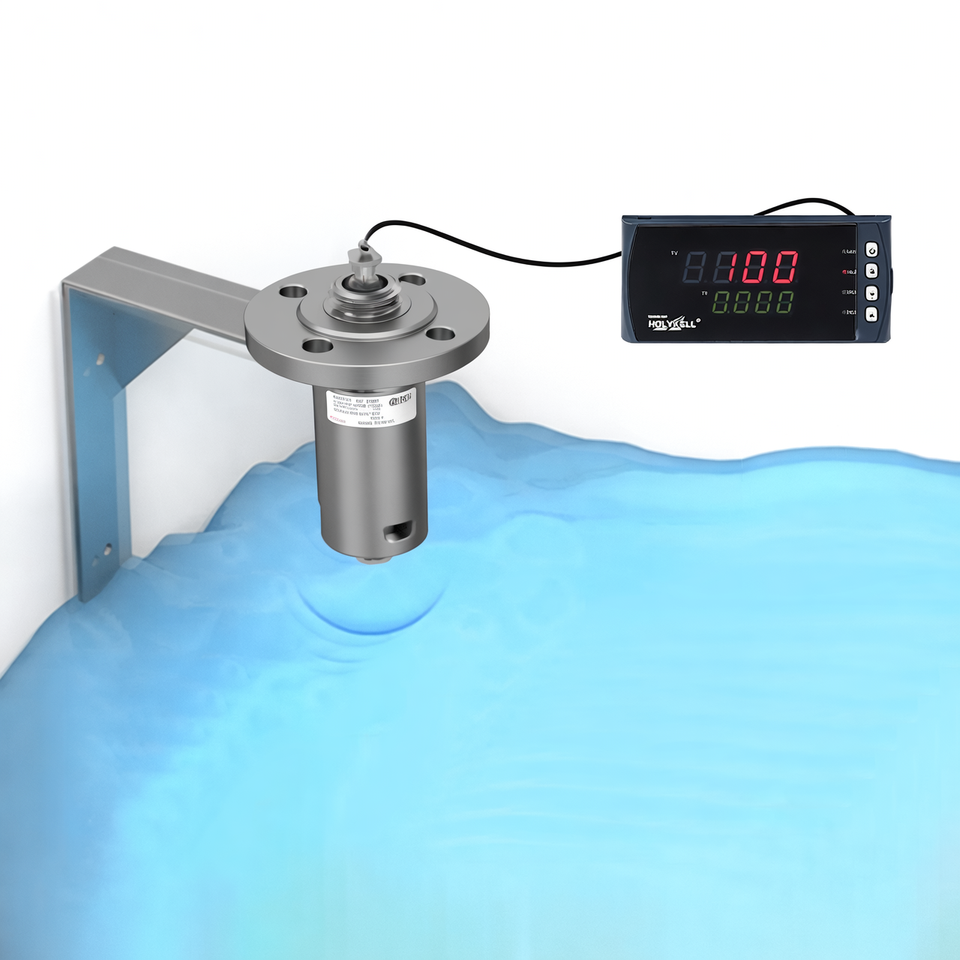

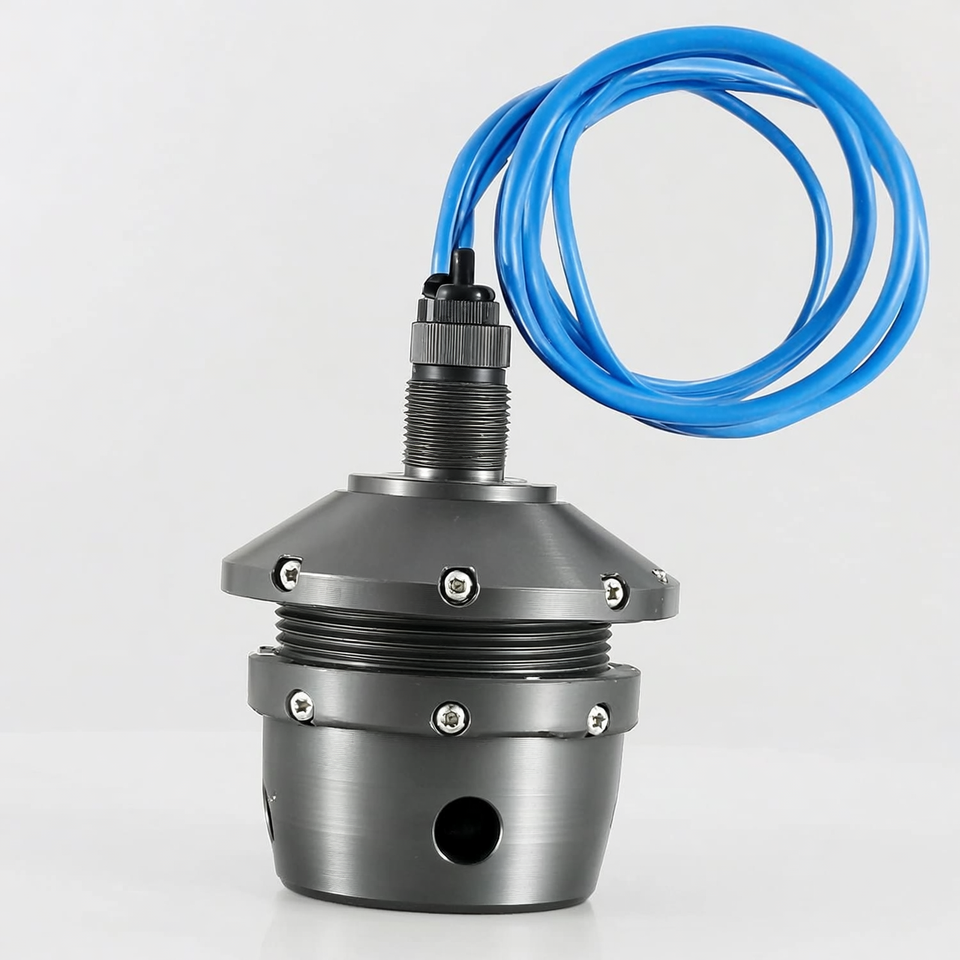

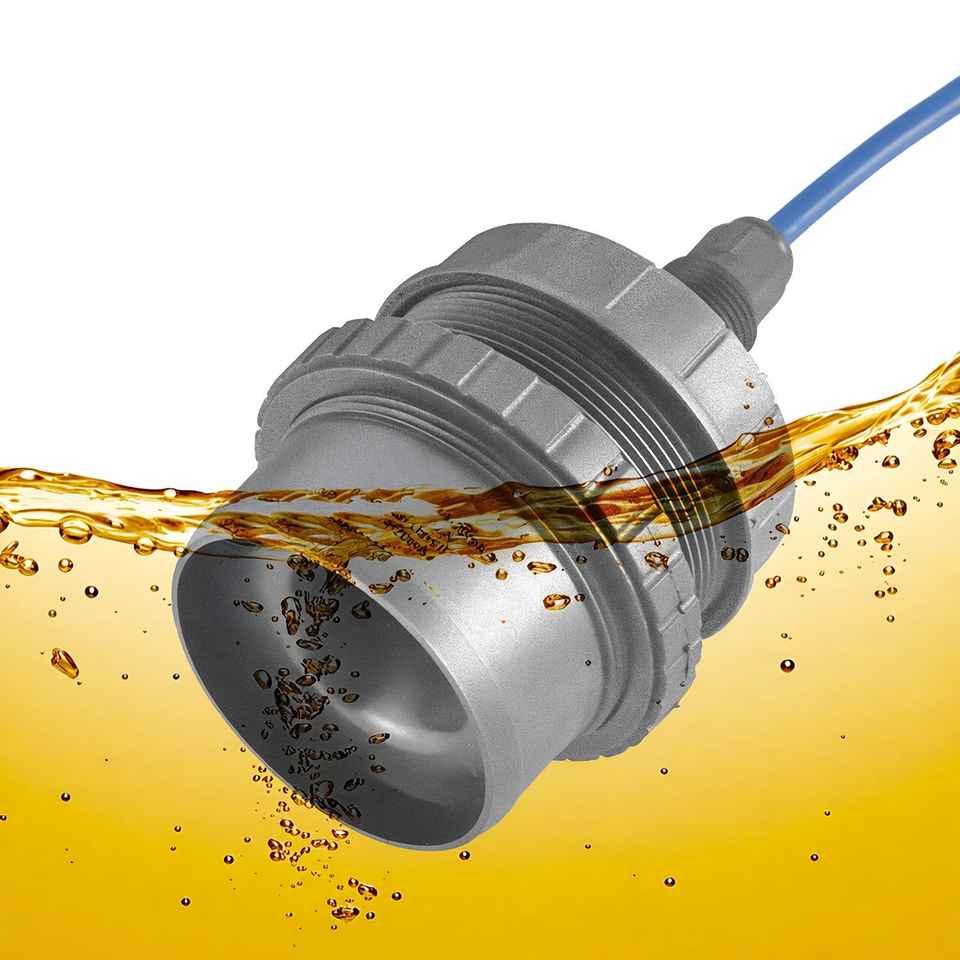

Non Contact Explosion Proof IP68 Rated High Accuracy 0.25%F.S Ultrasonic Level Transmitter with RS485+4-20mA Output
No reviews yet
Precision Monitoring Instruments Tech Inc
US1 yr on Alibaba.com
Response Time ≤ 4h
Attributes
/Type
0.5%F.S (typical), 0.25%F.S (by customized)Accuracy
Polypropylene + glass fibermaterial
12 monthwarranty
OEM, ODMcustomized support
PMIbrand name
place of origin:Hunan, China
Measuring range:2.5m, 5m, 10m, others on request

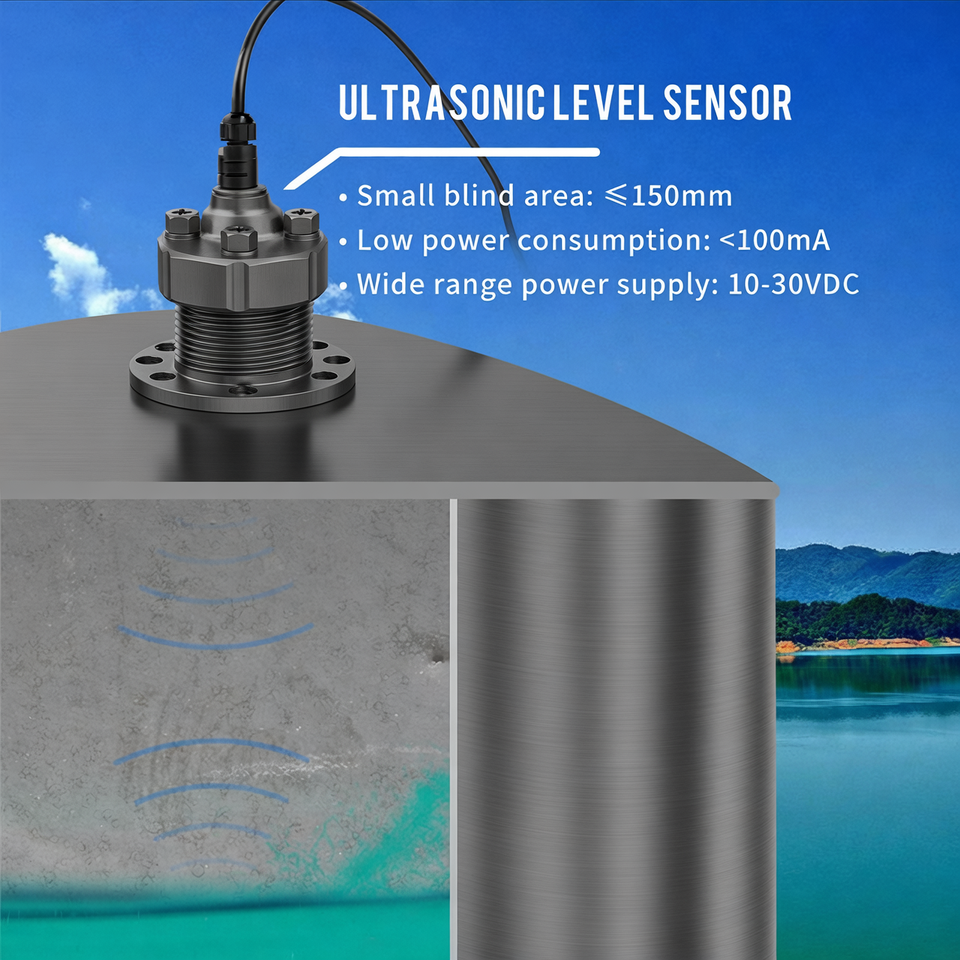

Blind area:≤150mm(for 2.5m &5m ranges); ≤300mm(for 10m range)
Beam angle:12°
Output signal:RS485+4~20mA; RS485+0~5V
Power supply:10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature:-10~50℃(-40~80℃ by customized)
Installation mode:Nut clamping fixed installation, screw-in installation, M68*2
Product material:Polypropylene + glass fiber
IP rating:IP67 typical, IP68 by customized
Key attributes
Type
/
Accuracy
0.5%F.S (typical), 0.25%F.S (by customized)
material
Polypropylene + glass fiber
warranty
12 month
customized support
OEM, ODM
brand name
PMI
place of origin
Other
Measuring range
2.5m, 5m, 10m, others on request
Blind area
≤150mm(for 2.5m &5m ranges); ≤300mm(for 10m range)
Beam angle
12°
Output signal
RS485+4~20mA; RS485+0~5V
Power supply
10~30VDC(24VDC recommended, 5~30VDC by customized)
Working temperature
-10~50℃(-40~80℃ by customized)
Installation mode
Nut clamping fixed installation, screw-in installation, M68*2
Product material
Polypropylene + glass fiber
IP rating
IP67 typical, IP68 by customized
Packaging and delivery
Selling Units
Single item
Package size per batch
32X32X25 cm
Gross weight per batch
3.500 kg
Lead time
Product descriptions from the supplier
1 - 49 pieces
$129
50 - 99 pieces
$10980
>= 100 pieces
$10680
Variations
Select nowMeasurement Range: /
/
color
0-5m fuel, RS485+4-20mA, 7-30VDC/2A, 1m cable
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
