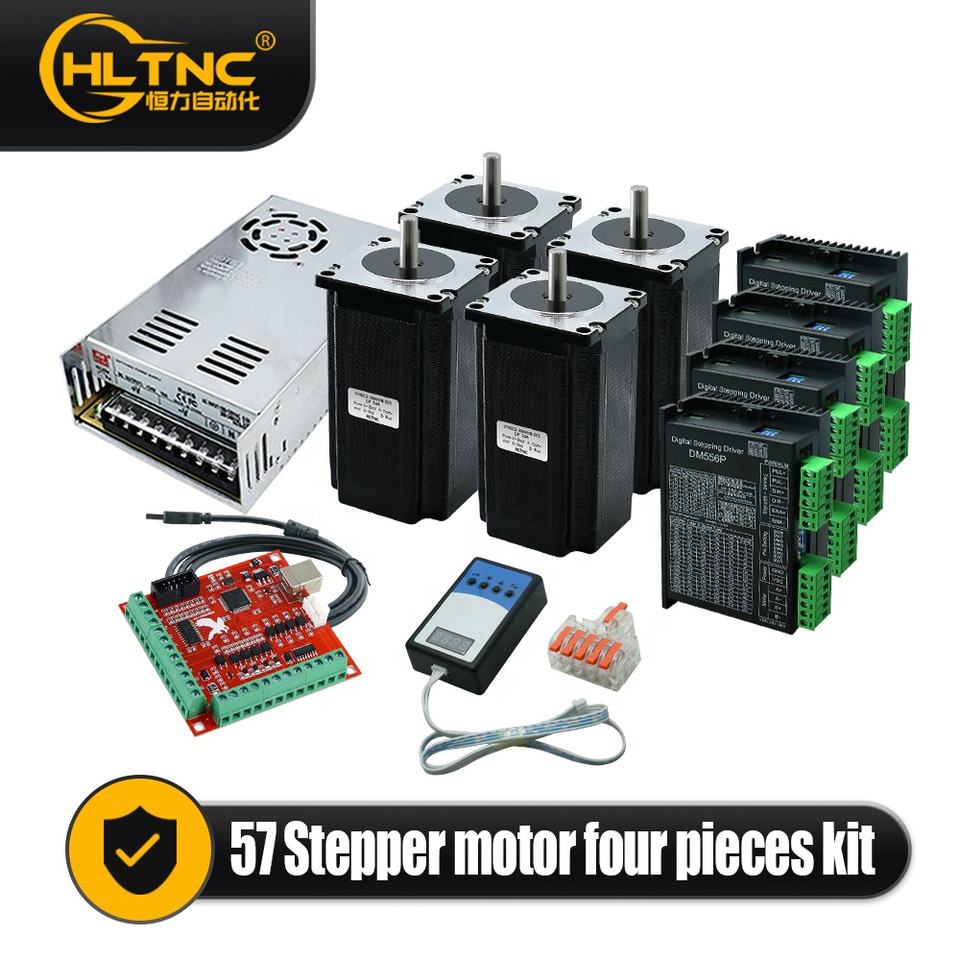

HLTNC Nema23 Hybrid 2-Phase Stepper Motor 57HS82 DM556P Kit Speed Regulator DC 36V 2.0 Nm Torque 3A 82mm 510g.cm Rotor Inertia
No reviews yet
Attributes
NEMA 23Nema Frame Size
DC 36 VVoltage
HybridType
2Phase
6.35/8mmShaft Diameter
2.0 N·mTorque
Place of Origin:Zhejiang, China
Model Number:57HS82+DM556P kits
Brand Name:HLTNC
Current / Phase:3A
Warranty:Other

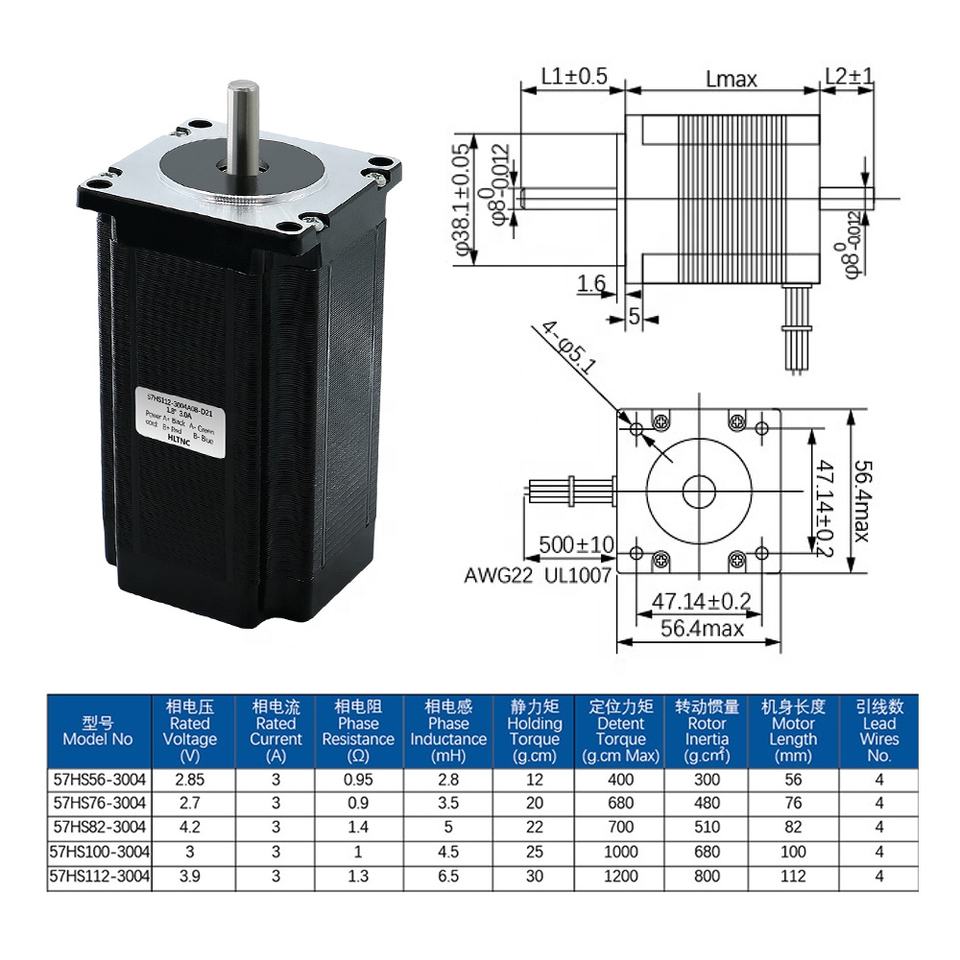

Product name:Nema23 57HS82 Stepper Motor DM556P Driver Kits
Motor length:82mm
Holding Torque:22 kg.cm
Detent torque:700g.cm Max
Shaft diameter:8mm
Phase Inductance(mH):5
Rated Current:1.4Ω
Rotor inertia:510g.cm²
Power supply:350W 36V
Key attributes
Nema Frame Size
NEMA 23
Voltage
DC 36 V
Type
Hybrid
Phase
2
Shaft Diameter
6.35/8mm
Torque
2.0 N·m(1.48lb.ft)
Warranty
Other
Brand Name
HLTNC
Current / Phase
3A
Model Number
57HS82+DM556P kits
Place of Origin
Zhejiang, China
Product name
Nema23 57HS82 Stepper Motor DM556P Driver Kits
Motor length
82mm
Holding Torque
22 kg.cm
Detent torque
700g.cm Max
Shaft diameter
8mm
Phase Inductance(mH)
5
Rated Current
1.4Ω
Rotor inertia
510g.cm²
Power supply
350W 36V
Packaging and delivery
Selling Units
Single item
Package size per batch
46X40X24 cm
Gross weight per batch
7.500 kg
Lead time
Product descriptions from the supplier
5 - 99 sets
$20940
>= 100 sets
$20520
Variations
Select nowHolding Torque: 57HS82-3004A08-D21,Single shaft diameter 8mm,3A,22kg.m
57HS82-3004A08-D21,Single shaft diameter 8mm,3A,22kg.m
57HS82-3004A635-D21,Single shaft diameter 6.35mm,3A,22kg.m
57HS82-4004A08-D21,Single shaft diameter 8mm,4A,20kg.m
57HS82-3004A635-D21,Single shaft diameter 6.35mm,4A,20kg.m
Step Angle(degrees)
1.8°
