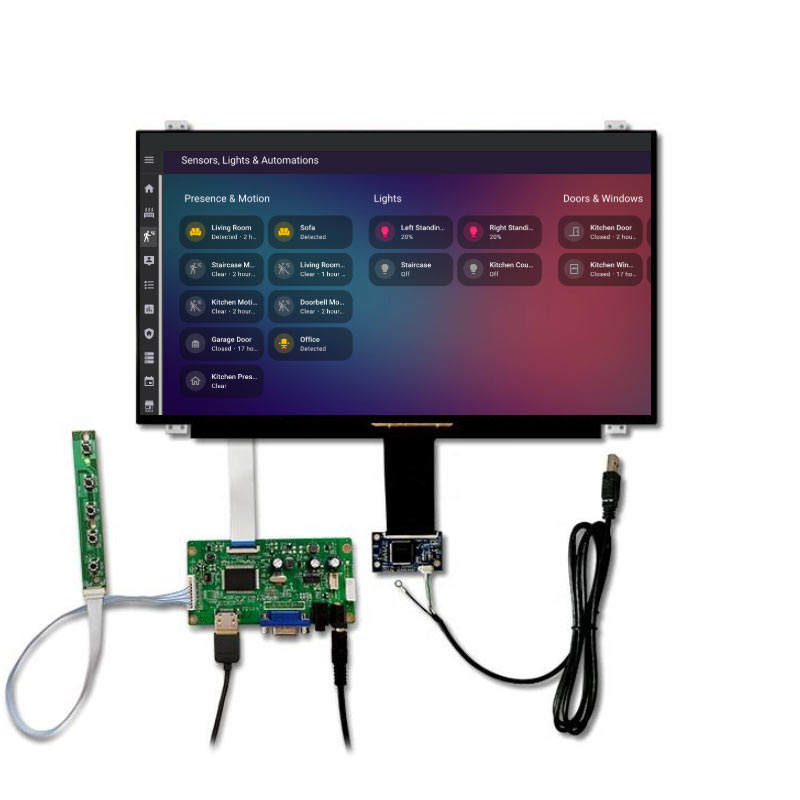

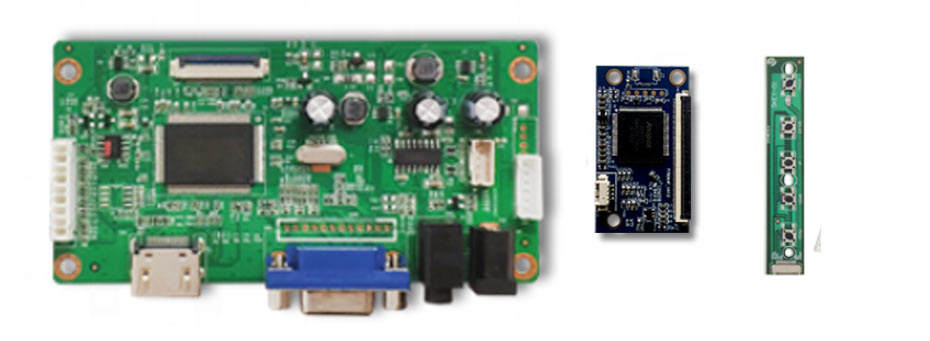

NV156FHM-N42 BOE 15.6 Inch 1920x1080 IPS TFT LCD Display 220nits 60Hz eDP Interface LCD Panel With Driver Board
Store rating:5.0
(78 reviews)

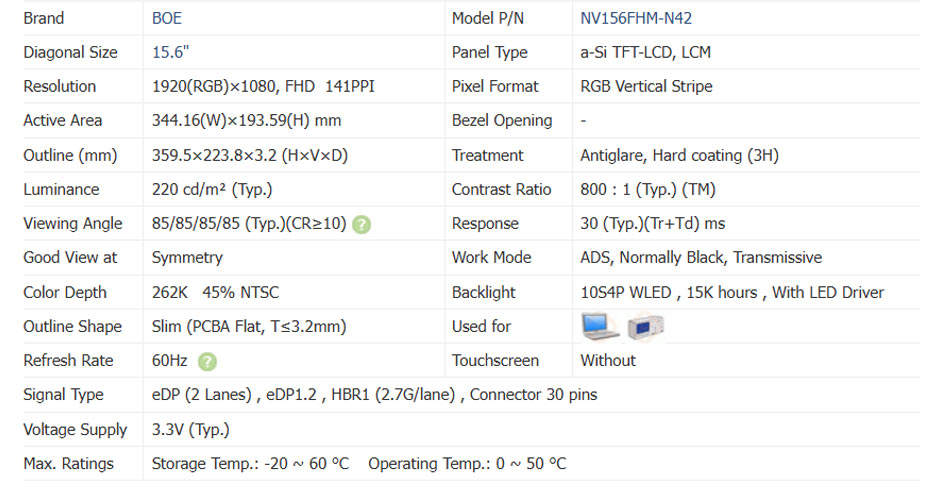

Attributes
TFTType
15.6 InchDisplay Size
ChinaPlace of Origin
BOEBrand Name
1920x1080Resolution
220(Typ.)Brightness(cd/m2)
Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
Panel Interface:eDP (2 Lanes),eDP1.2,HBR1(2.7G/lane),30 pins

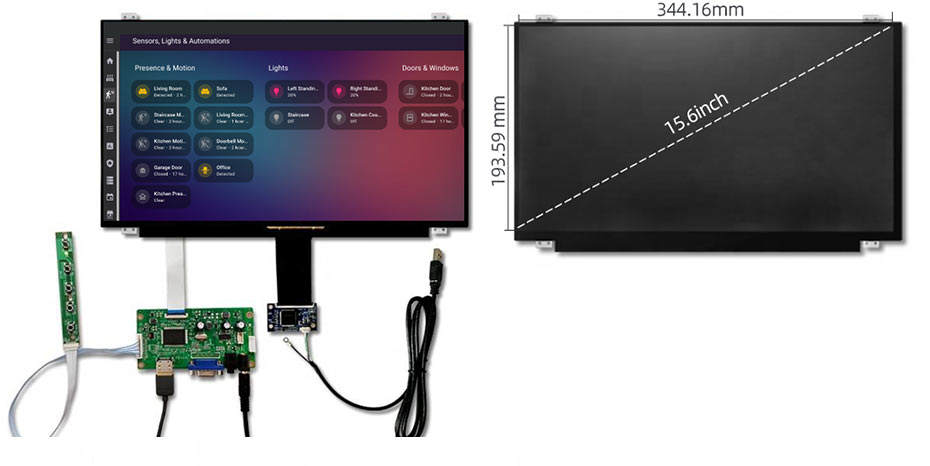

Active Area:344.16(W)x193.59(H) mm
Outline Dimension:359.5(W)x223.8(H)x3.2(D) mm
Support Color:262K, 45% NTSC
Contrast Ratio:1000:1(Typ.)(TM)
Operating Temperature:0~50°C
Storage Temperature:-20~60°C
Key attributes
Type
TFT
Brand Name
BOE
Display Size
15.6 Inch
Place of Origin
China
Resolution
1920x1080
Brightness(cd/m2)
220(Typ.)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Panel Interface
eDP (2 Lanes),eDP1.2,HBR1(2.7G/lane),30 pins
Active Area
344.16(W)x193.59(H) mm
Outline Dimension
359.5(W)x223.8(H)x3.2(D) mm
Support Color
262K, 45% NTSC
Contrast Ratio
1000:1(Typ.)(TM)
Operating Temperature
0~50°C
Storage Temperature
-20~60°C
