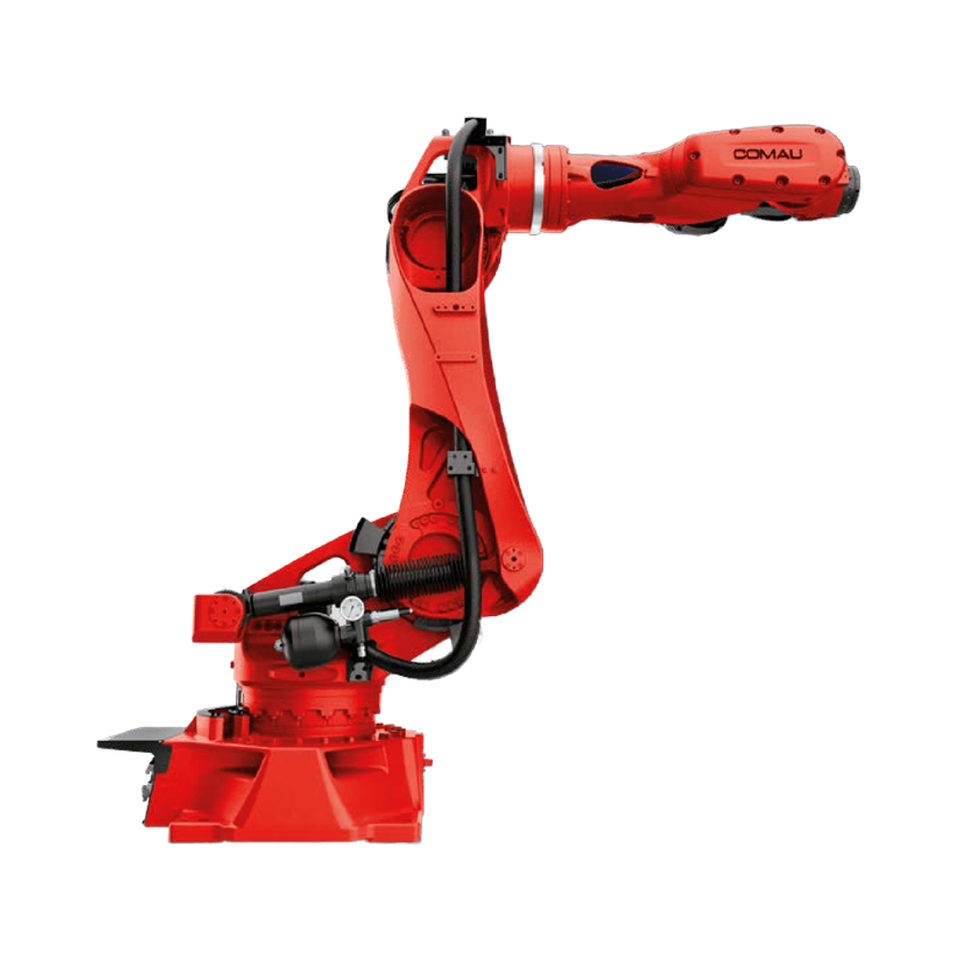

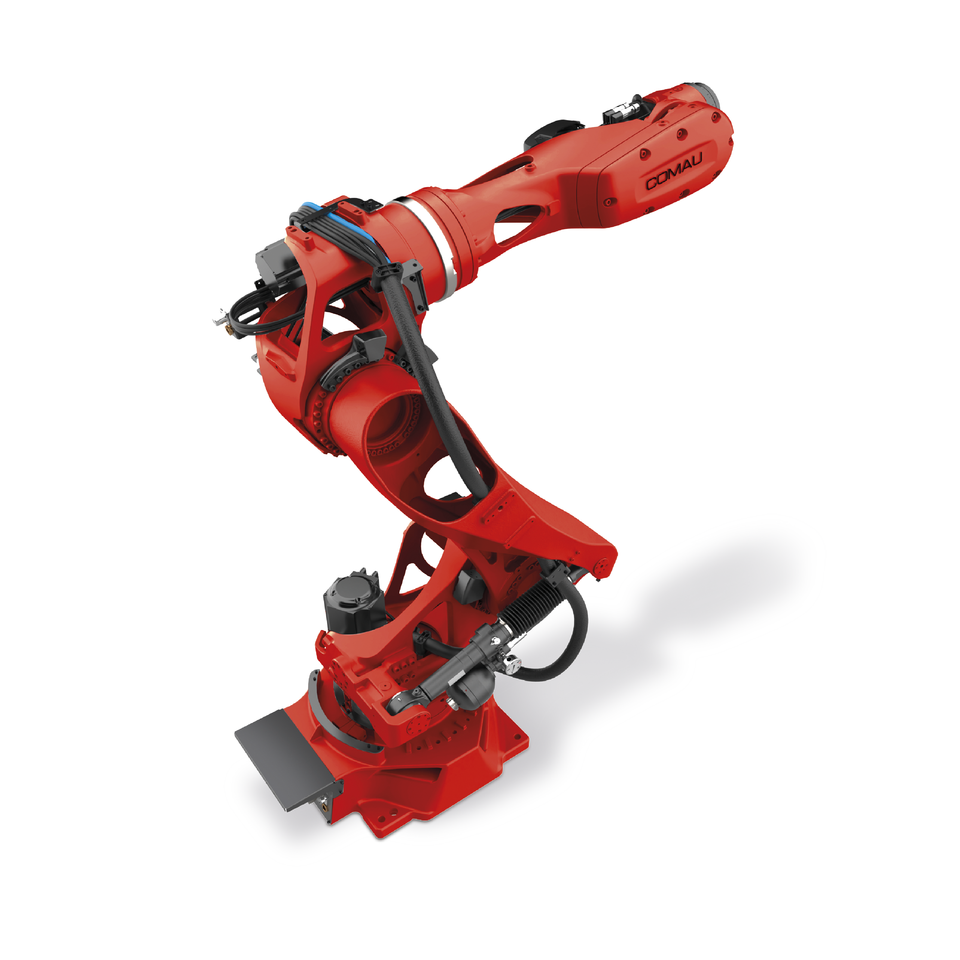

N-220 UL High Precision Industrial Robot Arm for Spot Welding and Material Handling Applications - Made in Italy

No reviews yet
Comau S.p.A.
Custom Manufacturer
1 yr
IT

Attributes

400 to 500Vvoltage
-power(w)
IP65Ingress Protection
220 kgproduction capacity
Italyplace of origin
1193weight (kg)
brand name:COMAU
application:Bending, Agile Handling
Number of axes:6
Maximum wrist payload:220 kg
Additional load on forearm:50 kg
Maximum horizontal reach:2670 mm
Torque on axis 4:1270 Nm
Torque on axis 5:1270 Nm
Torque on axis 6:780 Nm
Stroke / Speed Axis 1:+/- 180° (120° / s)
Stroke / Speed Axis 2:-77° / +76° (100° / s)
Stroke / Speed Axis 3:-167° / +74° (110° / s)
Stroke / Speed Axis 4:+/- 200° (140° / s)
Stroke / Speed Axis 5:+/- 125° (140° / s)
Stroke / Speed Axis 6:+/- 2700° (210° / s)
Protection class:IP65
Mounting position:Floor Mounted
Product spotlights

Maximum Wrist Payload: A maximum wrist payload of 220 kg allows the robot to handle heavy materials and tools, making it suitable for demanding industrial applications.

Protection Class IP65: With an IP65 protection class, the robot is dust-tight and protected against water jets, ensuring reliable operation in harsh industrial environments.

Maximum Horizontal Reach: A maximum horizontal reach of 2670 mm enables the robot to cover a wide working area, enhancing its versatility in various industrial tasks.

Number Of Axes: The robot has 6 axes, providing a high degree of flexibility and precision in movement, which is essential for complex spot welding and material handling operations.

Key attributes

voltage
400 to 500V
power(w)
-
Ingress Protection
IP65
production capacity
220 kg
place of origin
Italy
weight (kg)
1193
brand name
COMAU
application
Bending, Agile Handling
Number of axes
6
Maximum wrist payload
220 kg
Additional load on forearm
50 kg
Maximum horizontal reach
2670 mm
Torque on axis 4
1270 Nm
Torque on axis 5
1270 Nm
Torque on axis 6
780 Nm
Stroke / Speed Axis 1
+/- 180° (120° / s)
Stroke / Speed Axis 2
-77° / +76° (100° / s)
Stroke / Speed Axis 3
-167° / +74° (110° / s)
Stroke / Speed Axis 4
+/- 200° (140° / s)
Stroke / Speed Axis 5
+/- 125° (140° / s)
Stroke / Speed Axis 6
+/- 2700° (210° / s)
Protection class
IP65
Mounting position
Floor Mounted

Packaging and delivery

Selling Units
Single item
Single gross weight
1193.000 kg

Product descriptions from the supplier

Report abuse
Minimum order quantity: 1 unit
$32,000-42,000

Variations

Select now

model number

N-220 UL
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
