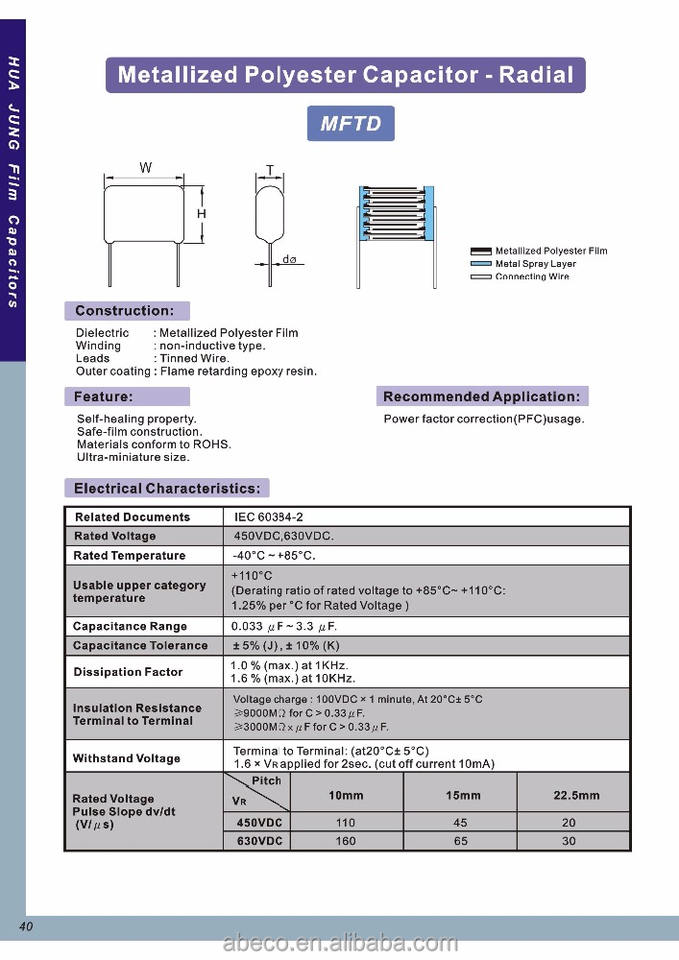

Mftd 683j High Quality 630V 0.22K Metallized Polyester Capacitor
See store reviews
Attributes
MFTDModel Number
450VDC - 630VDCRated Voltage
HJCBrand Name
Taiwan, ChinaPlace of Origin
-40 ~+85Operating Temperature
General PurposeApplication
Related Documents:IEC 60384-2
Capacitance Tolerance:±5%(K) , ±10%(M)
Withstand Voltage:Terminal to Terminal: (at 20C ±5C) 1.5VR applied for 10sec.
Insulation Resistance:Terminal to Terminal :(at 20C ±5C),Voltage charge time: 1 minute.
Dielectric:Metallized Polypropylene Film

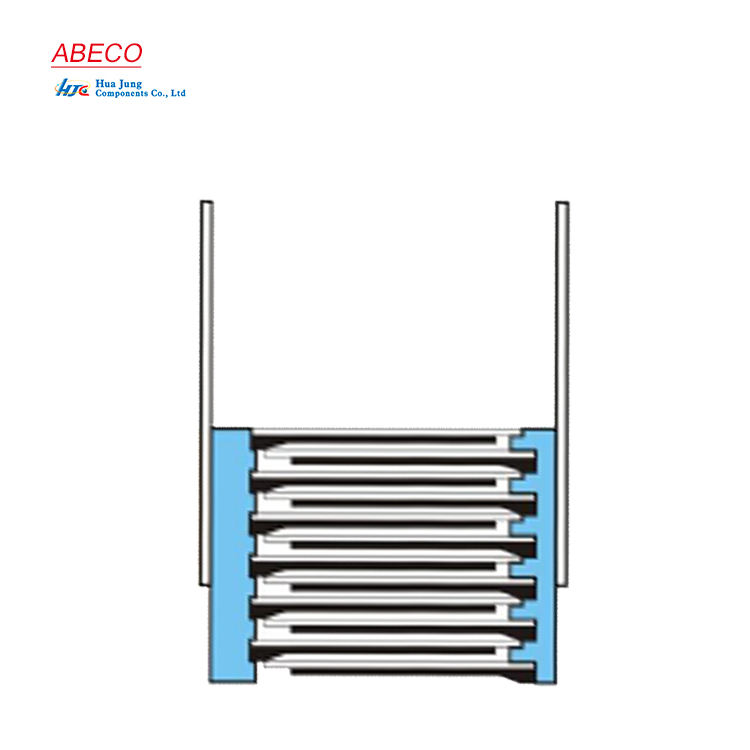

Winding:non-inductive type
Leads:Tinned Wire
Outer coating:Flame retarding epoxy resin
usable upper category remperature:+125c
Voltage charge time:1 minute
Capacitance:0.033uF - 3.3uF
Key attributes
Model Number
MFTD
Rated Voltage
450VDC - 630VDC
Brand Name
HJC
Place of Origin
Taiwan, China
Operating Temperature
-40 ~+85
Application
General Purpose
Related Documents
IEC 60384-2
Capacitance Tolerance
±5%(K) , ±10%(M)
Withstand Voltage
Terminal to Terminal: (at 20C ±5C) 1.5VR applied for 10sec.
Insulation Resistance
Terminal to Terminal :(at 20C ±5C),Voltage charge time: 1 minute.
Dielectric
Metallized Polypropylene Film
Winding
non-inductive type
Leads
Tinned Wire
Outer coating
Flame retarding epoxy resin
usable upper category remperature
+125c
Voltage charge time
1 minute
Capacitance
0.033uF - 3.3uF
Packaging and delivery
Packaging Details
Based on the materials and size of the product.
Port of dispatch
Kaohsiung
Selling Units
Single item
Supply capacity
Supply Ability
10000 pieces per Month Depends on Model
