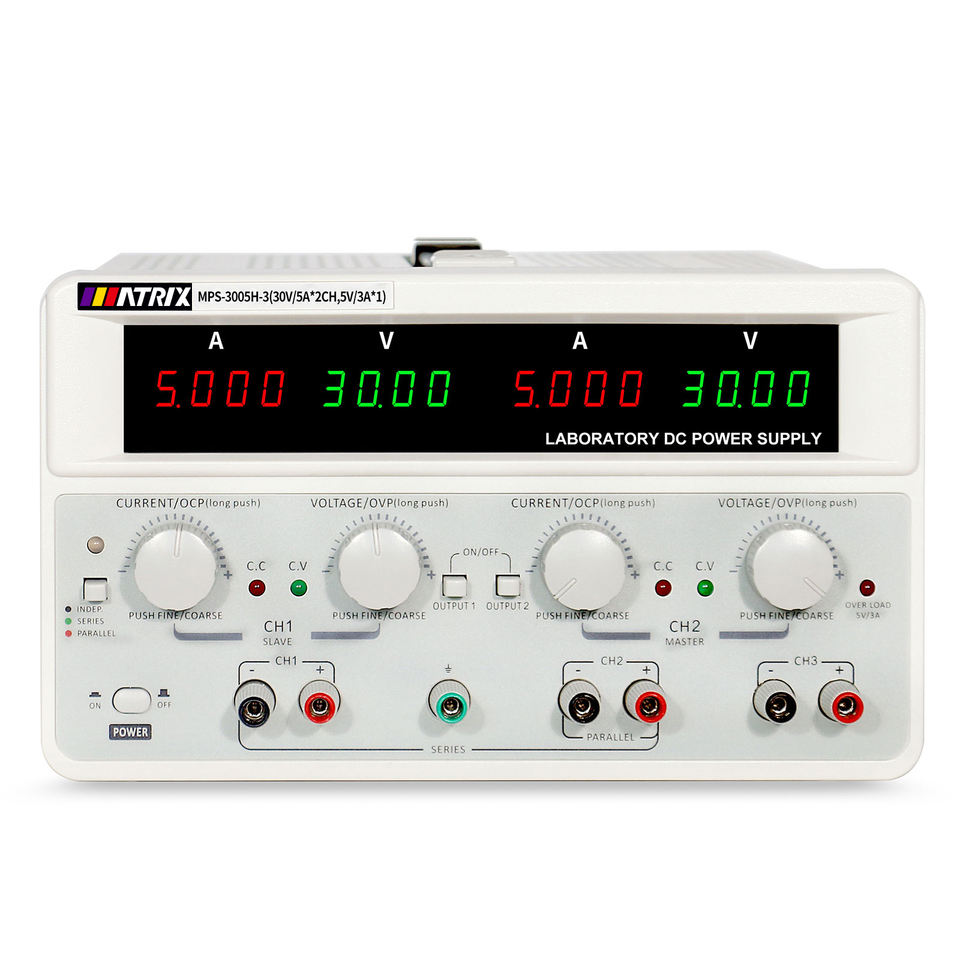

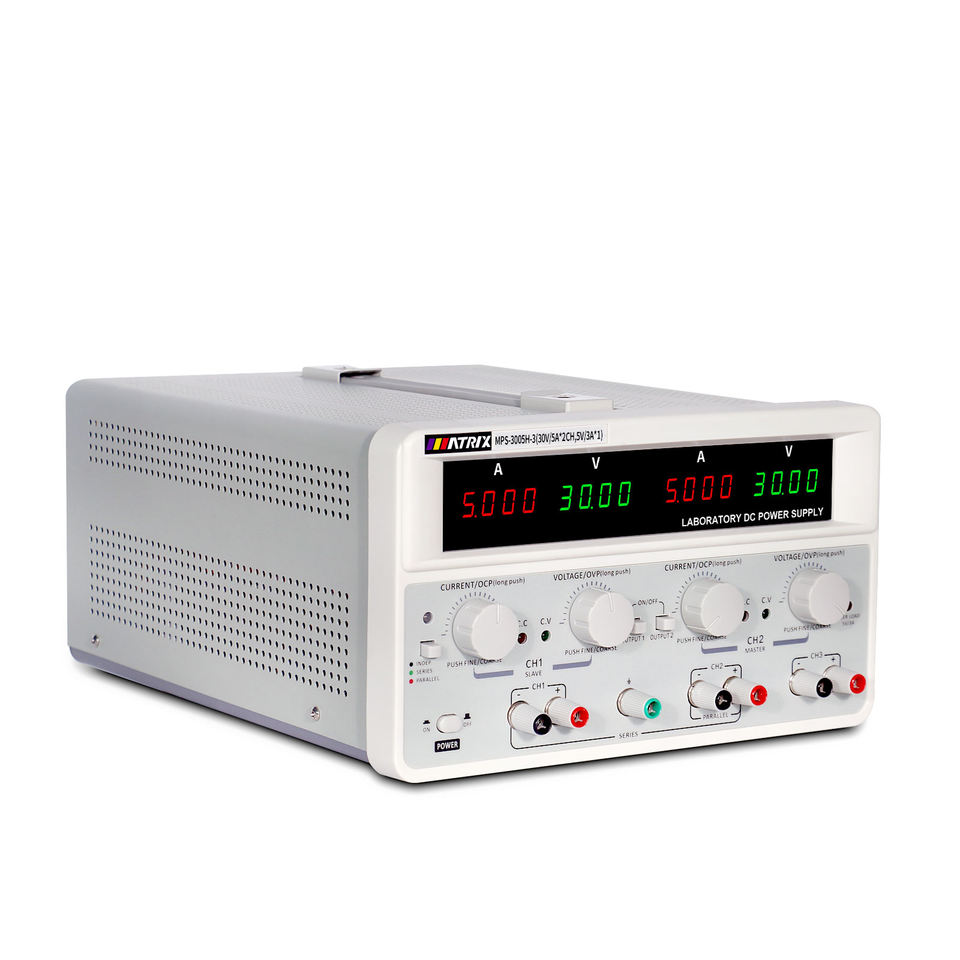

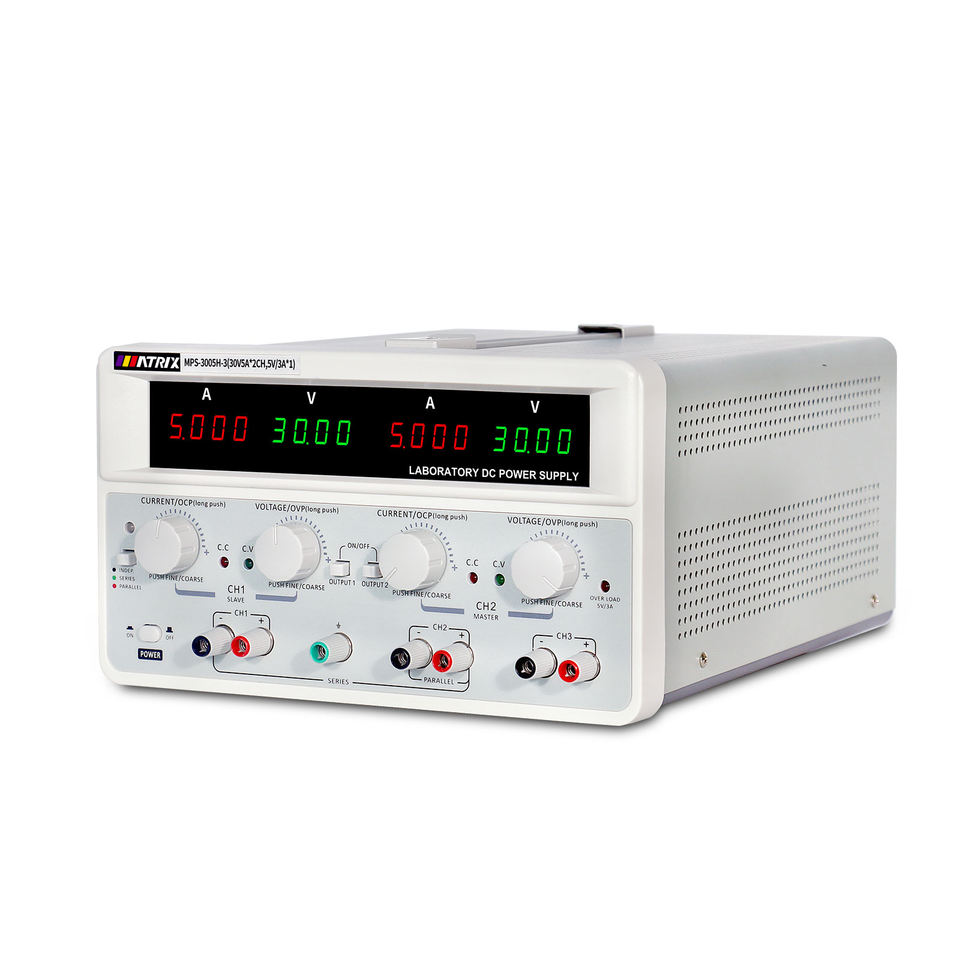

MATRIX 30V 5A 5V 3A 315W Three Channel Linear DC Power Supply for Industry with Customizable RS232 RS485 and USB Interfaces

Name: MATRIX 30V 5A 5V 3A 315W Three Channel Linear DC Power Supply for Industry with Customizable RS232 RS485 and USB Interfaces
Brand: MATRIX TECHNOLOGY LIMITED
SKU: 1601581372976
Price: 268.9 USD
Availability: InStock

Store rating:5.0

(4 reviews)

MATRIX TECHNOLOGY LIMITED

2 yrs

Attributes

0-30V*2CH,5V*1CHOutput Voltage

110 V, 220 VInput Voltage

AC-DCType

TripleOutput Type

Laboratory, Industry, Machines, Industrial EquipmentApplication

Overcurrent Protection, Overvoltage Protection, Over Temperature ProtectionProtection

Output Current:0~5A*2CH,3A*1CH

Place of Origin:Guangdong, China

Model Number:MPS-3005H-3

Brand Name:MATRIX

Output Frequency:/

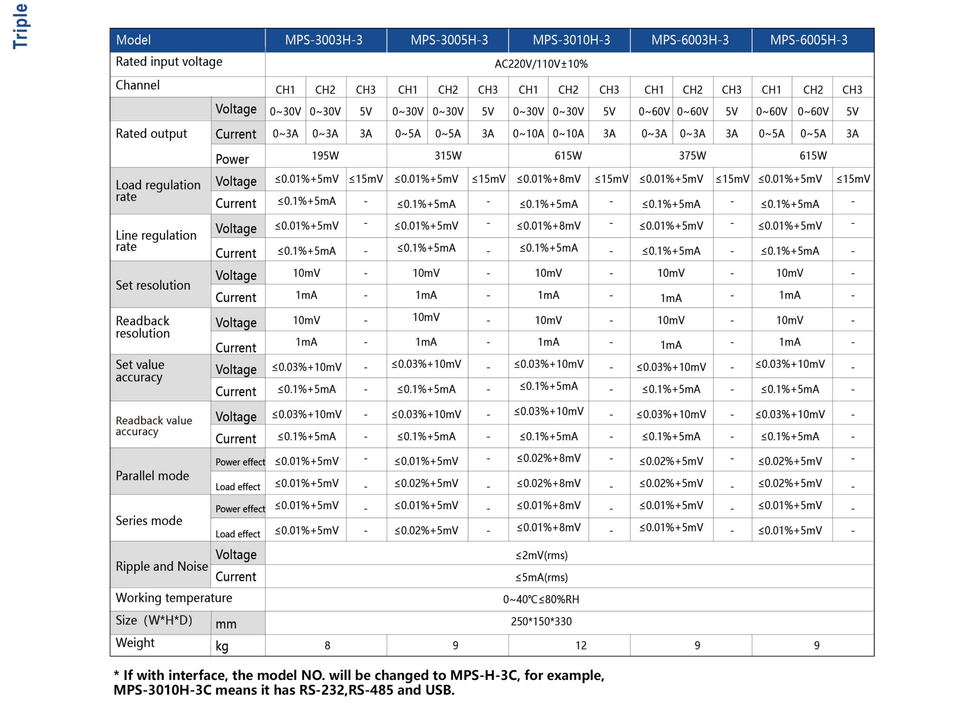

Rated input voltage:AC220V/110V±10%

Load regulation rate Voltage:≤0.01%+5mV ≤15mV

Load regulation rate Current:≤0.1%+5mA

Line regulation rate Voltage:≤0.01%+5mV

Line regulation rate Current:≤0.1%+5mA

Set resolution:10mV/1mA

Set value accuracy:≤0.03%+10mV/≤0.1%+5mA

Ripple and Noise Voltage:≤2mV(rms)

Ripple and Noise Current:≤5mA(rms)

Product spotlights

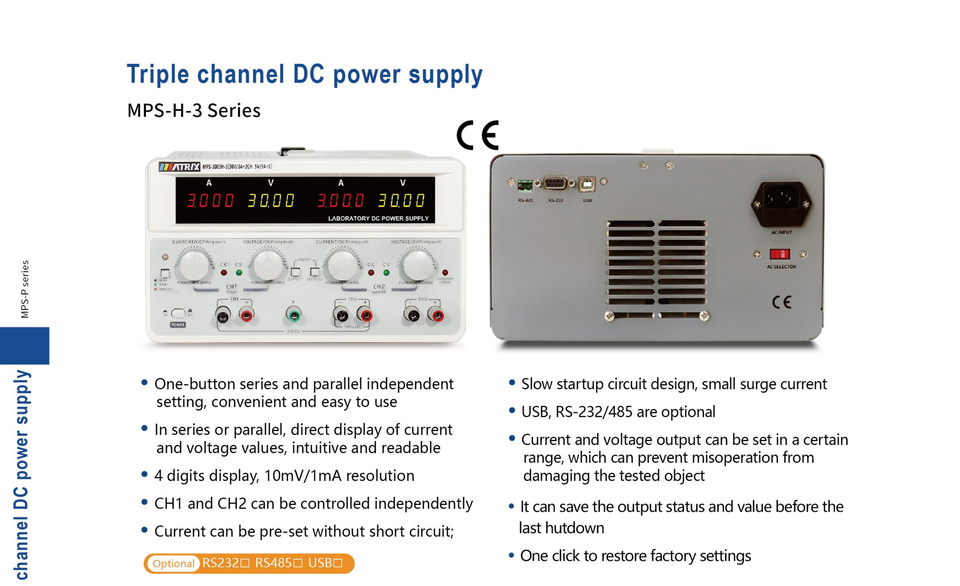

Three Channel Output: Provides three independent channels, allowing for versatile and simultaneous power supply to multiple devices or circuits.

Customizable Interfaces: Offers RS232, RS485, and USB interfaces, enabling flexible communication and control options for various industrial applications.

High Power Capacity: With a total power output of 315W, it can handle demanding industrial and laboratory applications that require high power.

Overvoltage Protection: Ensures the safety and reliability of connected devices by protecting them from voltage surges and overloads.
