Attributes
220 VInput Voltage
0-60AOutput Current
0-30VOutput Voltage
Guangdong, ChinaPlace of Origin
MPS-1800S-30-60Model Number
MATRIXBrand Name
Application:Industry, Laboratory, Industrial Equipment, Machines
Output Type:Single
Protection:Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Short Circuit Protection
Type:AC-DC
AC input:Single phase AC220V±10%,50Hz
Load regulation Voltage:≤0.1%F.S+0.1%F.S
Load regulation Current:≤0.1%F.S+0.1%F.S
Ripple(20Hz-20MHz) Voltage:Vrms≤0.2%F.S+50mV
Dynamic response time(10%-90%load):≤5mS

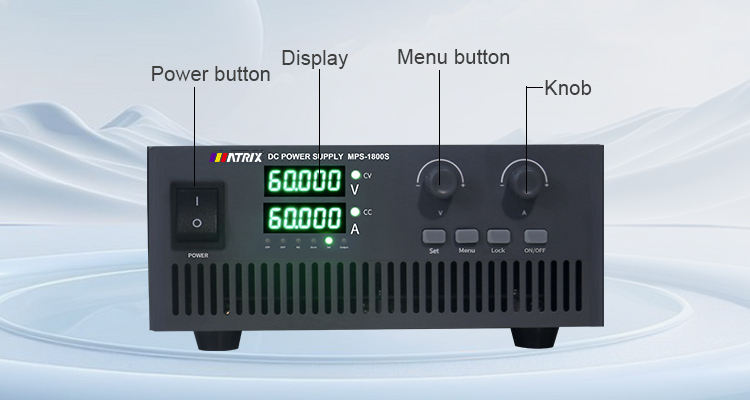

Display method:4 and a half digit meter(LED digital tube display)
Display resolution:Voltage0.001V/0.01V/0.1V,Current0.001A/0.01A/0.1A

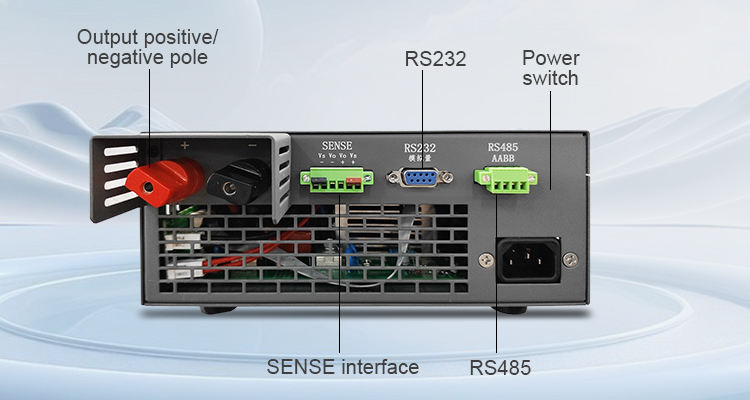

Interface:Interface
Functional protection:OVP,OCP,OTP,Short circuit protection
Heat dissipation method:Adopting PWM speed regulating fan,air-cooled
