M12 Square Flange Panel Mount Connectors A/b/d Code IP67 Waterproof 300mm Litz Wires 2-17 Pins Male Female Brass Gold Plated

No reviews yet
$2.60-7
Minimum order quantity: 2 pieces
Sample price: $5
Select now

Color

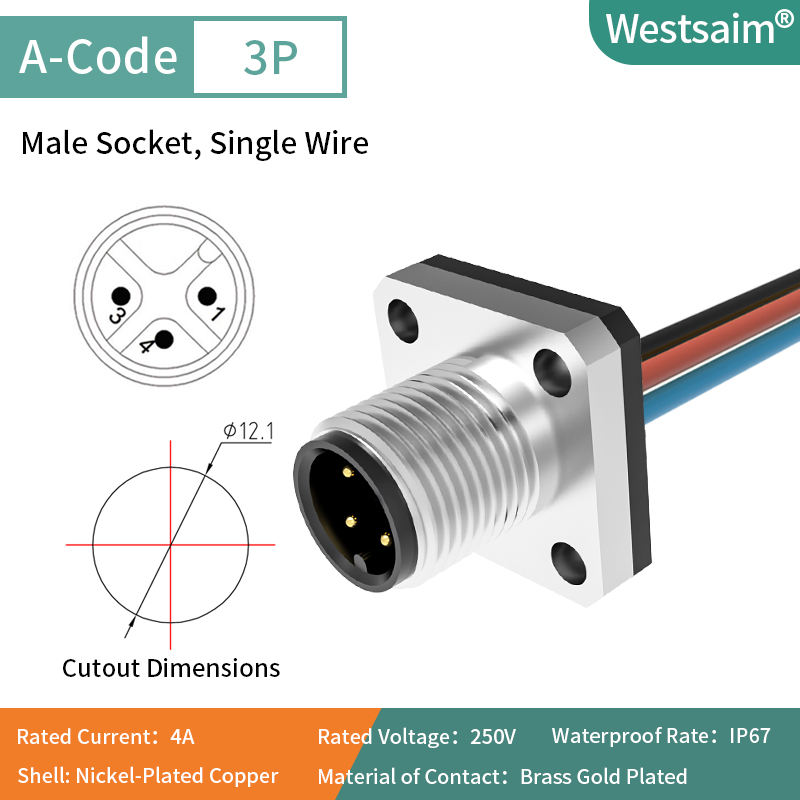

M12-A-3 male
M12-A-4 male

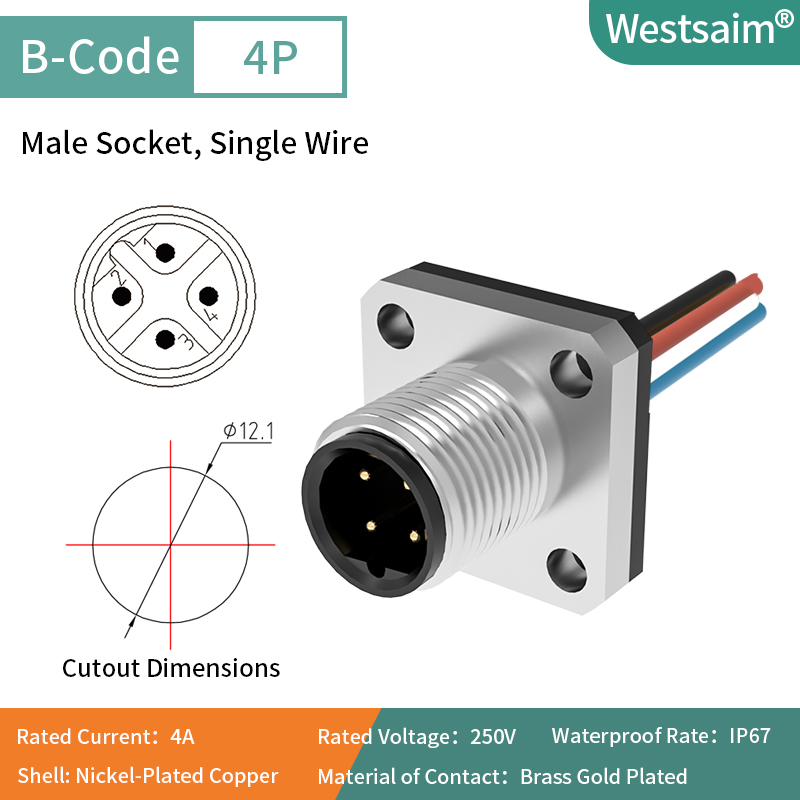

M12-B-4 male

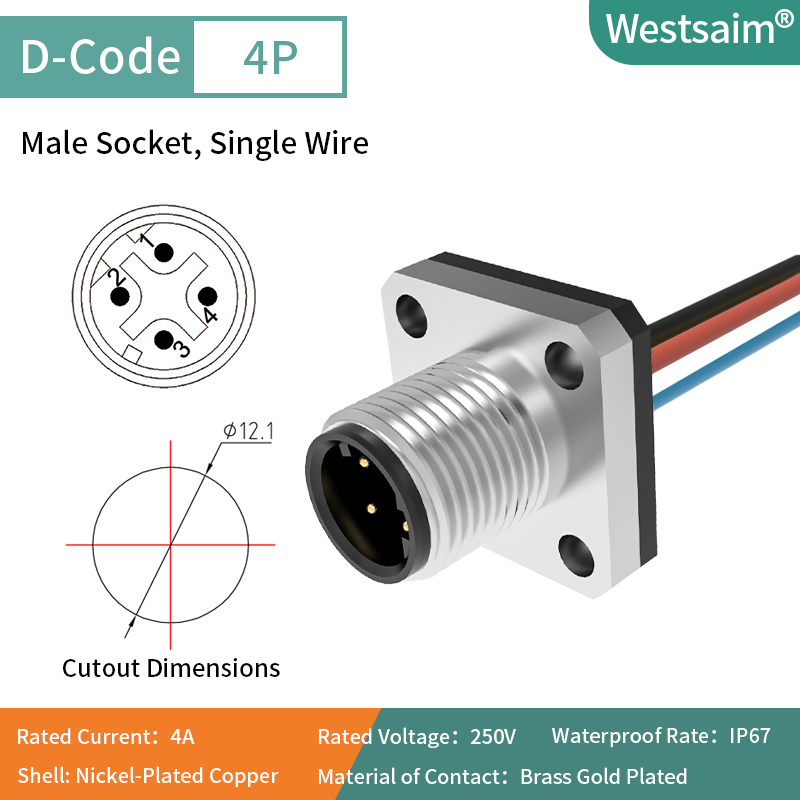

M12-D-4 male

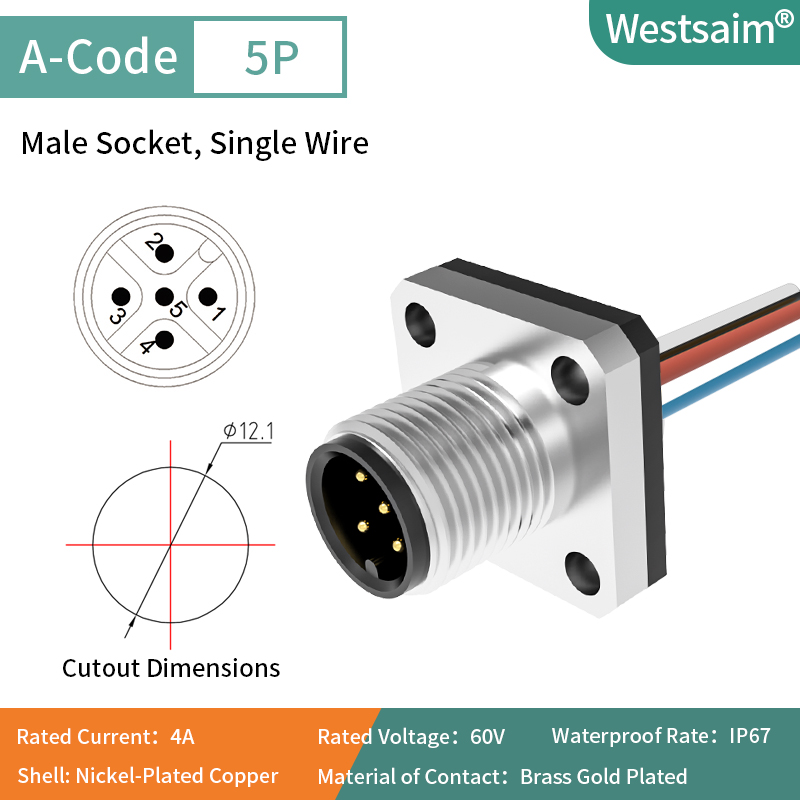

M12-A-5 male

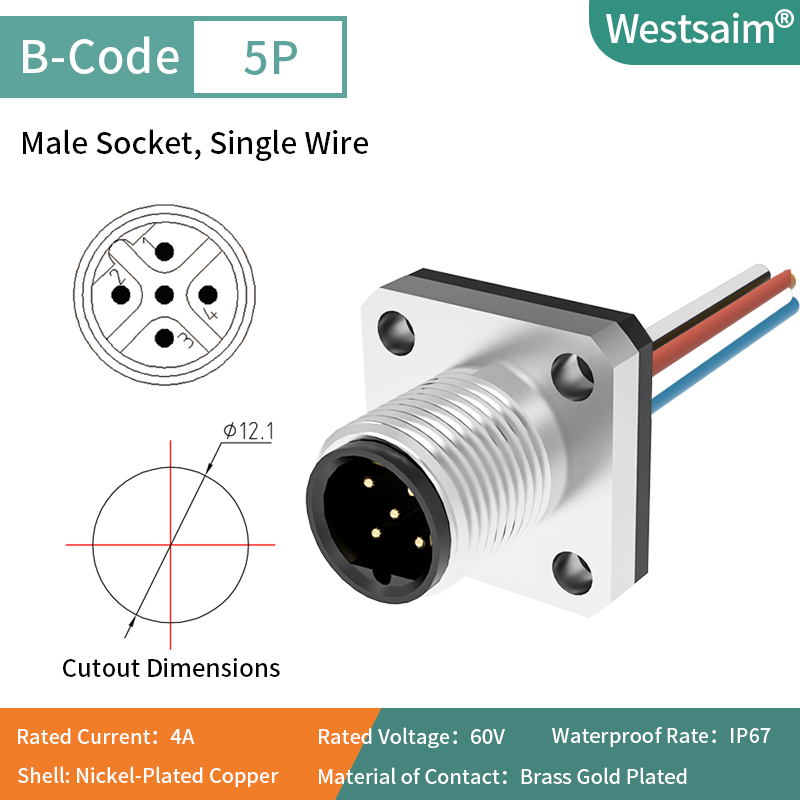

M12-B-5 male
M12-A-6 male
M12-A-8 male
M12-A-12 male
M12-A-17 male
M12-A-3 female
M12-A-4 female
M12-B-4 female
M12-D-4 female
M12-A-5 female
M12-B-5 female
M12-A-6 female
+3

Number of Cores

Square Flange with Wires 300mm

Pins

3/4/5/6/8/12/17 Pin

Key attributes

Application

Automotive

Contact Material

Brass Gold Plated

Rated Current

6/4/2/1.5/0.5A

Rated Voltage

30/48/60V

Place of Origin

Guangdong, China

Model Number

M12-A-5Pin

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Application
Automotive
Contact Material
Brass Gold Plated
Rated Current
6/4/2/1.5/0.5A
Rated Voltage
30/48/60V
Place of Origin
Guangdong, China
Model Number
M12-A-5Pin
Brand Name
Westsaim
Gender
Male/Female
Housing Material
Brass Nickel Plated
IP Level
Ip67
Shape
Round
Type
Waterproof Connector
Item name
M12 Square Flange Panel Mount Connectors a/b/d Code
Application
Industrial
Contacts
4/5/6/8/12/17 Pin
Rated current
6/4/2/1.5/0.5A
Rated voltage
30/48/60V
Wire gauge
AWG20/22/24/26
Temperature range
-45℃ to +125℃
Waterproof rate
IP67
Mating cycles
≥100 times
Salt Mist
48h

Packaging and delivery

Selling Units
Single item
Single package size
16X11X10 cm
Single gross weight
0.5 kg

Lead time
