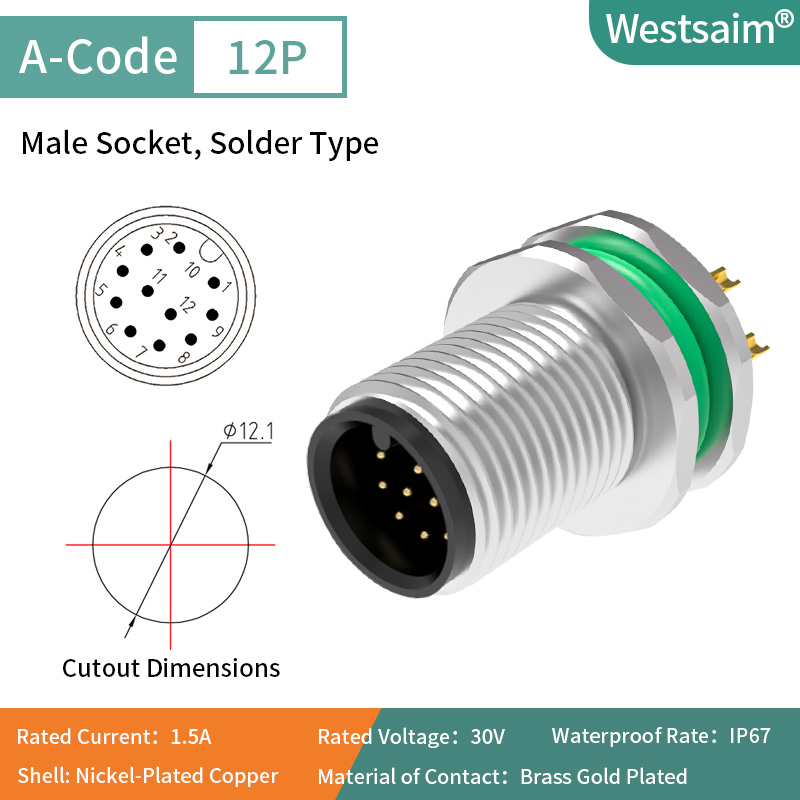

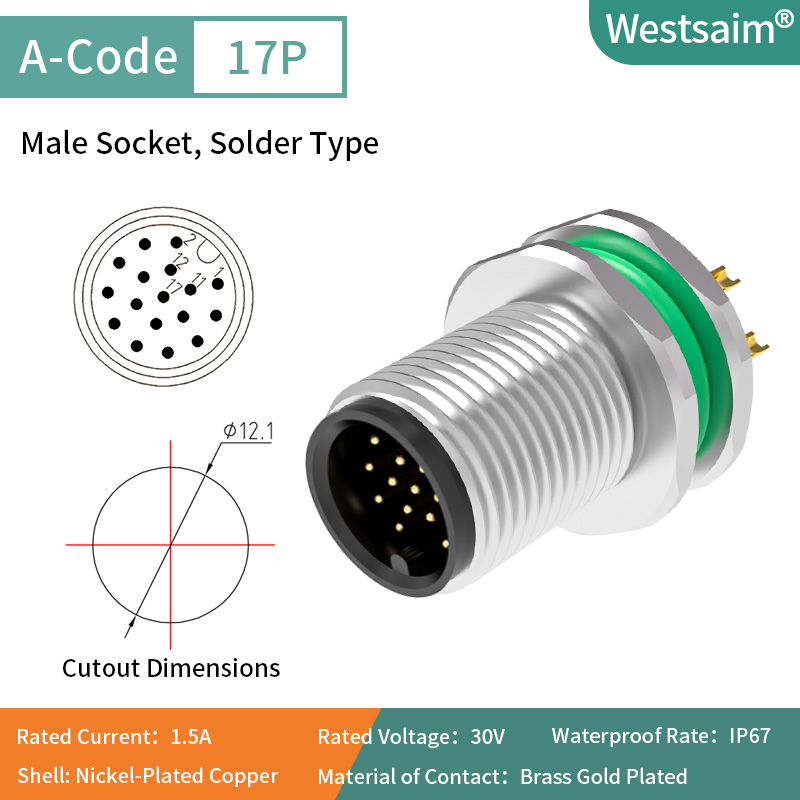

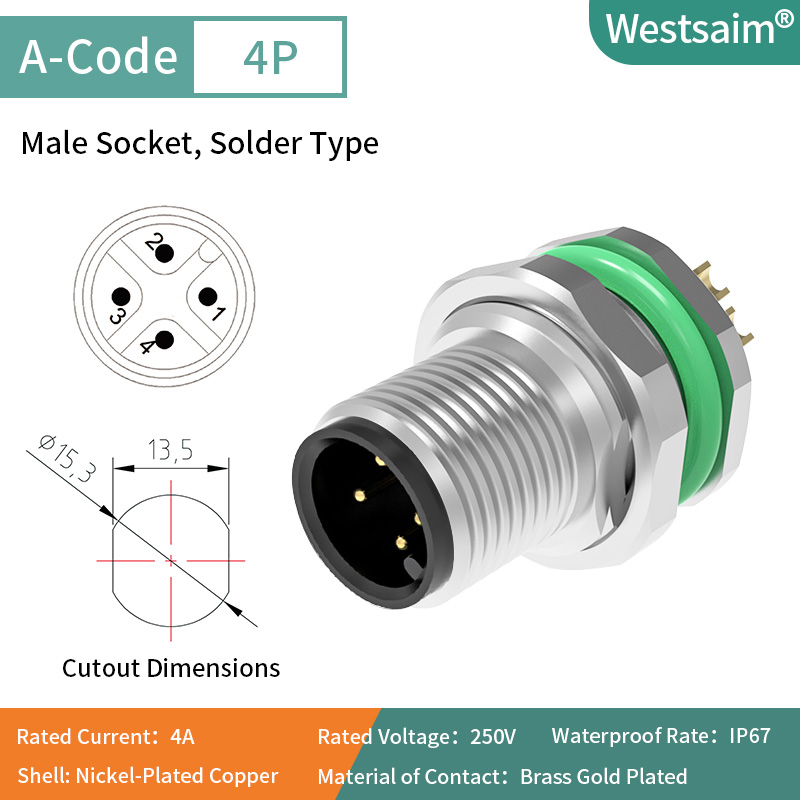

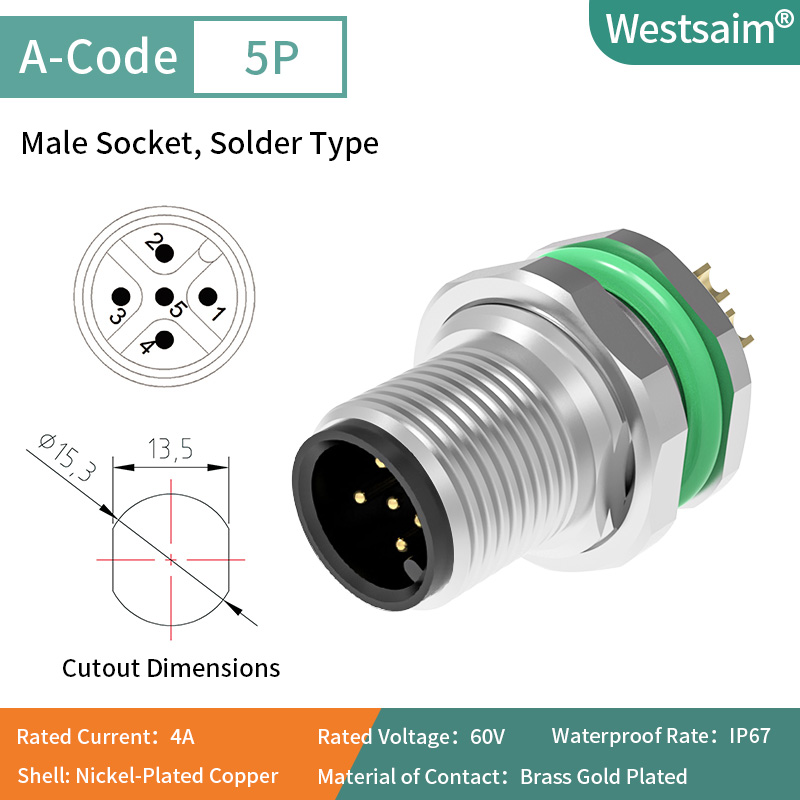

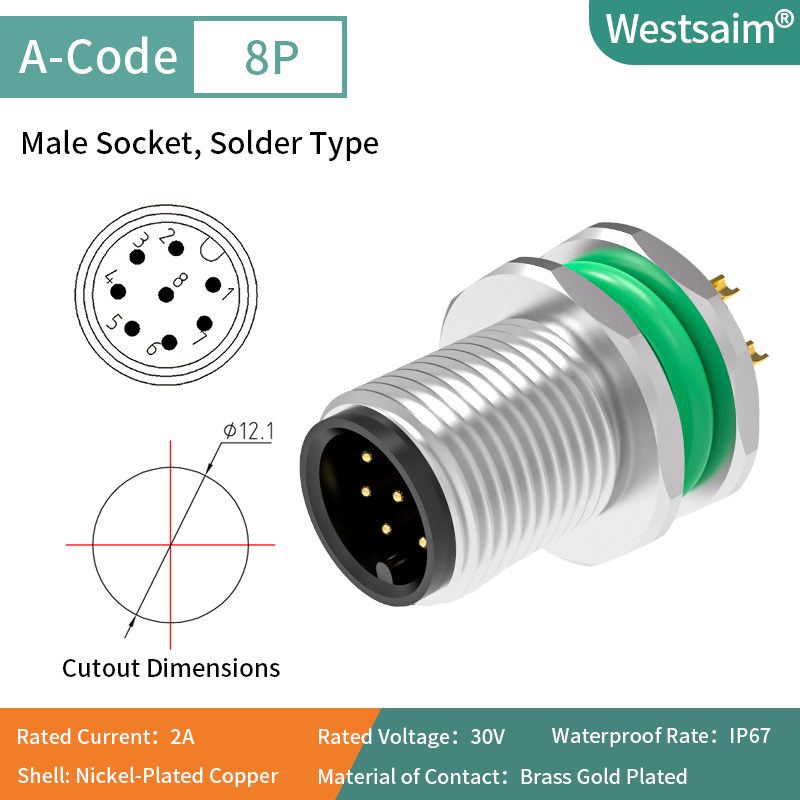

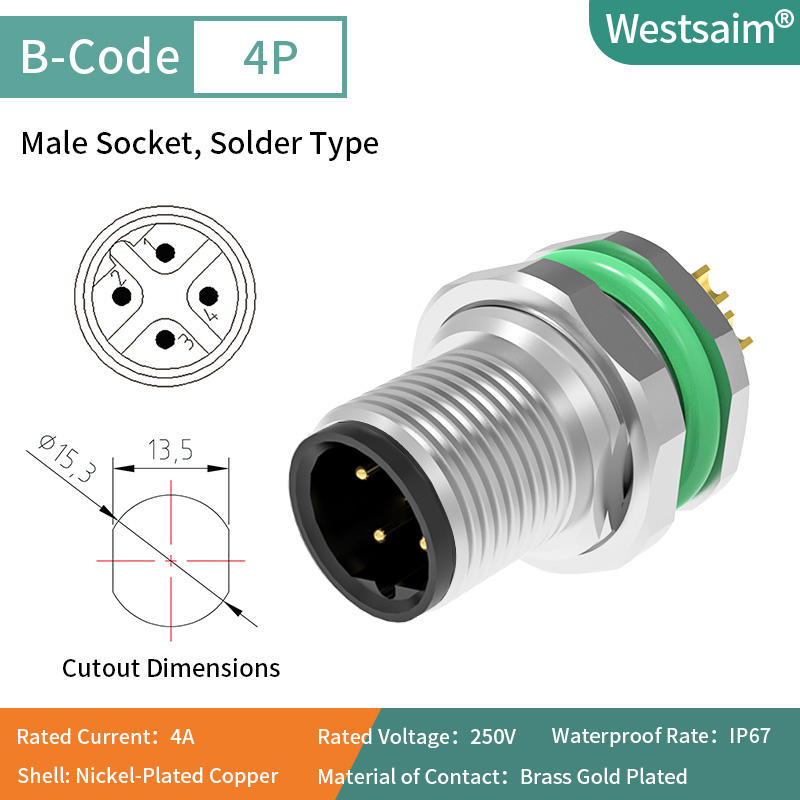

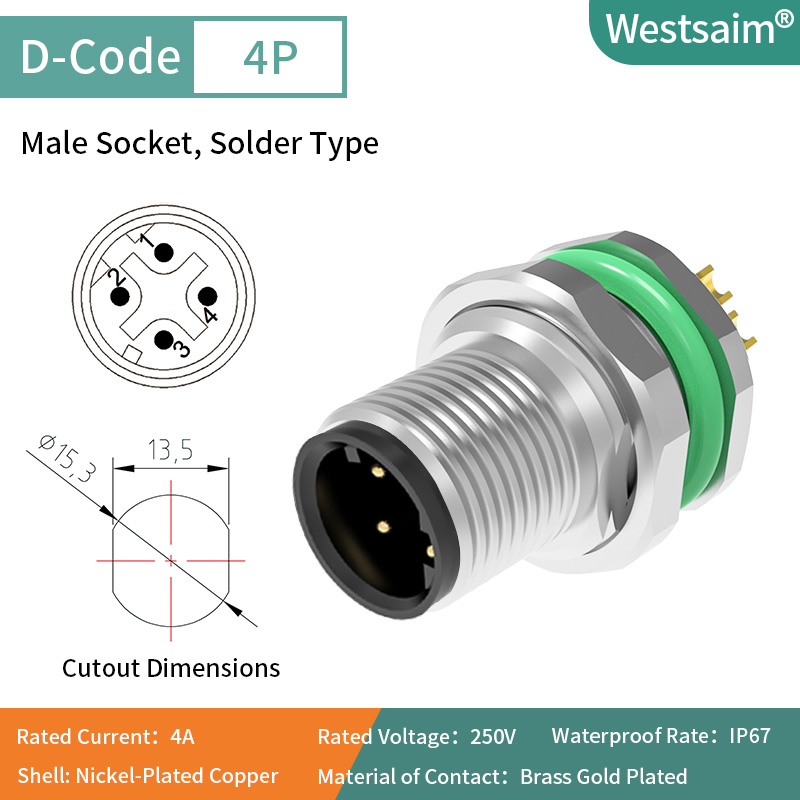

M12 Panel Mount Connectors Front Locking Solder Type A B D Code Female Male Socket 2-17Pins Rear Mount Receptacle
See reviewsCertificates:RoHS
Attributes
AutomotiveApplication
Waterproof ConnectorType
1.5A, 2 A, 4 ARated Current
30V/60V/250VRated Voltage
IP68/IP67IP Level
Brass Gold PlatedContact Material
Place of Origin:Guangdong, China
Model Number:M12-L-5P
Brand Name:Westsaim
Gender:Male/Female
Housing Material:Brass Nickel Plated
Shape:Round
Item name:M12 Panel Mount Connectors Front Locking Solder Type
Contacts:2-17 Pin
Rated current:1.5/2/4A
Rated voltage:30/60/250V
Wire gauge:22-26AWG
Temperature range:-25℃ to +85℃
Waterproof rate:IP68/IP67
Mating cycles:≥100 times
Salt Mist:48h
Key attributes
Application
Automotive
Type
Waterproof Connector
Rated Current
1.5A, 2 A, 4 A
Rated Voltage
30V/60V/250V
IP Level
IP68/IP67
Contact Material
Brass Gold Plated
Housing Material
Brass Nickel Plated
Gender
Male/Female
Shape
Round
Model Number
M12-L-5P
Brand Name
Westsaim
Place of Origin
Guangdong, China
Item name
M12 Panel Mount Connectors Front Locking Solder Type
Application
Industrial
Contacts
2-17 Pin
Rated current
1.5/2/4A
Rated voltage
30/60/250V
Wire gauge
22-26AWG
Temperature range
-25℃ to +85℃
Waterproof rate
IP68/IP67
Mating cycles
≥100 times
Salt Mist
48h
Packaging and delivery
Selling Units
Single item
Package size per batch
16X11X10 cm
Gross weight per batch
0.500 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Lower priced than similar
Minimum order quantity: 5 pieces
$136-440
Sample price: $4.50
*Taxes and import charges will be calculated at checkout
Variations
Select nowColor: M12-A-3P male M12*1.0
+44
Number of Cores: Rear Mount Solder Type
Rear Mount Solder Type
Pins
2-17pins
