Attributes
8000, 2500table size
8200table travel (x) (mm)
3500table travel (y) (mm)
2no. of spindles
100weight (t)
1200table travel (z) (mm)
repeatability (x/y/z) (mm):±0.014
max. table load(kg):38000
min. time of tool change(s):1
place of origin:Jiangsu, China
spindle taper:BT50
type:Gantry
dimension(l*w*h):20000*6900*5400
cnc control system:GSK
positioning accuracy:±0.02
range of spindle speed:1 - 8000 r.p.m
tool magazine capacity:1
key selling points:High-Accuracy
warranty:1 Year
brand name:Minnuo
voltage:customizable
machinery test report:Provided
video outgoing-inspection:Provided
machining capacity:Heavy Duty
rapid feed speed:1 - 4000 mm/min

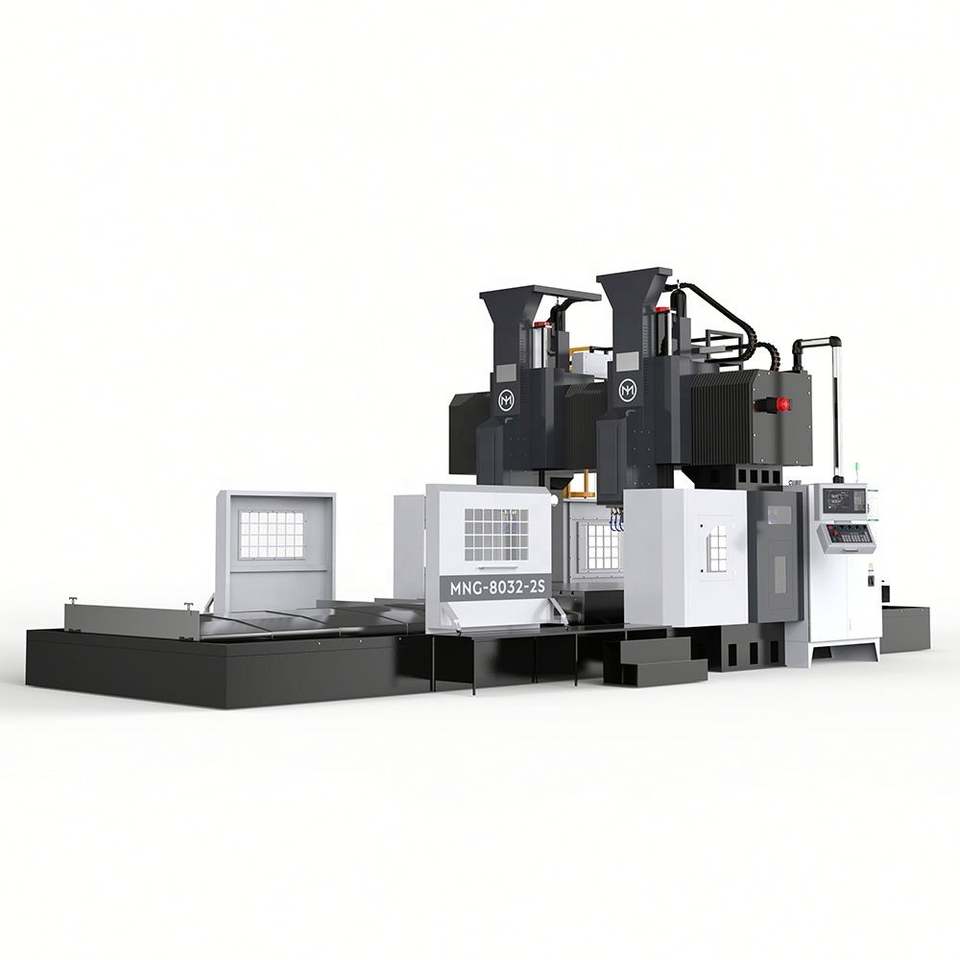

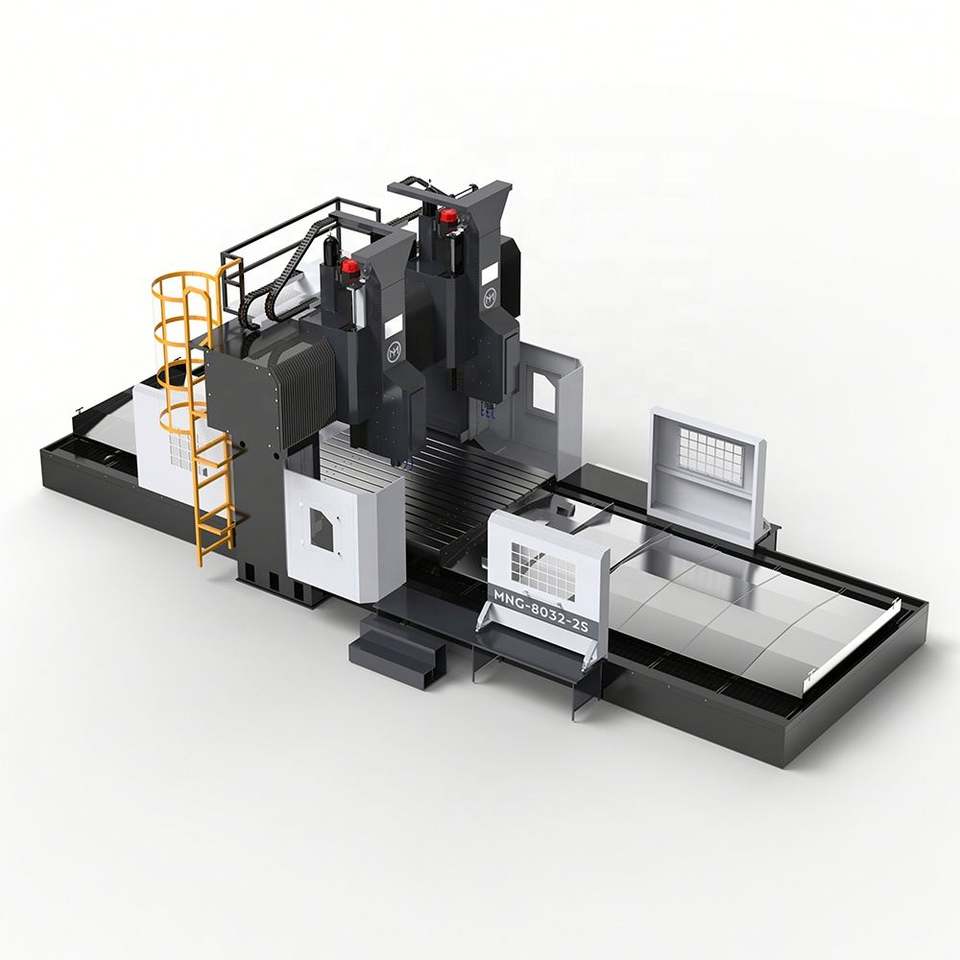

Product name:Large Format 5 Axis Gantry Type Machining Center MNG-8032-2S
CNC or Not:CNC Systemn
Controlling Mode:Fanuc Mitsubishi Siemens Gsk System
Spindle Speed:6000rpm
Tool Changer:ATC 24 Tools Changer
T Slot:28X200X11mm
Power(W):22/26KW
Guideways:Taiwan Hiwin Linear Guideways
Surface Treatment:High Temperature Quenching
Color:Customer's Requirement
Selling Units:Single item
