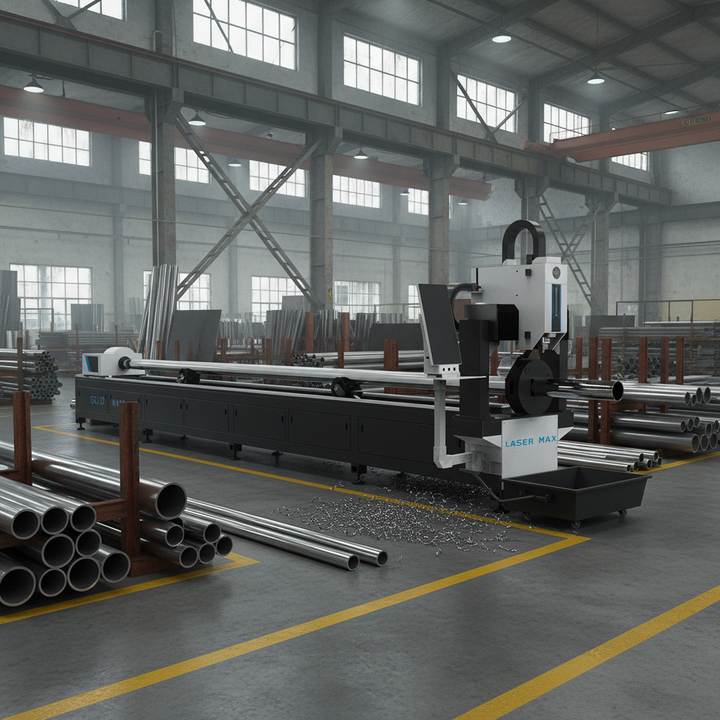

LM6012TA 1500W Fiber Laser Cutting Machine Tube Cutter for Round Square Pipes up to 120mm, ±0.03mm Accuracy
Store rating:4.8
(176 reviews)#1 most popular in Laser Cutting Machines Beckhoff Control SystemComplies with EU standards
Complies with EU standards
Attributes
Carbon Steel, Stainless Steel, AluminumApplicable Material
Fiber Laserlaser type
Yescnc or not
1500 WLaser Power
Carbon Steel: ≤3.0mm | Stainless Steel: ≤2.5mm | Acutting thickness
Metal Pipes & Tubesproducts handled
place of origin:Shandong, China
condition:New
Key Selling Points:High-Speed Piercing Technology
warranty:3 Years
brand name:Laser Max
configuration:1500W laser & tube CNC
Control Software:TubeCut Pro
control system brand:Beckhoff TwinCAT
cooling mode:Water-Cooling
Cutting Speed:Up to 100 m/min
Feature:Precise thin-wall tube cutting
graphic format supported:AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
guiderail brand:INA
laser head brand:Raytools(the other brand can be choose)
mode of operation:Continuous Wave
optical lens brand:II-VI
servo motor brand:Inovance
Weight:1650
Processable Materials:Stainless Steel, Carbon Steel, Aluminum
Tube Cross-Section Shapes:Round, Square, Rectangle, Custom Shape
Chuck Clamping Range - Round:6 - 120 mm (Diameter)
Max. Processing Pipe Length:6500 mm
Max. Pipe Weight:160 kg
Repeat Positioning Accuracy:±0.03 mm/m
Positioning Accuracy:±0.05 mm/m
Chuck Max. Rotation Speed:100 rpm
X-Axis Max. Speed:100 m/min
Machine Bed Structure:(Welded Steel Tube Bed
Service
Free replacement parts & online technical support
Custom design in 3 days
Custom sample in 7 days
Key attributes
Applicable Material
Carbon Steel, Stainless Steel, Aluminum
laser type
Fiber Laser
cnc or not
Yes
Laser Power
1500 W
cutting thickness
Carbon Steel: ≤3.0mm | Stainless Steel: ≤2.5mm | A
products handled
Metal Pipes & Tubes
control system brand
Beckhoff TwinCAT
configuration
1500W laser & tube CNC
Cutting Speed
Up to 100 m/min
Feature
Precise thin-wall tube cutting
Key Selling Points
High-Speed Piercing Technology
guiderail brand
INA
servo motor brand
Inovance
laser head brand
Raytools(the other brand can be choose)
cooling mode
Water-Cooling
Control Software
TubeCut Pro
graphic format supported
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
warranty
3 Years
condition
New
mode of operation
Continuous Wave
optical lens brand
II-VI
place of origin
Shandong, China
brand name
Laser Max
Weight
1650
Processable Materials
Stainless Steel, Carbon Steel, Aluminum
Tube Cross-Section Shapes
Round, Square, Rectangle, Custom Shape
Chuck Clamping Range - Round
6 - 120 mm (Diameter)
Max. Processing Pipe Length
6500 mm
Max. Pipe Weight
160 kg
Repeat Positioning Accuracy
±0.03 mm/m
Positioning Accuracy
±0.05 mm/m
Chuck Max. Rotation Speed
100 rpm
X-Axis Max. Speed
100 m/min
Machine Bed Structure
(Welded Steel Tube Bed
Packaging and delivery
Selling Units
Single item
Single package size
885X210X225 cm
Single gross weight
4000.000 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Minimum order quantity: 1 set
$12,999
Sample price: $15,000
Variations
Select nowcutting area: Pipe 6500mm x Dia.120mm
Pipe 6500mm x Dia.120mm
Laser Source Brand: Max
Max
model number: LM6012TS
LM6012TS
power(w)
1500 W
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
