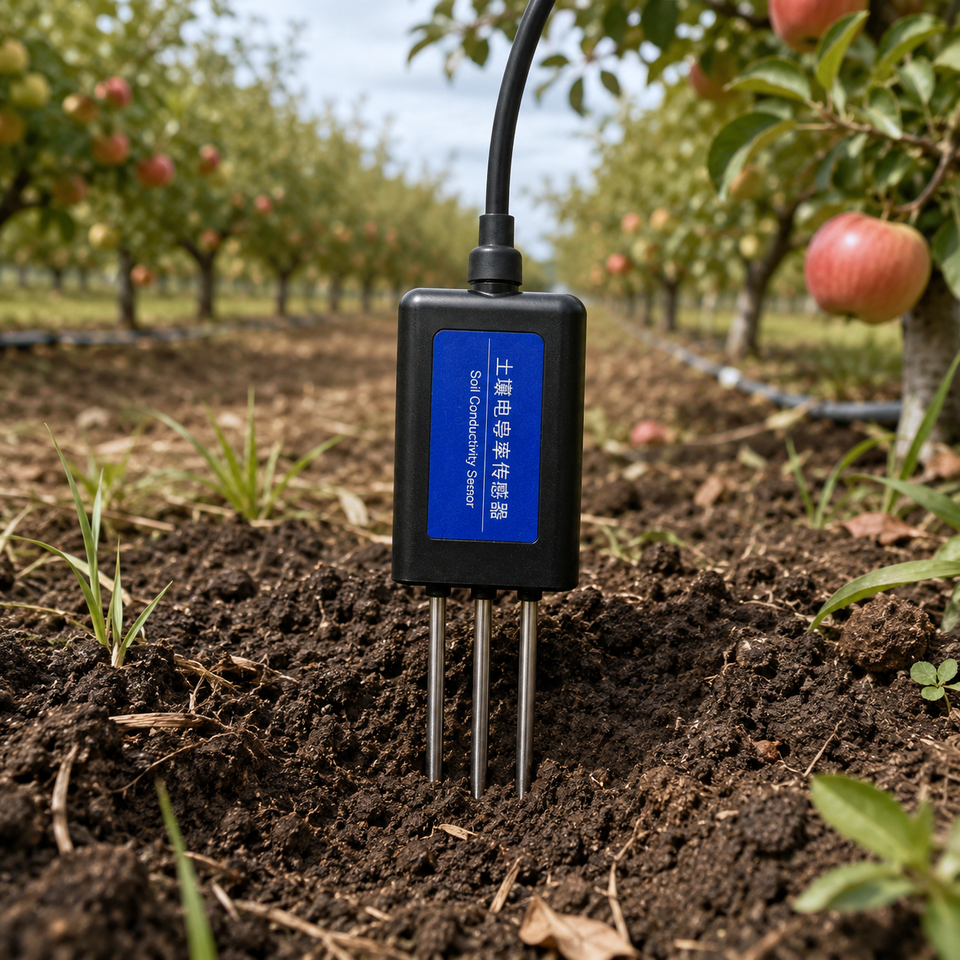

Integrated Soil Moisture Sensor EC Sensor Multch Dual Electrode 0-10000 uS/cm RS485 Modbus-RTU

No reviews yet
$65
1-9 pieces
$57
≥10 pieces

Quantity

Key attributes

Mounting Type

Plug-in / Buried installation

Manufacturer Part Number

AT-So-EC-485

Brand Name

Accutherm

Usage

Soil conductivity measurement, smart agriculture,

Output

RS485, Modbus-RTU

Description

RS485 Modbus-RTU soil electrical conductivity sens

Shipping
Select shipping
Item subtotal
$0.00
Shipping total
To be negotiated
Subtotal
$0.00

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Delivery via

Expect your order to be delivered before scheduled dates or receive a 5% delay compensation

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Key attributes

Mounting Type
Plug-in / Buried installation
Manufacturer Part Number
AT-So-EC-485
Brand Name
Accutherm
Usage
Soil conductivity measurement, smart agriculture,
Output
RS485, Modbus-RTU
Description
RS485 Modbus-RTU soil electrical conductivity sens
Place of Origin
Taiwan, China
Series
AT-So Series
Theory
Dual electrode pulse method
Brand
Accutherm
Amplifier Type
other
Voltage - Supply
12V , 24V DC
Output Type
RS485, Modbus-RTU
Current - Supply
other
Operating Temperature
other
Resolution (Bits)
1 uS/cm
Features
IP68 waterproof, vacuum-sealed, anti-corrosion, lo
Current - Supply (Max)
other
Packaging
1 pc/box, 1.0m cable included
Frequency
other
Output Configuration
other
Current
other
Voltage Rating
12V , 24V DC
Operating Force
other
Oxygen Range
other
Humidity Range
other
Size
Soil EC Sensor
Size / Dimension
144mm x 45.5mm x 15mm
Measuring Range
0~10000 uS/cm
Resolution
1 uS/cm
Interface
RS485 (Red +, Black -, Yellow A, Green B)
Technology
Modbus-RTU
Sensing Range
other
Current - Output (Max)
other
Bandwidth
other
Function
Measure soil electrical conductivity (EC)
Acceleration Range
other
Sensitivity (LSB/g)
other
Sensitivity (mV/g)
other
Sensitivity (LSB/(°/s))
other
Sensitivity (mV/°/s)
other
Sensing Distance
other
Current - Output
other
Power - Rated
150mW
Voltage - Output Difference (Typ) @ Distance
other
Voltage - Output (Typ) @ Distance
other
Voltage - Max
other
Voltage - DC Reverse (Vr) (Max)
other
Power - Max
other
Sensing Object
other
Sensing Light
other
Resistance
other
Resistance Tolerance
other
Sensing Temperature - Local
other
Sensing Temperature - Remote
other
Current Rating - AC
other
Current Rating - DC
other
Tolerance
±3%
Voltage - Rated
12V , 24V DC
Flow Sensor Type
other
Voltage - Input
9V , 24V DC
Application
Smart agriculture, greenhouse cultivation, soil ra
Output Function
RS485 Modbus-RTU digital output
Mfg Date Code
2026
Cross Reference
none
Measurement Principle
Dual electrode pulse method
Measurement Range
0 10000 uS/cm
Response Time
< 1 second
Communication Protocol
Modbus-RTU
Interface
RS485
Baud Rate
9600 bps default; supports 2400/4800/19200
Probe Diameter
3mm, stainless steel
Cable Length
1.0m standard; customizable
Power Consumption
150mW
Note
Not suitable for saline or sandy soil without recalibration

Packaging and delivery

Selling Units
Single item
Single package size
14.4X4.55X1.5 cm
Single gross weight
5.0 kg

Lead time
