Attributes
G53CModel Number
ONUType
HOSECOMBrand Name
Guangdong, ChinaPlace of Origin
FTTHUse
2 YearWarranty Time
Network:Wired LAN, TCP, Ip, CATV, XPon
Port:RJ45
Power Source:DC 12v
Connector Type:APC

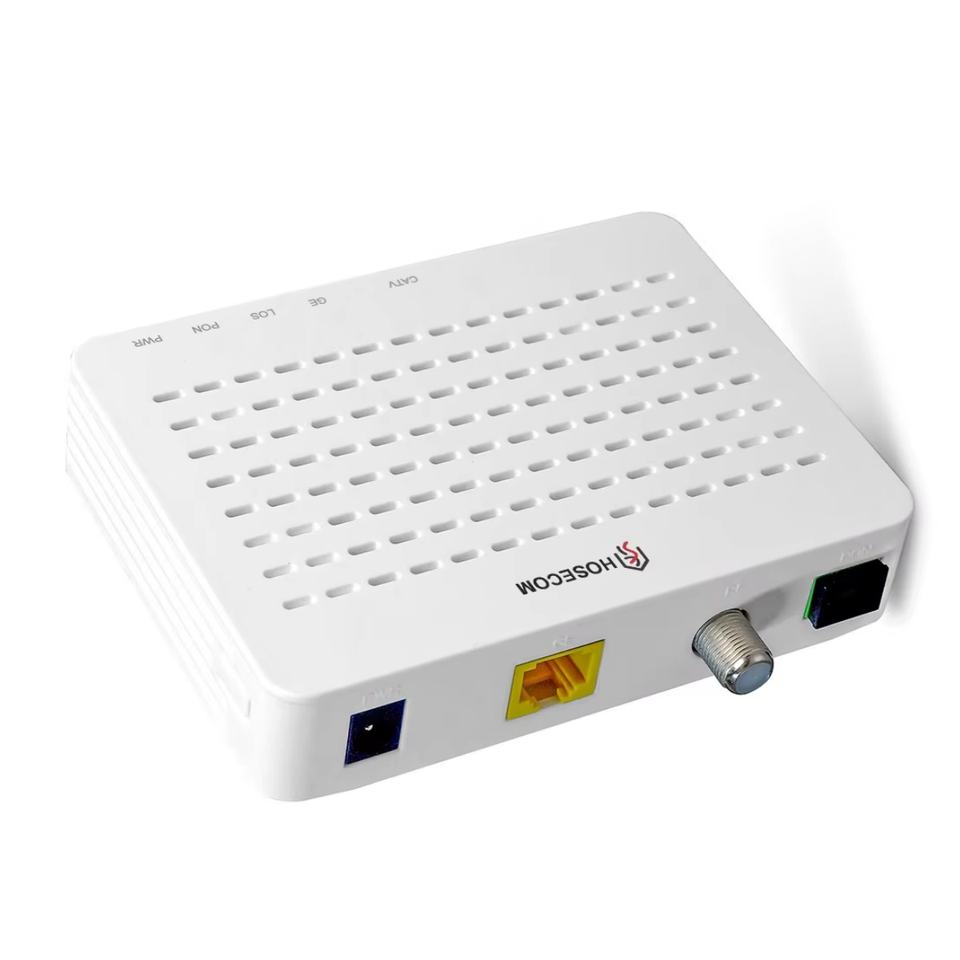

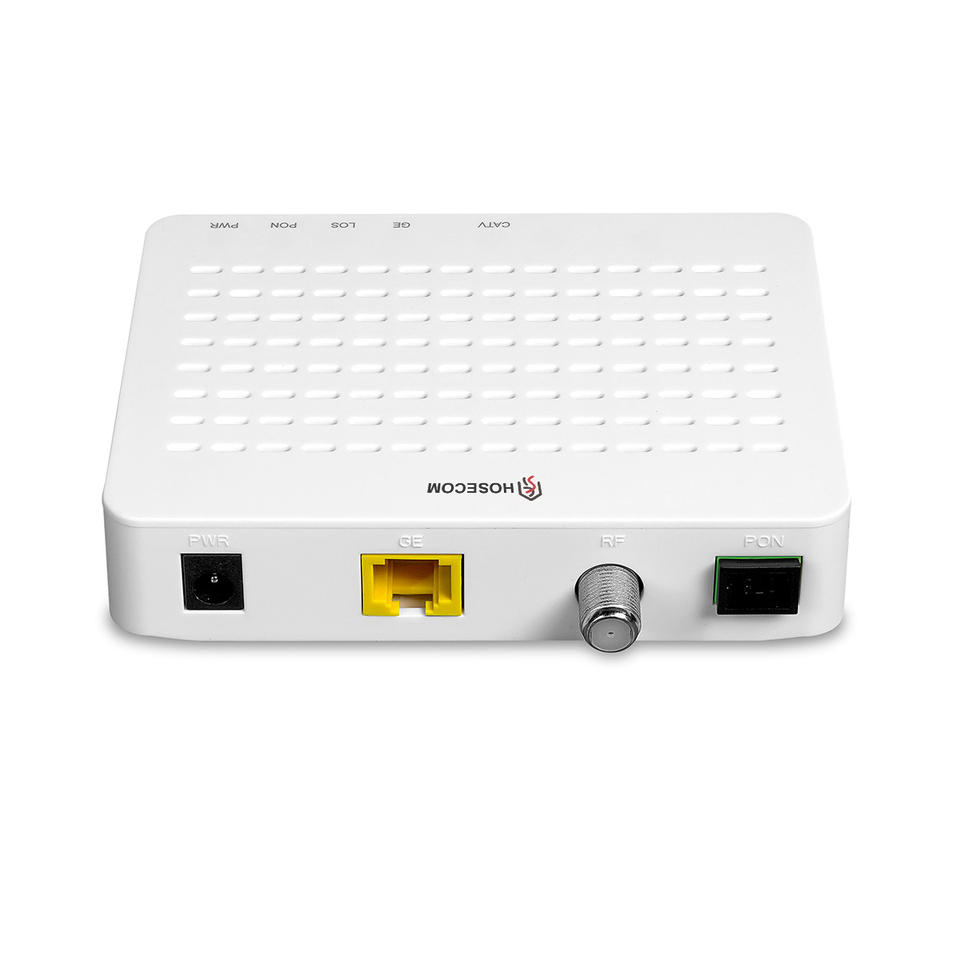

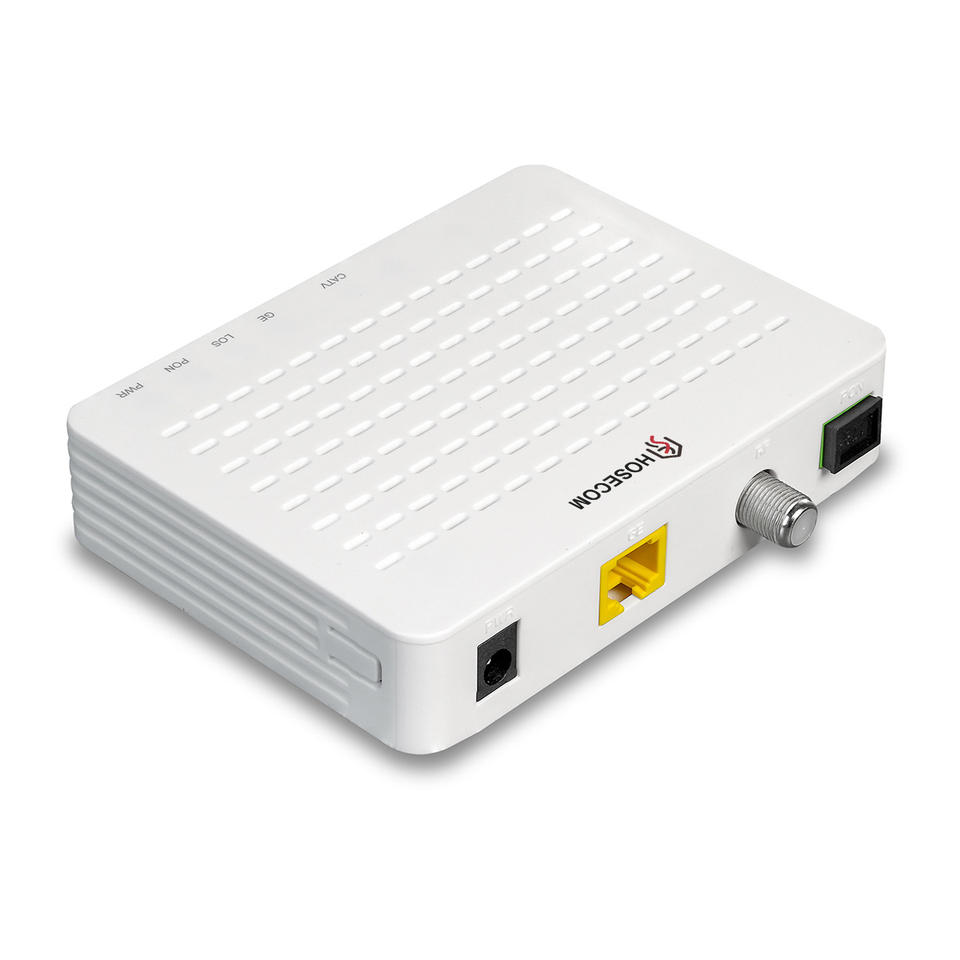

Product name:Universal XPON ONU with CATV Port, GPON/EPON Adaptive, 1GE

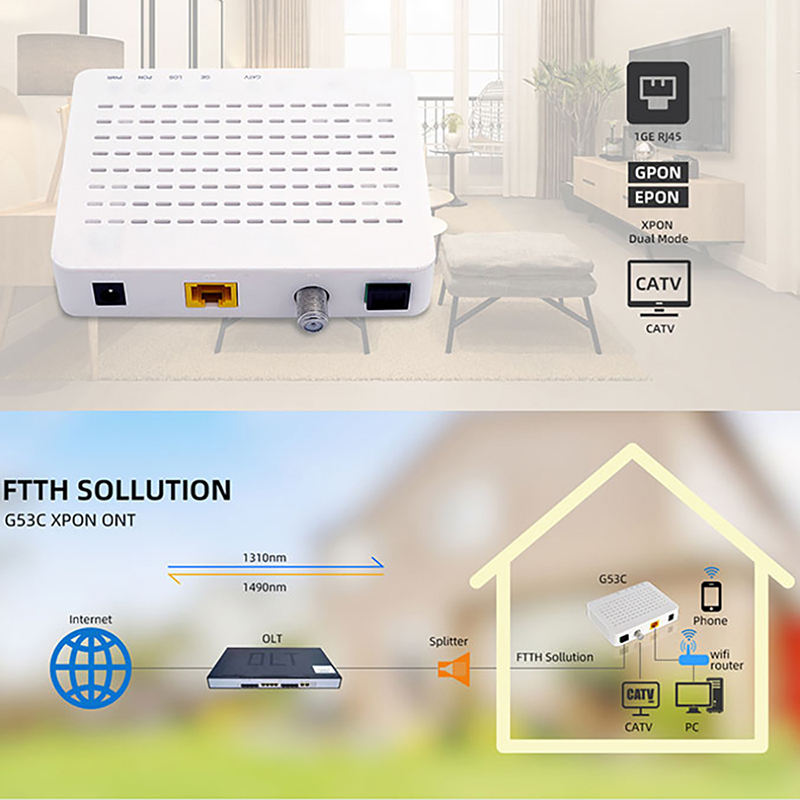

Use:FTTH
Application:FTTH PON CATV
Color:White
Work model:GPon EPon adaptive
Power:DC 12V/1.5A
Working wavelength:PON:TX1310,RX1490; CATV:1150~1600
The light emitting power:1 ~ +4(xPON)
Transmission distance:0~20km
Transmission rate:GPON: Up 1.244Gbps;Down 2.488Gbps EPON: Up 1.244Gbps;Down 1.244Gbps
The light receiving sensitivity:≥ -27dBm
Optical fiber connector:SC/APC (Optional SC/APC)
CATV optical power range:+2~-18dBm
CATV optical reflection loss:≥45dB
CATV responsivity:≥0.9 @1550nm
Reflection loss:≥14( 75Ω)
The user side Ethernet ports:1GE
Weight:0.105KG

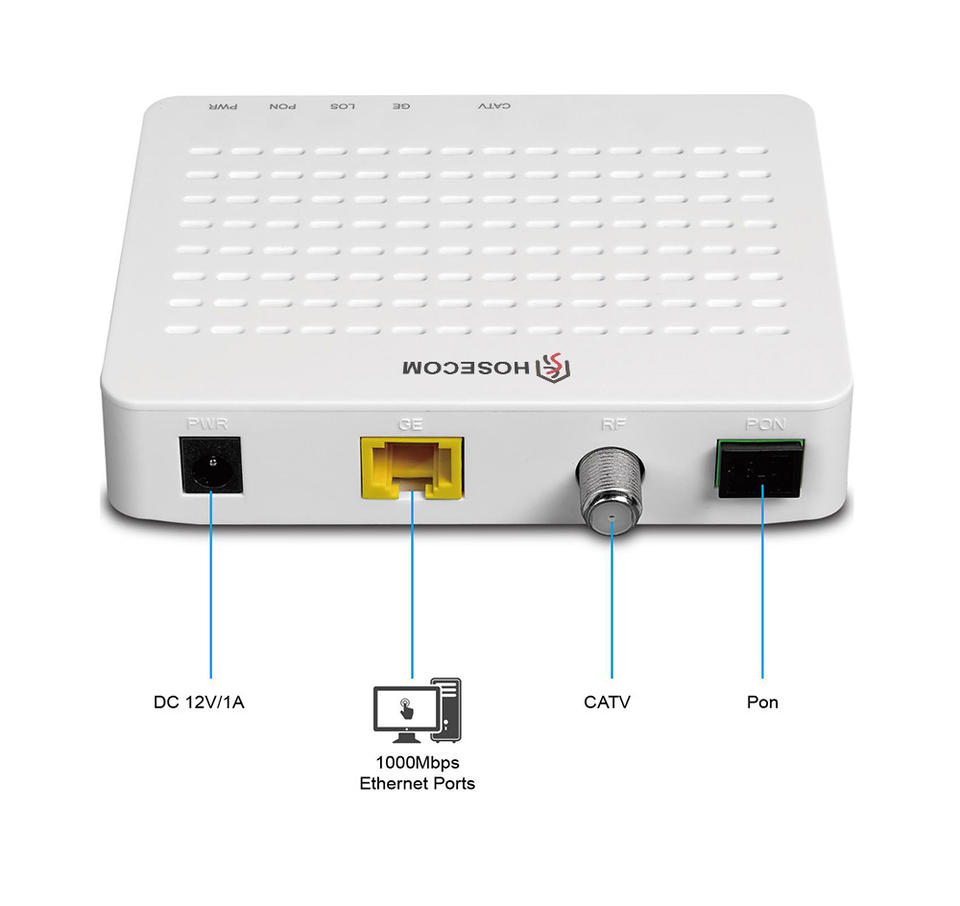

Ports:1*GE+CATV
Selling Units:Single item
Single package size:13X10X9 cm
Single gross weight:0.300 kg
