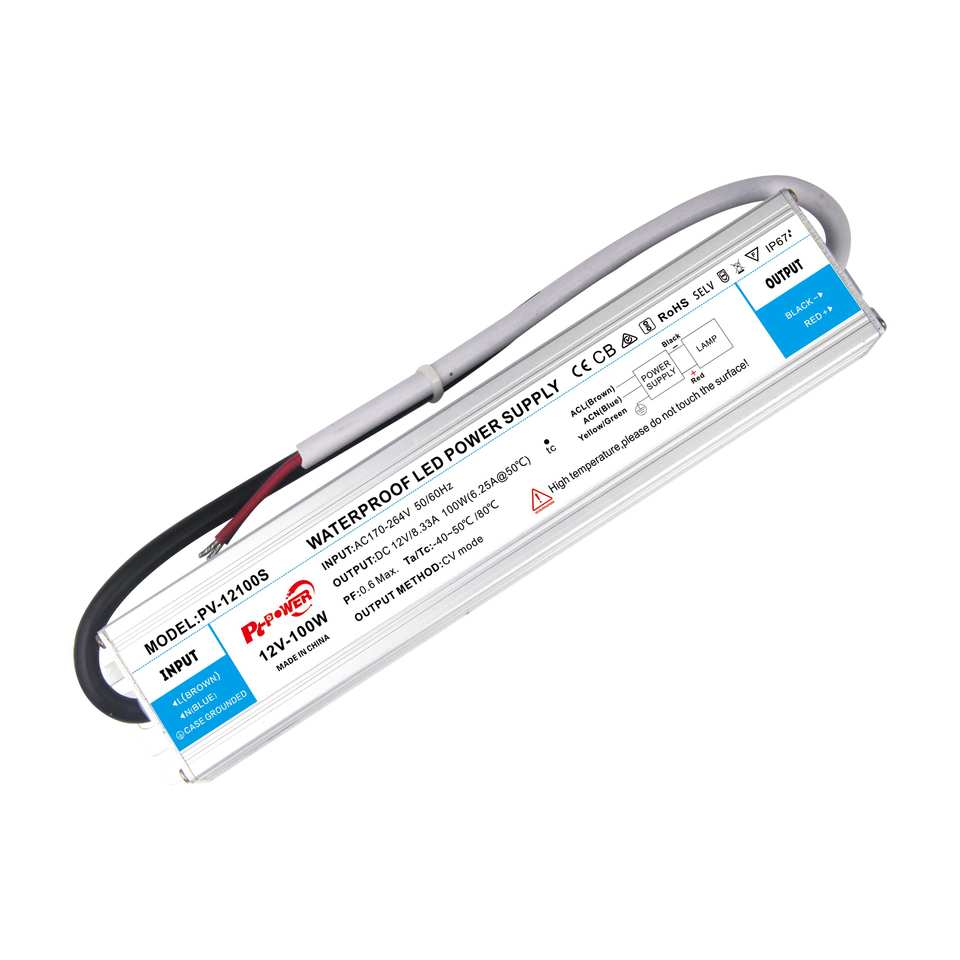

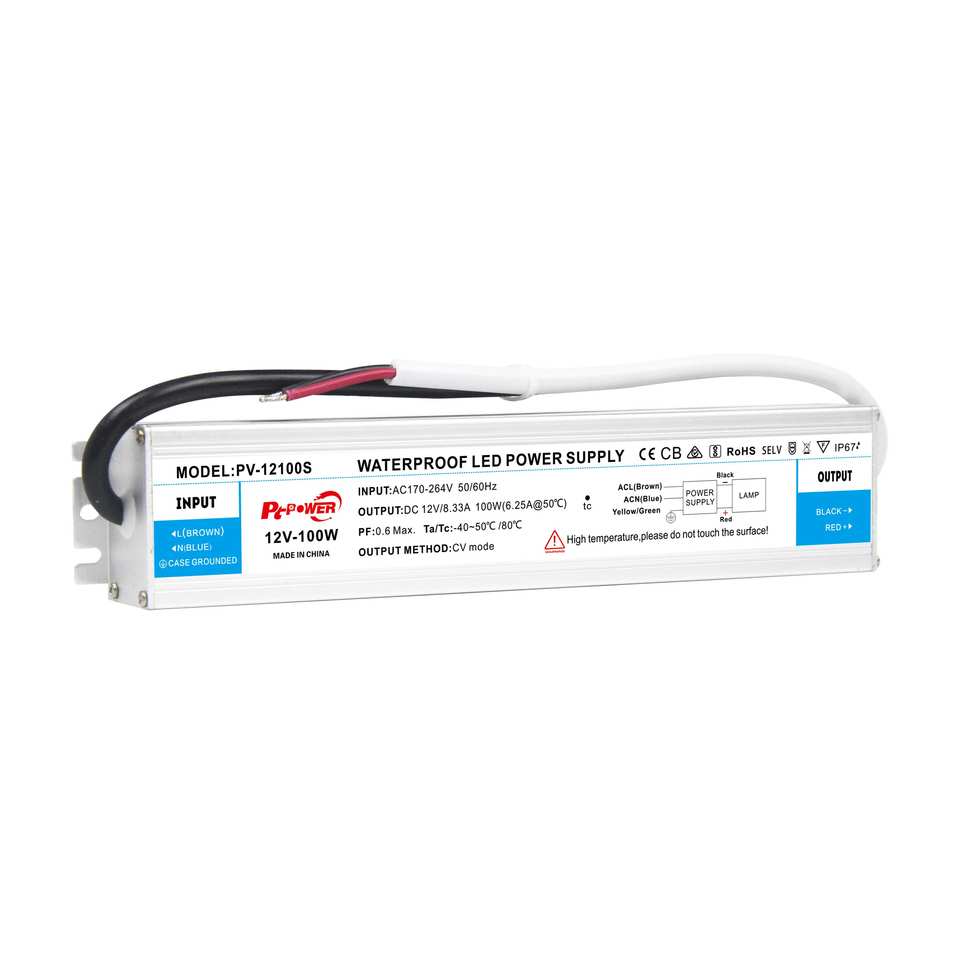

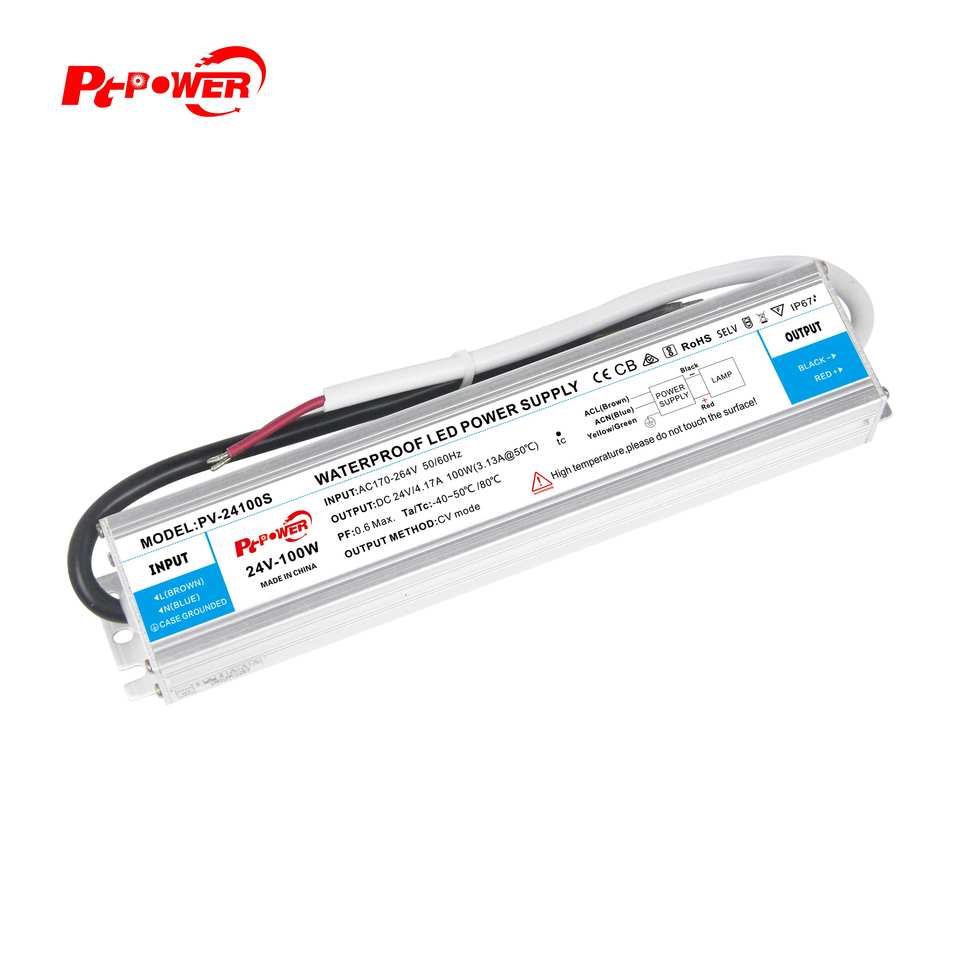

100W IP67 Waterproof Constant Voltage EMC LED Strip Driver 170-264VAC-DC 12V 24V Outdoor Advertising Light Box LED Power Supply
No reviews yet
PTPOWER INTERNATIONAL LIMITED
HK1 yr on Alibaba.com
4.9/5.0(4 reviews)Response Time ≤ 2hOn-time delivery rate ≥ 100%
Attributes
Led Lighting, Outdoor LightingApplication
AC170-264VInput Voltage
100WOutput Power
0~8.33A, 0~4.17AOutput Current
IP67 WaterproofType
AC-DCEnergy Transfer
Warranty(Year):3-Year
Place of Origin:Guangdong, China
Model Number:PV-12100S/PV-24100S
Brand Name:Pt POWER
Case Material:Aluminum
Dimming:Non-dimmable
Dimming Mode:Non-dimmable
Efficiency:≥86%
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Frequency:50~60 Hz
Output Type:Single
Product Weight（kg）:0.5
Topology:Ac-Dc Converter
IP Rate:IP67 Waterproof
Certification:CE/CB/FCC/RoHS
OEM:Yes
ODM:Yes
Size:230*42*30mm(L*W*H)
Working temperature:-40°C~+70°C
EMC Standard:EN55032,EN61000-3-2,EN61000-3-3,EN55024
Safety standard:EN61347-1,EN61347-2-13
Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Protection:Short circuit, overload protection
Key attributes
Application
Led Lighting, Outdoor Lighting
Input Voltage
AC170-264V
Output Power
100W
Output Current
0~8.33A, 0~4.17A
Type
IP67 Waterproof
Energy Transfer
AC-DC
Output Type
Single
Dimming Mode
Non-dimmable
Dimming
Non-dimmable
Efficiency
≥86%
Topology
Ac-Dc Converter
Case Material
Aluminum
Warranty(Year)
3-Year
Lighting solutions service
Lighting And Circuitry Design, Project Installation, Other
Place of Origin
Guangdong, China
Model Number
PV-12100S/PV-24100S
Brand Name
Pt POWER
Output Frequency
50~60 Hz
Product Weight（kg）
0.5
Type
Constant Voltage EMC LED Driver
IP Rate
IP67 Waterproof
Certification
CE/CB/FCC/RoHS
OEM
Yes
ODM
Yes
Size
230*42*30mm(L*W*H)
Working temperature
-40°C~+70°C
EMC Standard
EN55032,EN61000-3-2,EN61000-3-3,EN55024
Safety standard
EN61347-1,EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Protection
Short circuit, overload protection
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 500 pieces)
Customized packaging(+ from /Min. order: 500 pieces)
Graphic customization(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
Customizable
2 - 499 pieces
$750
500 - 999 pieces
$7
>= 1,000 pieces
$650
Variations
Select nowInput Voltage(V): AC170-264V
AC170-264V
Lamp Power(W): 100W
100W
Output Voltage
12 V
24 V
Customization options
Customized logo (Min. order: 500 pieces)
Customized packaging (Min. order: 500 pieces)
Graphic customization (Min. order: 500 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
