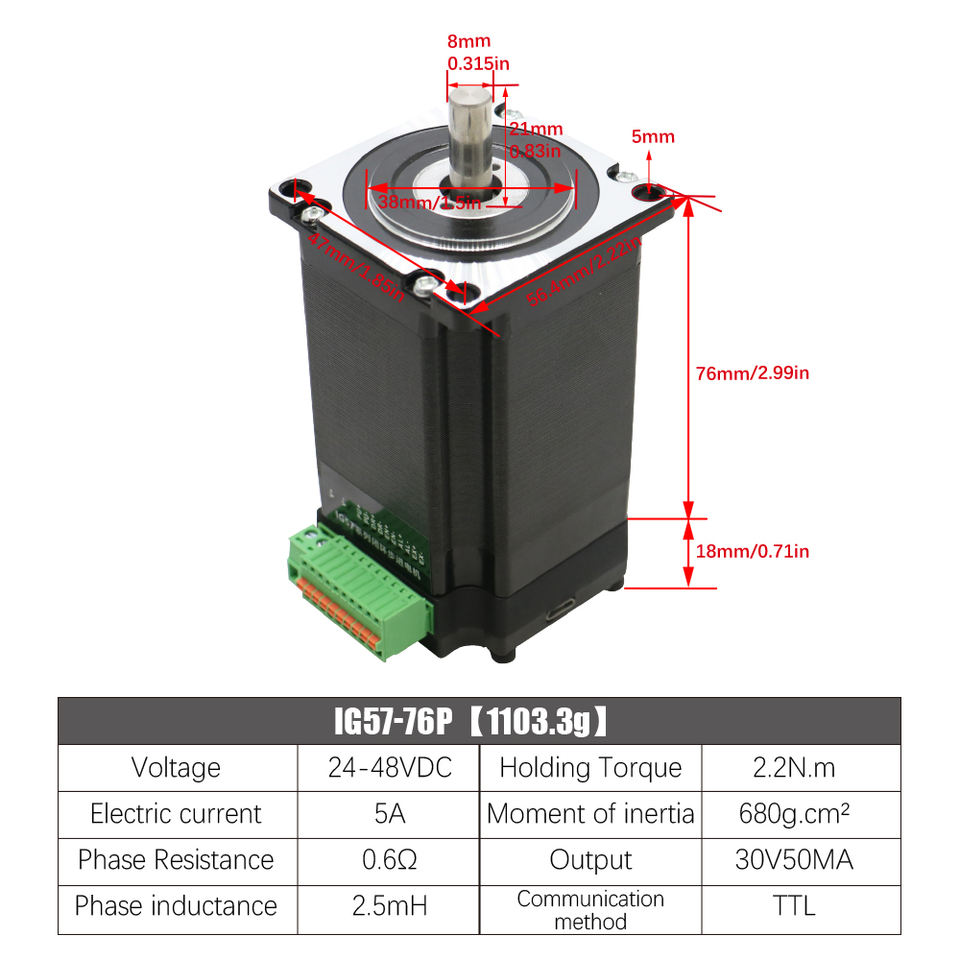

IG57 DC24-48V 5A 1.5/2.2/2.8/3.2Nm Nema 23 Hybrid Integrated Driver 2-Phase TTL Communication 8mm Shaft Diameter
No reviews yet
Attributes
NEMA 23Nema Frame Size
24-48VDCVoltage
HybridType
2Phase
8 mmShaft Diameter
1.5/2.2/2.8/3.2nmTorque
Warranty:Other
Place of Origin:Zhejiang, China
Model Number:IG57-56/76/100/112P
Brand Name:HLTNC
Product name:nema 23 Integrated Stepper Motor
Holding Torque:1.5/2.2/2.8/3.2N.m
Voltage:DC24-48V
Model number:IG57-56/76/100/112P
Electric current:5A
Phase Resisitance:0.4/0.6/0.7/0.8Ω
Moment of ineertia:480/680/780/880g.c㎡
Output:30V50MA
Communication method:TTL
Key attributes
Nema Frame Size
NEMA 23
Voltage
24-48VDC
Type
Hybrid
Phase
2
Shaft Diameter
8 mm(0.31in)
Torque
1.5/2.2/2.8/3.2nm
Warranty
Other
Place of Origin
Zhejiang, China
Model Number
IG57-56/76/100/112P
Brand Name
HLTNC
Product name
nema 23 Integrated Stepper Motor
Holding Torque
1.5/2.2/2.8/3.2N.m
Voltage
DC24-48V
Model number
IG57-56/76/100/112P
Electric current
5A
Phase Resisitance
0.4/0.6/0.7/0.8Ω
Moment of ineertia
480/680/780/880g.c㎡
Output
30V50MA
Communication method
TTL
Packaging and delivery
Selling Units
Single item
Single package size
30.0X20.0X20.0 cm
Single gross weight
1.100 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$1920-3050
Variations
Select nowHolding Torque: 1.5nm(without RS485),8mm
1.5nm(without RS485),8mm
1.5nm(with RS485),8mm
1.5nm(without RS485),5mm
1.5nm(with RS485),5mm
2.2nm(without RS485),8mm
2.2nm(with RS485),8mm
2.2nm(without RS485),5mm
+9
Step Angle(degrees)
1.8°
